CreatBot Filaments

CreatBot Industrial-grade materials and High performance polymer materials are manufactured by BASF and other material leaders, deliver
outstanding results for CreatBot printers. CreatBot Filaments are common polymers in several industries and cover the majority of the technical applications.

The Open Filament Program allows you to use materials whatever you favorite or where easy to purchase. We provide same technical support for all filament in the market, including parameter guidance, material testing, and printing services. We can explore your application with your material toghther!

Standard

Engineering grade

High performance grade

Support material


Standard


Engineering grade


High performance grade


Support material

Standard

PLA
PLA-CF
PETG
TPU 95A
PC
WAX

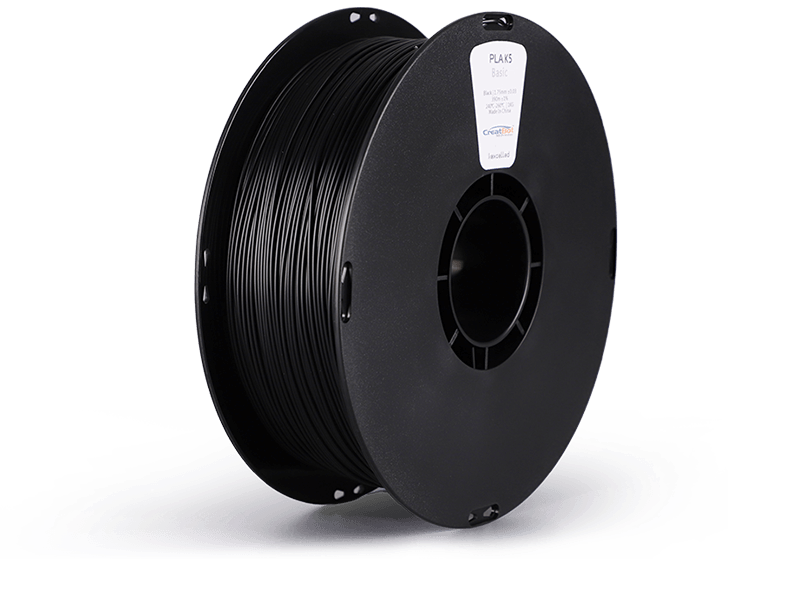

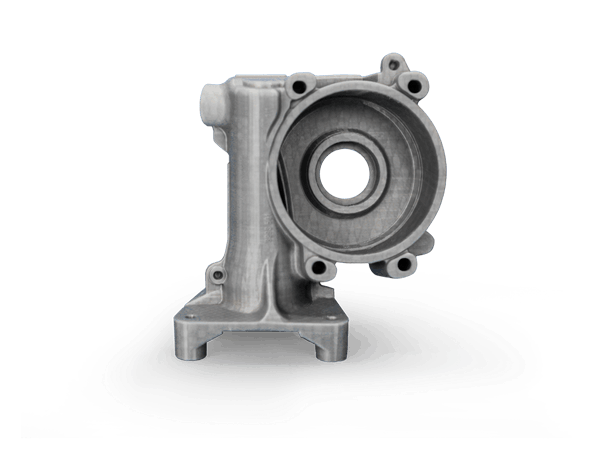

PLA

PLA (polylactic acid) is a degradable 3D printing material. It has excellent comprehensive performance, economic benefits, printing model surface is fine and smooth, and not easy to warp deformation. Widely used in the market for a variety of printers.

    Application:
  • Education and Research
  • Construction
  • Design Prototype
  • Consumer Electronics
  • Arts Design and Creative

Nozzle temperature(℃)
190℃ - 220℃

Bed temperature(℃)
40℃ - 60℃

Chamber temperature
Not required

Nozzle type
Brass nozzle

Print speed (mm/s)
40mm/s - 100mm/s

Cooling fan
ON

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

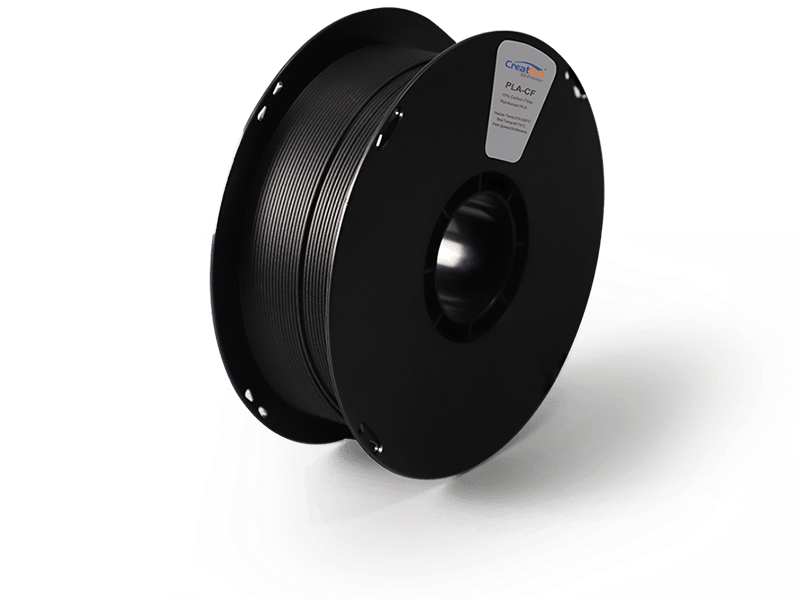

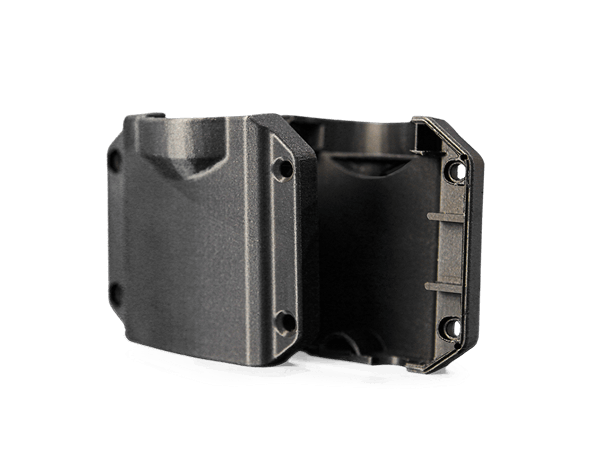

PLA-CF

PLA-CF is a high strength modified PLA carbon fiber reinforced 3D printing consumable. It strengthens the tensile strength and impact strength of the raw material, while improving the dimensional stability of the print and the surface quality of the print. It is widely used in prototyping, conceptual models, end-use components and models with higher performance requirements.

    Application:
  • Functional Prototype
  • Design Prototype
  • Industrial Components and Tooling
  • Injection/Molds
  • Jigs and Fixtures

Nozzle temperature(℃)
200℃ - 220℃

Bed temperature(℃)
40℃ - 60℃

Chamber temperature
Not required

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
30mm/s - 80mm/s

Cooling fan
ON

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

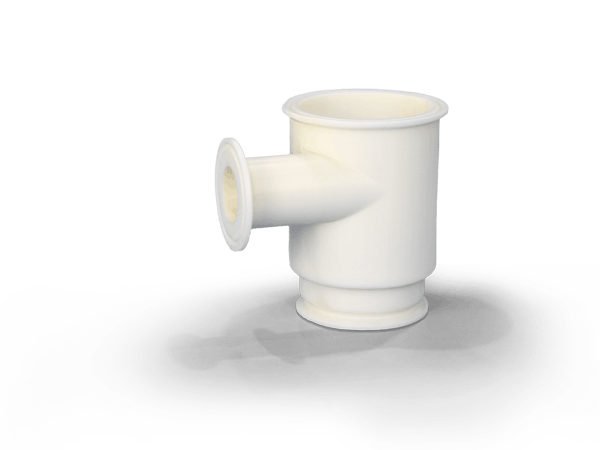

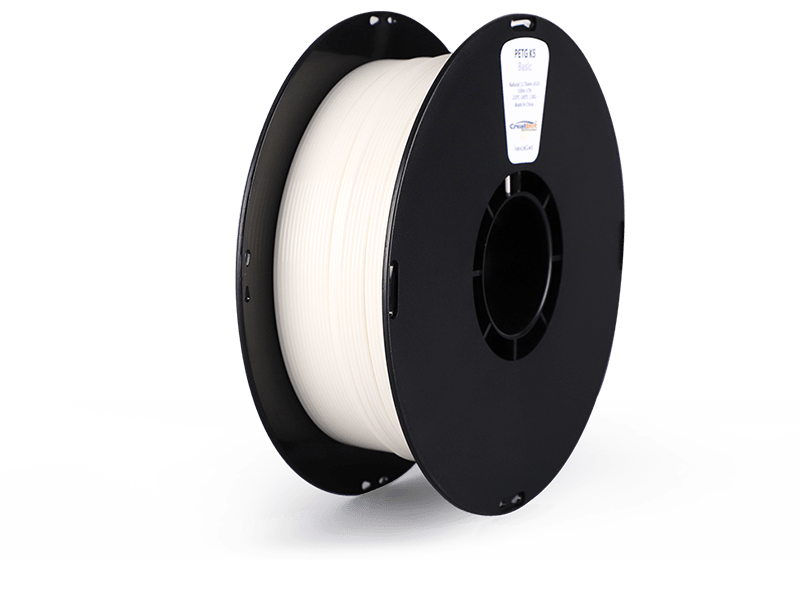

PETG

PETG (polyethylene terephthalate) is a copolymer modifier of ethylene glycol and PET. It is as easy to print as PLA. It has good toughness and chemical resistance, and the print has good layer adhesion. Suitable for printing all kinds of parts, can be used for mechanical parts, fixture, prototype design and so on.

    Application:
  • Design Prototype
  • Jigs and Fixtures
  • Transportation
  • Industrial Components and Tooling
  • Consumer Electronics

Nozzle temperature(℃)
230℃ - 250℃

Bed temperature(℃)
80℃

Chamber temperature
Not required

Nozzle type
Brass nozzle

Print speed (mm/s)
40mm/s - 100mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

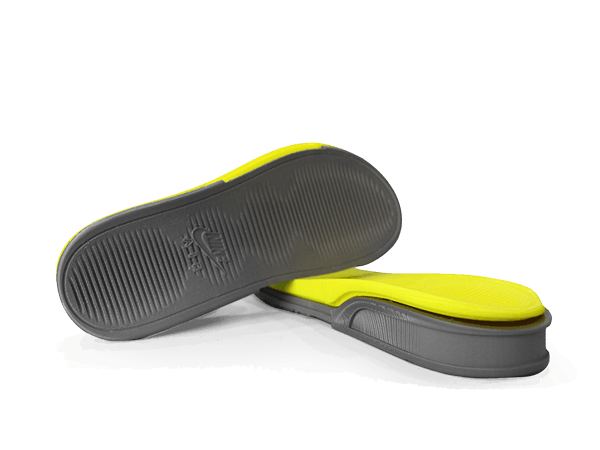

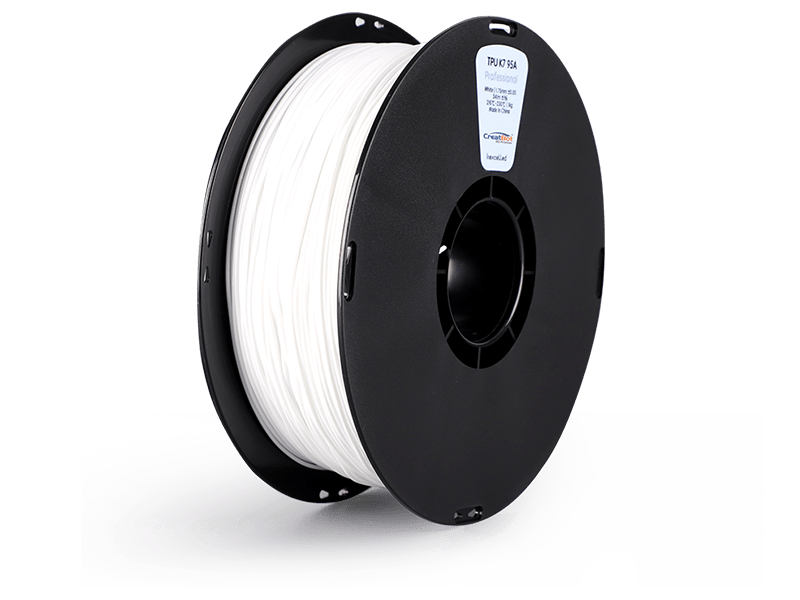

TPU95A

TPU-95A (thermoplastic polyurethane elastomer) is a flexible thermoplastic 3D printing material, which is a mature environmentally friendly material between rubber and plastic. It is flexible and has a wide hardness range, suitable for printing models for shock absorption, shock absorption and soft touch.

    Application:
  • Insole
  • Pipes and Tubes
  • Jigs and Fixtures
  • Industrial Components and Tooling
  • End-Use Parts

Nozzle temperature(℃)
210℃ - 230℃

Bed temperature(℃)
0℃ - 45℃

Chamber temperature
Not required

Nozzle type
Brass nozzle

Print speed (mm/s)
25mm/s - 50mm/s

Cooling fan
ON

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

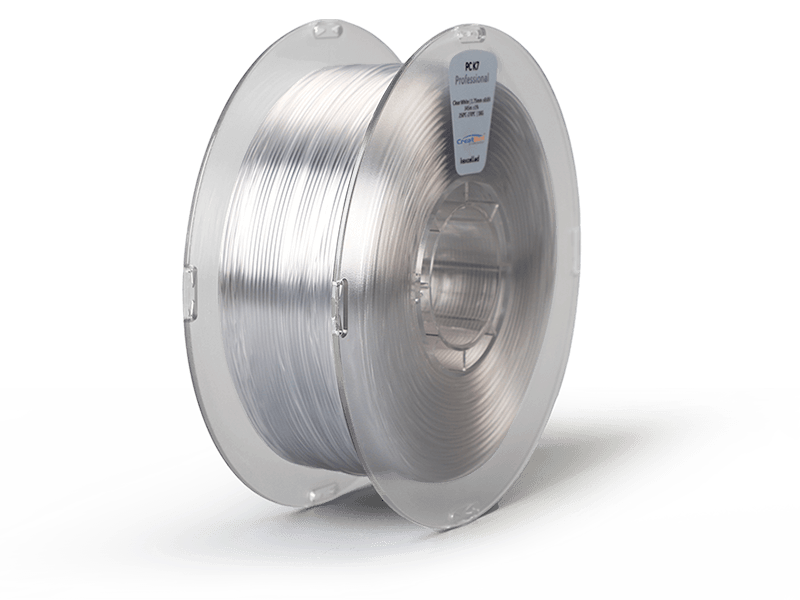

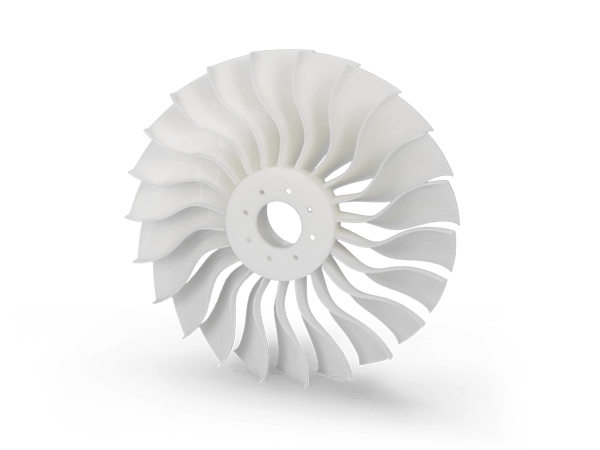

PC

PC (polycarbonate) is a solid transparent thermoplastic material. With the characteristics of high strength, high temperature resistance, impact resistance, bending resistance and other engineering plastics, can be used as final parts. Usually used in the production of shell parts, rigid parts and fixtures.

    Application:
  • Consumer Electronics
  • Spare Parts
  • Jigs and Fixtures
  • Automotive and Motorcycles
  • Industrial Equipment and Machinery

Nozzle temperature(℃)
250℃ - 290℃

Bed temperature(℃)
80℃ - 110℃

Chamber temperature(℃)
50℃

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
25mm/s - 80mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

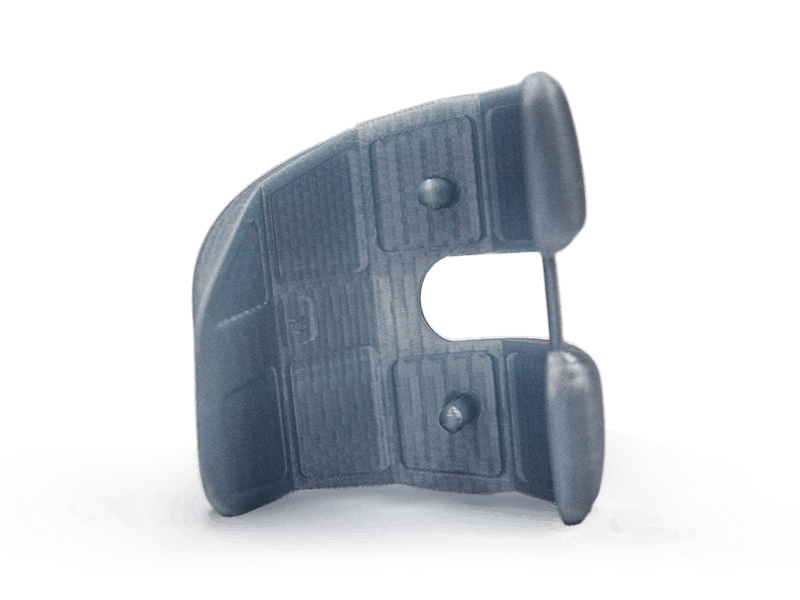

WAX

WAX is a kind of high precision resin material. The surface of the printing model is smooth and delicate, no need for second processing and polishing. With excellent casting properties, can be fast melting, no dust or residue. Mainly used in jewelry, collectibles, machinery parts and other precision investment casting fields.

    Application:
  • Injection/Molds
  • Arts Design and Creative

Nozzle temperature(℃)
245℃ - 265℃

Bed temperature(℃)
90℃ - 100℃

Layer height(mm)
0.1mm - 0.2mm

Nozzle type
Brass nozzle

Print speed
25mm/s - 90mm/s

Cooling fan
ON

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

Engineering grade

ABS
ASA
PVDF
Ultra PA
Ultra PA-CF
Ultra PA-GF

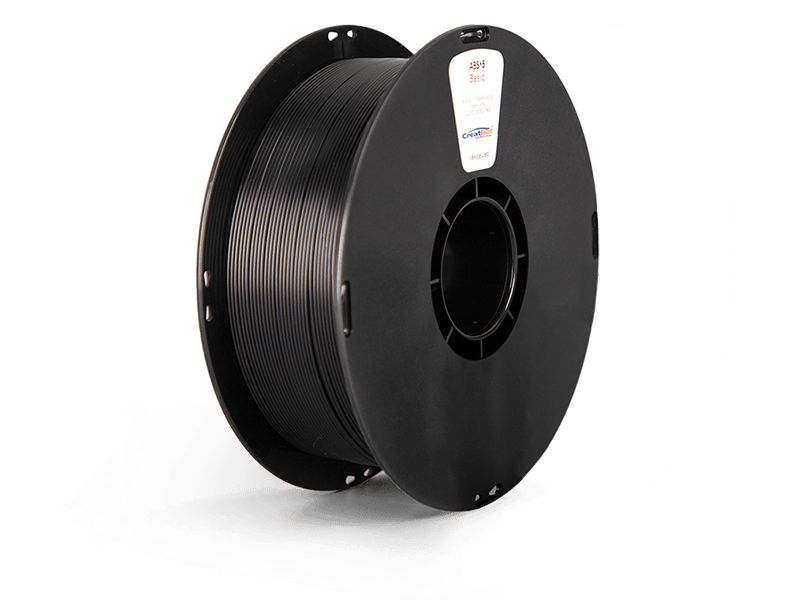

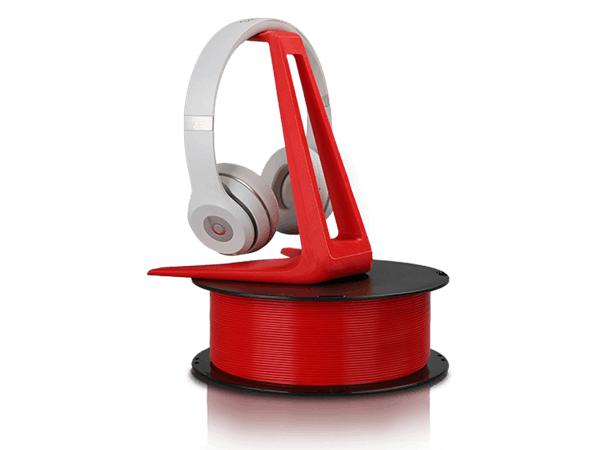

ABS

ABS (acrylonitrile butadiene styrene) is a common engineering material for 3D printing. It is cheap, and has good comprehensive mechanical properties, hot melt and impact strength. Widely used in manufacturing industry and chemical industry.

    Application:
  • Industrial Equipment and Machinery
  • Injection/Molds
  • Automotive and Motorcycles
  • Consumer Electronics
  • Industrial Components and Tooling

Nozzle temperature(℃)
240℃ - 260℃

Bed temperature(℃)
80℃ - 100℃

Chamber temperature(℃)
OFF/50℃

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
20mm/s - 80mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

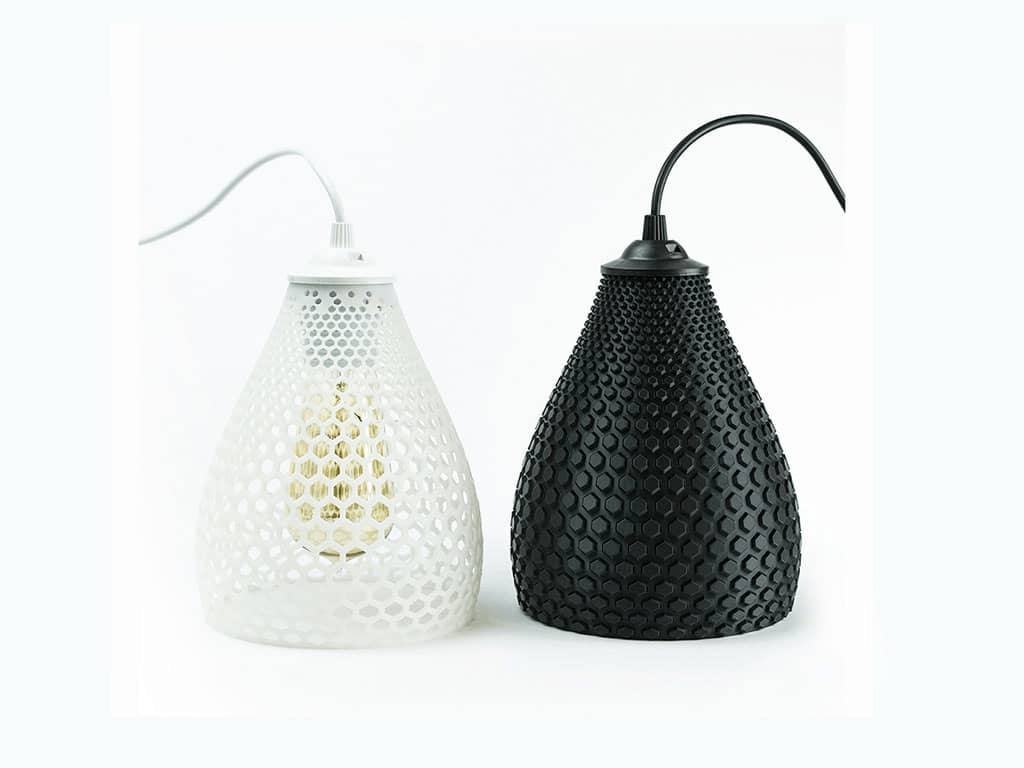

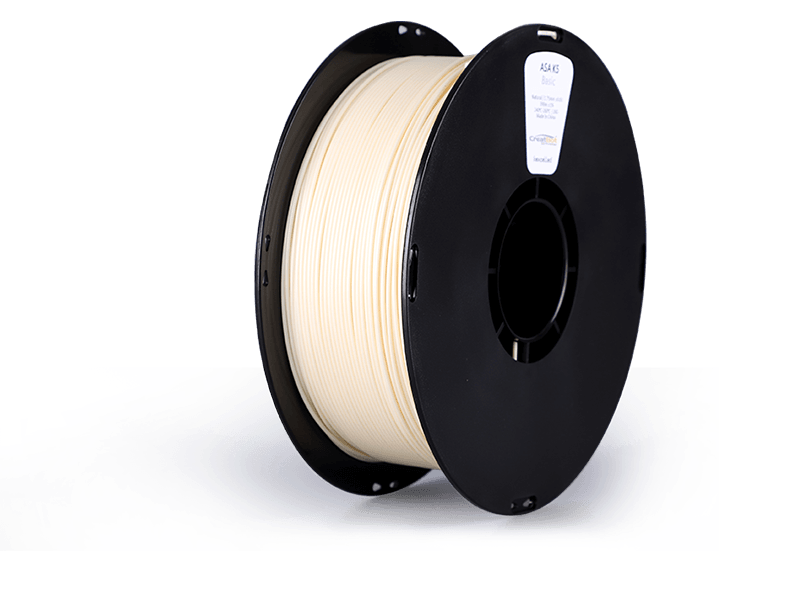

ASA

ASA has similar mechanical properties to ABS, but ASA has excellent UV resistance and is commonly used in outdoor and automotive applications.

    Application:
  • Automotive and Motorcycles
  • Impact resistance
  • Construction
  • Consumer Electronics
  • Spare Parts

Nozzle temperature(℃)
250℃ - 270℃

Bed temperature(℃)
90℃ - 110℃

Chamber temperature(℃)
50℃

Dry temperature
100℃/4小时

Print speed (mm/s)
20mm/s - 80mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

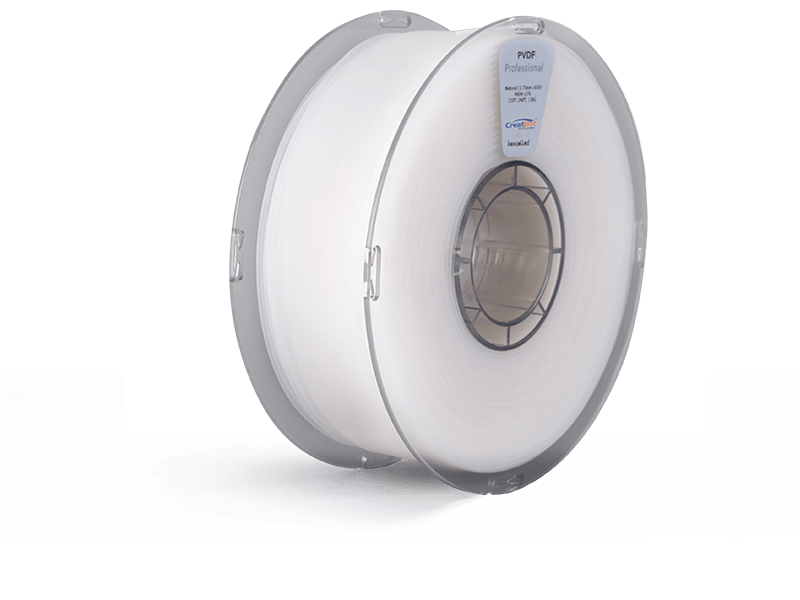

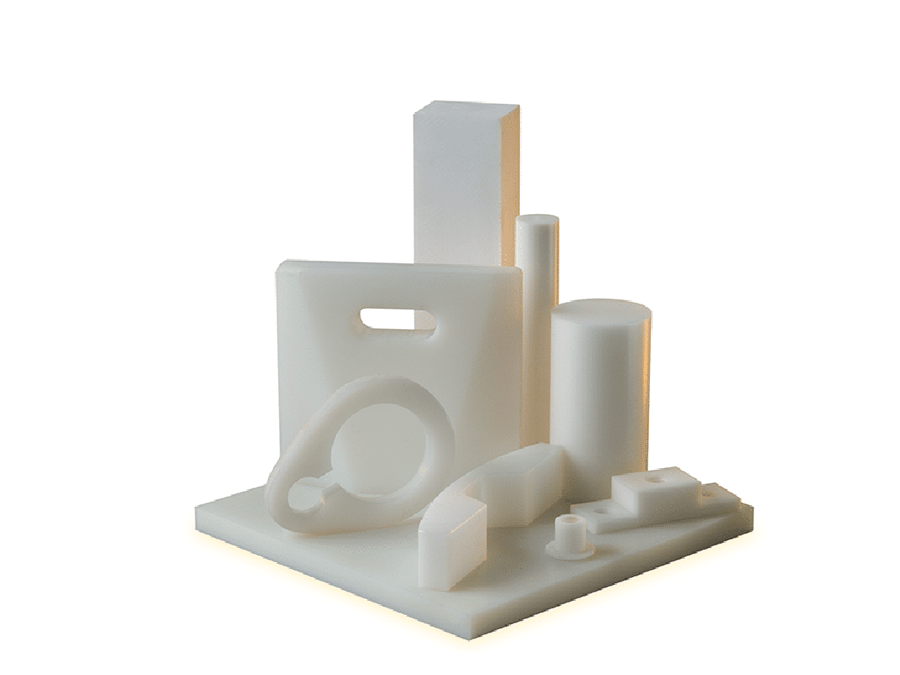

PVDF

PVDF (polyvinylidene difluoride) is a high-performance polymer with excellent chemical, heat and wear resistance, ideal for applications in harsh environments.

    Application:
  • Industrial Components and Tooling
  • Pipes and Tubes
  • Transportation
  • Government/Not for Profit
  • Spare Parts

Nozzle temperature(℃)
245℃ - 265℃

Bed temperature(℃)
90℃ - 110℃

Chamber temperature(℃)
Not required

Nozzle type
Brass nozzle

Print speed (mm/s)
40mm/s - 60mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

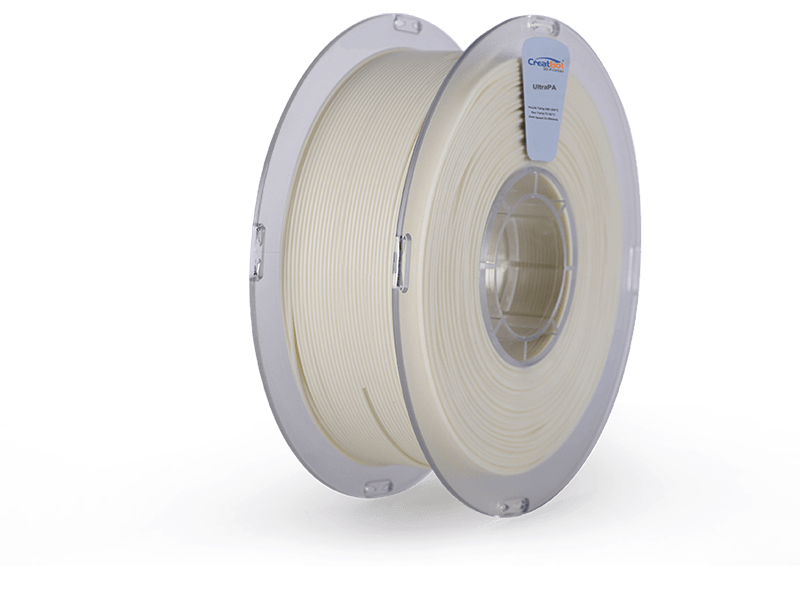

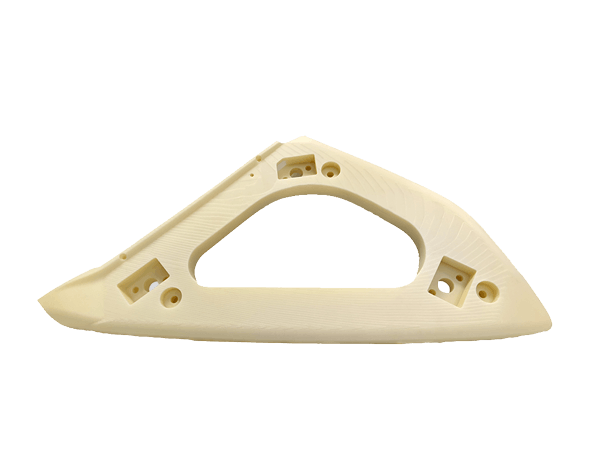

Ultra PA

Ultra PA (High Temperature Polyamide) is a special high temperature nylon 3D printing material. High wear resistance, toughness, higher strength and durability, as well as good heat resistance and lower moisture absorption, make high temperature nylon an ideal choice for a variety of 3D printing applications. Print surface feel smooth, good dimensional stability.

    Application:
  • Jigs and Fixtures
  • Industrial Equipment and Machinery
  • Automotive and Motorcycles
  • Aerospace
  • Consumer Electronics

Nozzle temperature(℃)
280℃ - 300℃

Bed temperature(℃)
70℃ - 80℃

Chamber temperature(℃)
Not required

Dry temperature
100℃/10小时

Print speed (mm/s)
30mm/s - 90mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

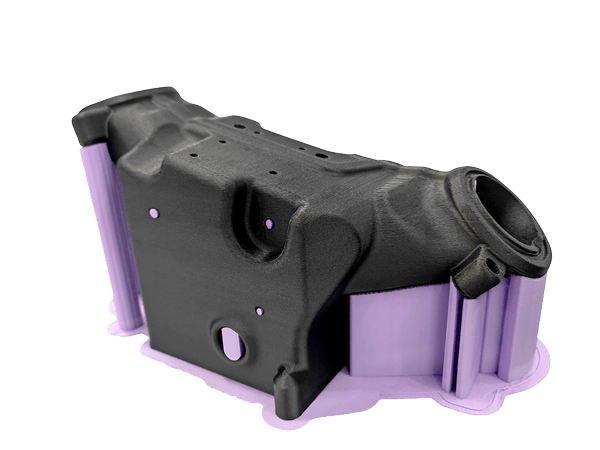

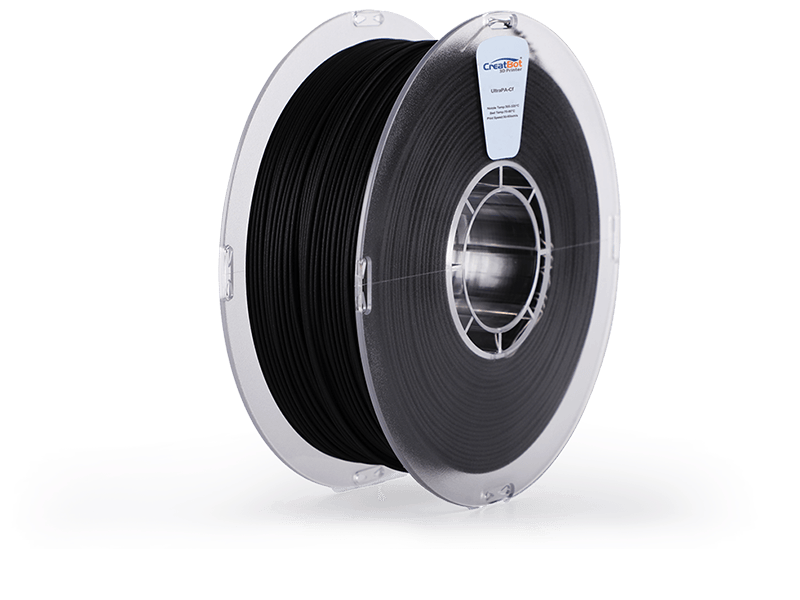

Ultra PA-CF

Ultra PA-CF (High Temperature Polyamide Carbon Fiber Reinforced) is a high temperature nylon base 15% cropped carbon fiber reinforced 3D printing material. It has the characteristics of low moisture absorption, high strength, high wear resistance, excellent chemical resistance and high heat resistance. Good dimensional stability in the printing process, no edge warping problem, suitable for the industrial field of finished parts.

    Application:
  • Automotive and Motorcycles
  • Industrial Equipment and Machinery
  • Aerospace
  • Industrial Components and Tooling
  • Consumer Electronics
  • Jigs and Fixtures

Nozzle temperature(℃)
280℃ - 320℃

Bed temperature(℃)
70℃ - 80℃

Chamber temperature(℃)
50℃/off

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
30mm/s - 60mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

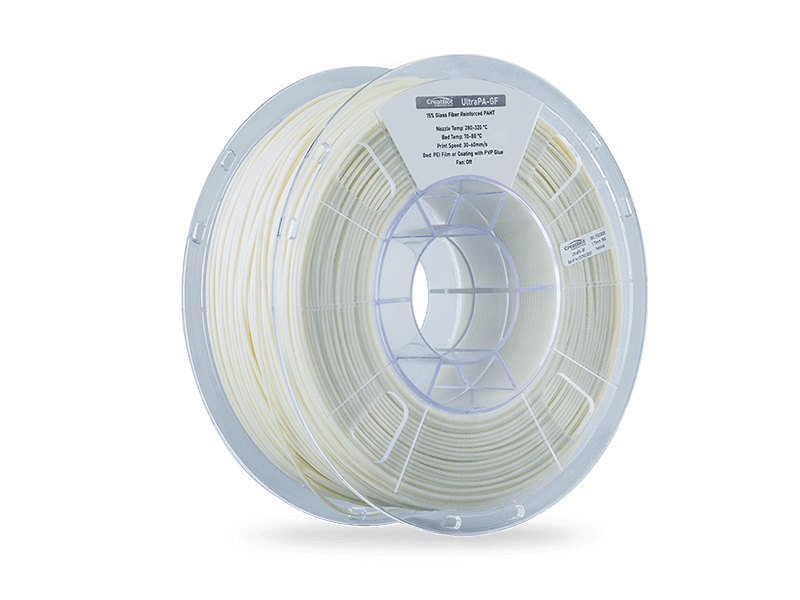

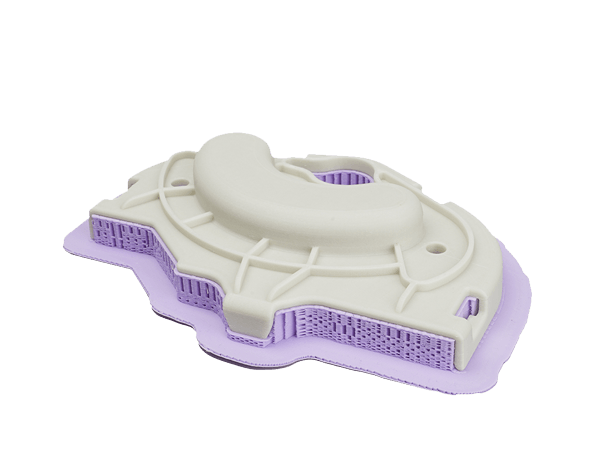

UltraPA-GF

Ultra PA-GF (High Temperature Polyamide Glass Fiber Reinforced) is a high temperature nylon based 15% cropped glass fiber reinforced 3D printing material. The addition of glass fiber improves the mechanical properties, heat resistance, dimensional stability of nylon, reduces shrinkage, warping, and better layer adhesion.

    Application:
  • Automotive and Motorcycles
  • Industrial Equipment and Machinery
  • Aerospace
  • Industrial Components and Tooling
  • Consumer Electronics
  • Jigs and Fixtures

Nozzle temperature(℃)
280℃ - 320℃

Bed temperature(℃)
70℃ - 80℃

Chamber temperature(℃)
50℃/off

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
30mm/s - 60mm/s

Cooling fan
OFF/Low

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

High performance grade

PEEK
PEEK-CF
PEEK-GF
PEI 1010
PEI 9085

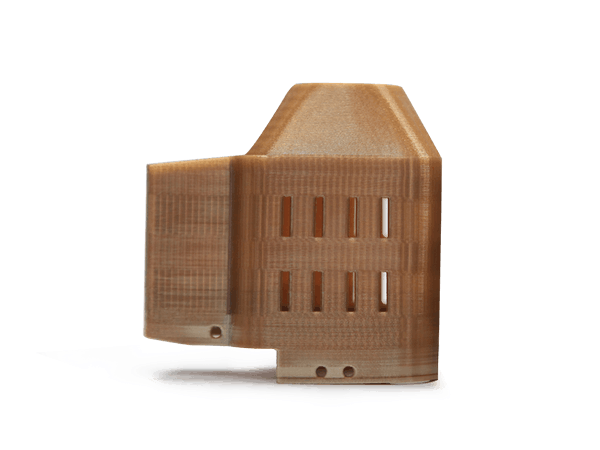

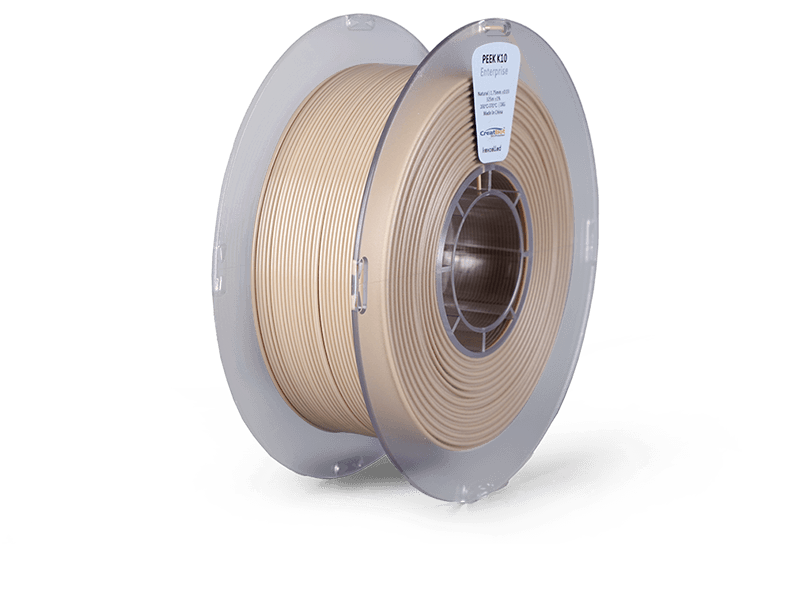

PEEK

PEEK (polyether ether ketone) is an organic thermoplastic polymer with a variety of mechanical properties such as high temperature performance, mechanical strength and excellent chemical resistance. It can be used in aerospace, medical, petroleum industry and advanced mechanical engineering fields.

    Application:
  • Aerospace
  • Automotive and Motorcycles
  • Medical and Dental
  • Education and Research
  • Industrial Components and Tooling

Nozzle temperature(℃)
400℃ - 450℃

Bed temperature(℃)
120℃ - 150℃

Chamber temperature(℃)
70℃-120℃

Layer height(mm)
0.1mm-0.15mm

Print speed (mm/s)
20mm/s - 40mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

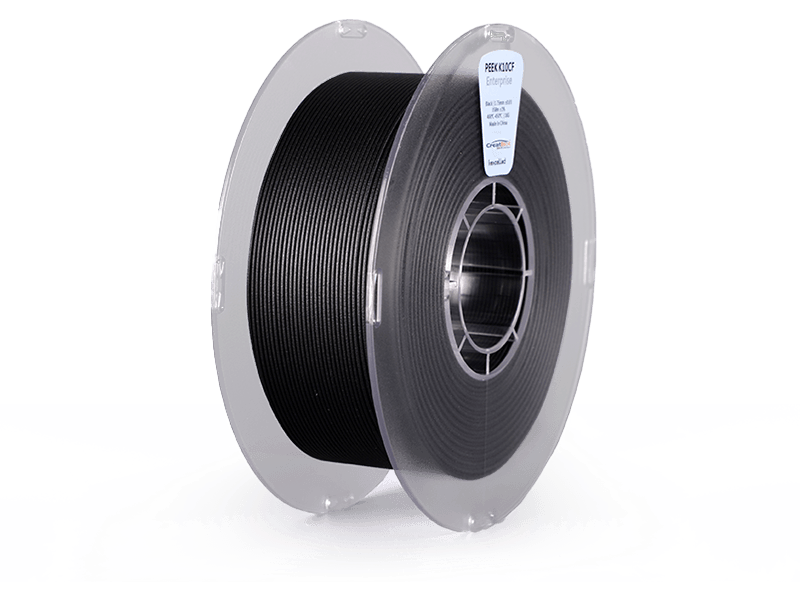

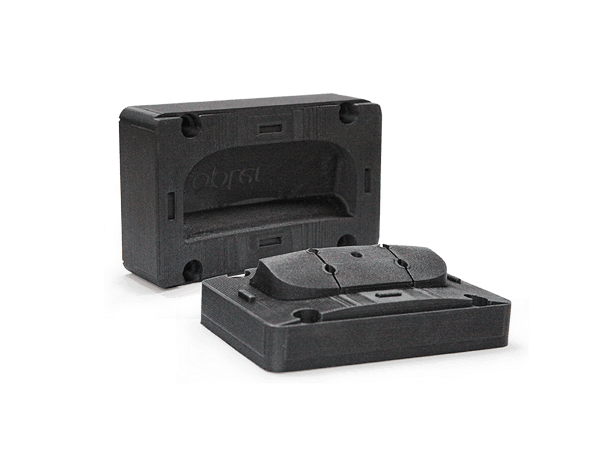

PEEK-CF

PEEK-CF is a kind of carbon fiber reinforced PEEK material, which is a kind of high-end thermoplastic composite material. After carbon fiber reinforced polyether ether ketone has further improved in mechanical properties, chemical corrosion resistance, radiation resistance and high temperature resistance. It can replace metal parts in many occasions to achieve light weight and high strength.

    Application:
  • Aerospace
  • Pipes and Tubes
  • Automotive and Motorcycles
  • Government/Not for Profit
  • Industrial Components and Tooling
  • Robotics

Nozzle temperature(℃)
400℃ - 450℃

Bed temperature(℃)
100℃ - 160℃

Chamber temperature(℃)
70℃-120℃

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
20mm/s - 50mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

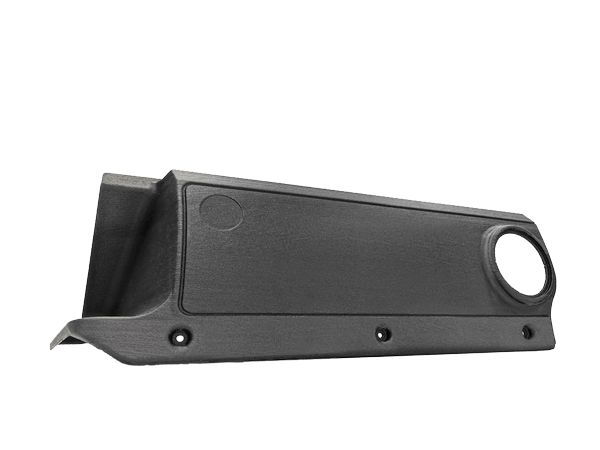

PEEK-GF

PEEK-GF is a glass fiber reinforced PEEK material with high strength, high Rigidity and high temperature resistance, and better toughness than carbon fiber. Widely used in lightweight high strength, wear resistance, high temperature resistant parts.

    Application:
  • Automotive and Motorcycles
  • Industrial Equipment and Machinery
  • Aerospace
  • Consumer Electronics
  • Industrial Components and Tooling

Nozzle temperature(℃)
400℃ - 450℃

Bed temperature(℃)
100℃ - 150℃

Chamber temperature(℃)
70℃-120℃

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
20mm/s - 50mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

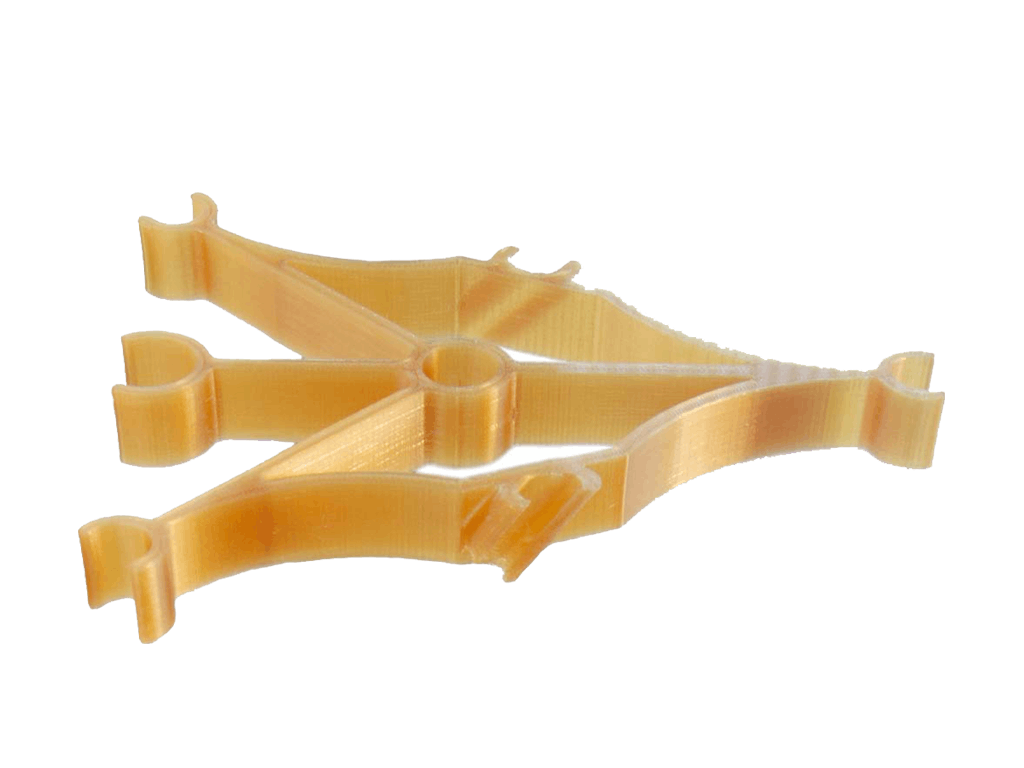

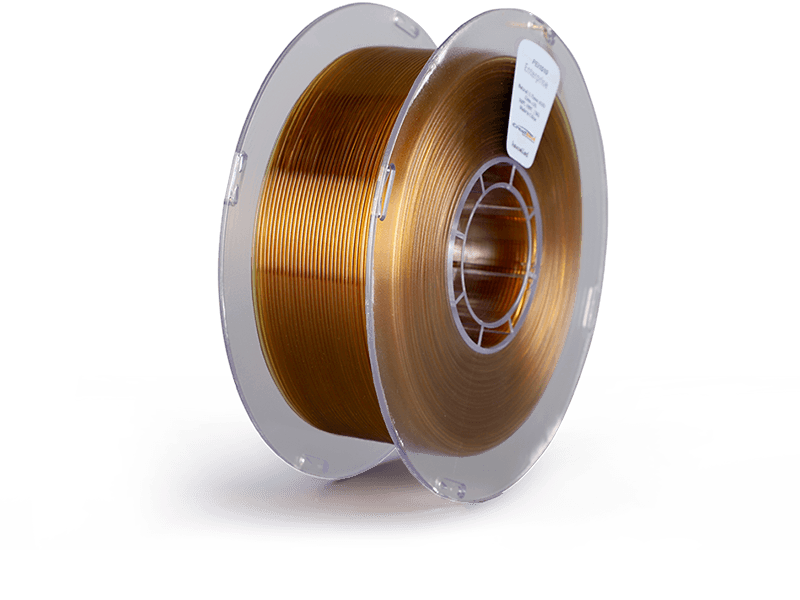

PEI1010

PEI 1010 is a polyether imide plastic with high tensile strength, chemical resistance and heat resistance. It can contact with food and reach food safety level. PEI also has excellent flame retardant, flame retardant grade can reach UL94V-0. Widely used in food and drug packaging, medical equipment, auto parts and other fields.

    Application:
  • Industrial Components and Tooling
  • Pipes and Tubes
  • Automotive and Motorcycles
  • Aerospace
  • Consumer Electronics
  • Transportation

Nozzle temperature(℃)
360℃ - 390℃

Bed temperature(℃)
140℃ - 220℃

Chamber temperature(℃)
70℃-120℃

Layer height(mm)
0.1mm-0.15mm

Print speed (mm/s)
20mm/s - 40mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

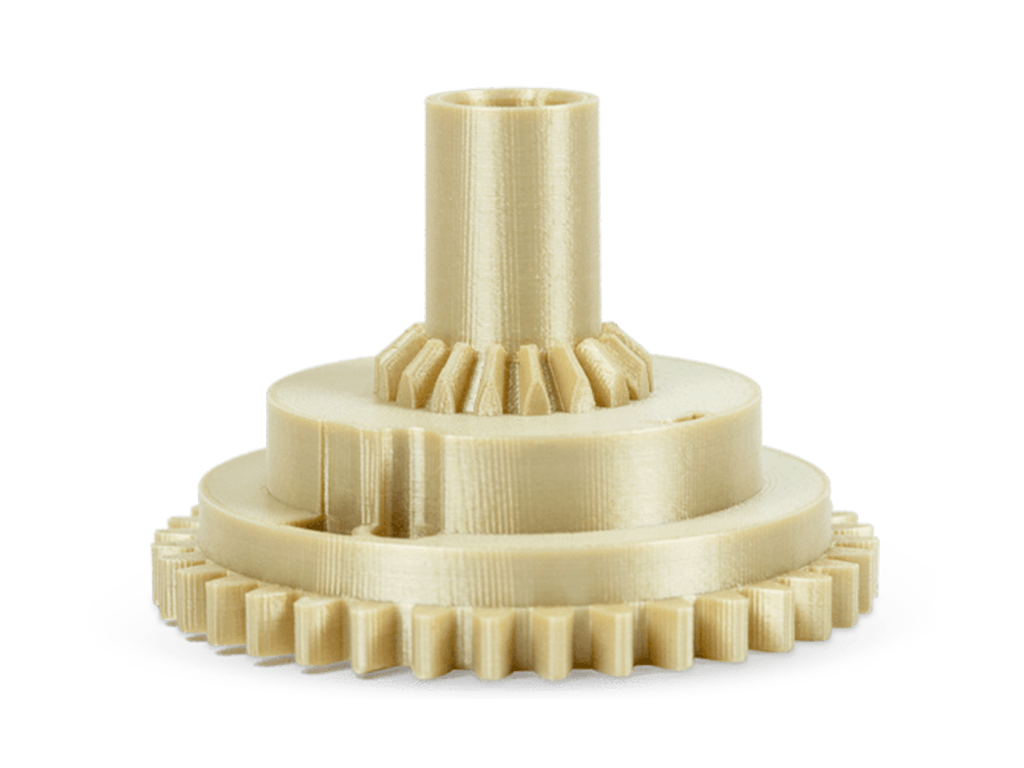

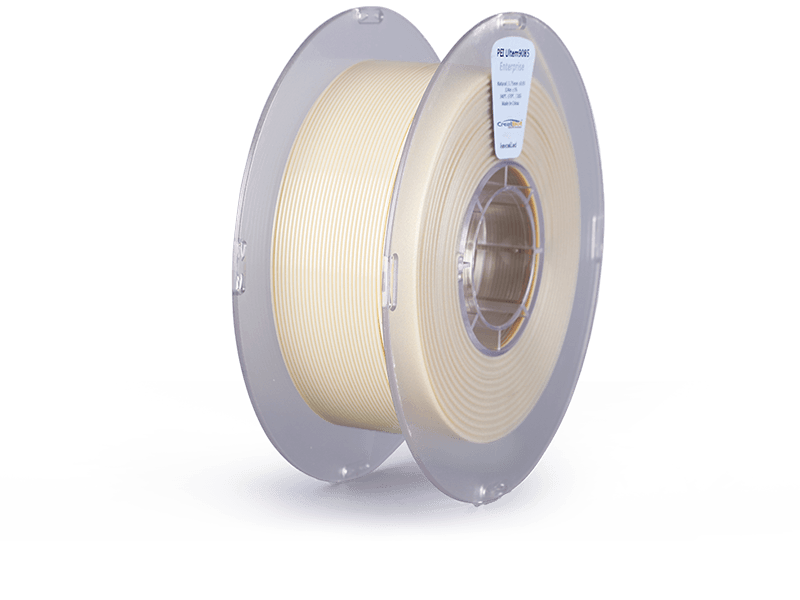

PEI 9085

PEI 9085 is an aviation grade polymer with excellent heat resistance, chemical resistance, high strength and excellent flame retardant. It is very suitable for printing flame retardant components, suitable for aircraft interiors, piping systems, electrical enclosures and other fields.

    Application:
  • Industrial Components and Tooling
  • Pipes and Tubes
  • Automotive and Motorcycles
  • Aerospace
  • Consumer Electronics
  • Transportation

Nozzle temperature(℃)
320℃ - 350℃

Bed temperature(℃)
140℃ - 220℃

Chamber temperature(℃)
90℃-120℃

Layer height(mm)
0.1mm-0.15mm

Print speed (mm/s)
20mm/s - 50mm/s

Cooling fan
OFF

Directions
Performance range
Highlights
Printability
Heat resistance

Mechanical stability at high temperature

Rigidity

Deformation resistance under external force

Impact resistance

Impact resistance under impact

Support material

PVA
Quick remove S-Blue
S-PAHT

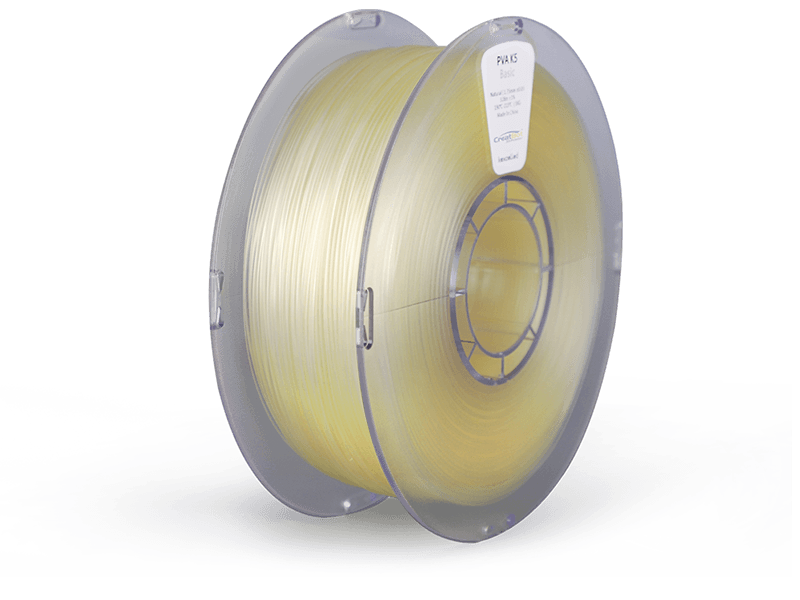

PVA

PVA (polyvinyl alcohol) is a water-soluble 3D printing support material that can be well bonded to PLA, PA, PETG and other materials. It is non-toxic and odorless during the printing, can be dissolved in water, and is environmentally friendly and non-polluting.

    Compatible Materials:
  • PLA
  • PETG
  • PA

Nozzle temperature(℃)
180℃ - 220℃

Bed temperature(℃)
45℃ - 60℃

Chamber temperature(℃)
Not required

Nozzle type
Brass nozzle

Print speed (mm/s)
20mm/s - 40mm/s

Cooling fan
ON

Quick remove S-Blue

S-Blue is a quick and easy to remove support material. By adjusting the bonding strength between the support surface of the main material and the S-Blue, the quick and easy remove can be realized. No water or solvent is required when removing the support, which does not cause water pollution and is safe and environmental protection.

    Compatible Materials:
  • ABS
  • ASA
  • PC

Nozzle temperature(℃)
280℃ - 290℃

Bed temperature(℃)
60℃ - 80℃

Chamber temperature(℃)
Not required

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
30mm/s - 120mm/s

Cooling fan
ON

S-PAHT

S-PAHT is a quick and easy to remove support material. By adjusting the bonding strength between the support surface of the main material and the S-PAHT, the quick and easy remove can be realized. No water or solvent is required when removing the support, which does not cause water pollution and is safe and environmental protection.

    Compatible Materials:
  • Ultra PA
  • Ultra PA-CF
  • Ultra PA-GF

Nozzle temperature(℃)
280℃ - 290℃

Bed temperature(℃)
60℃ - 80℃

Chamber temperature(℃)
Not required

Nozzle type
Hardened steel nozzle

Print speed (mm/s)
30mm/s - 120mm/s

Cooling fan
ON

TOP TOP
