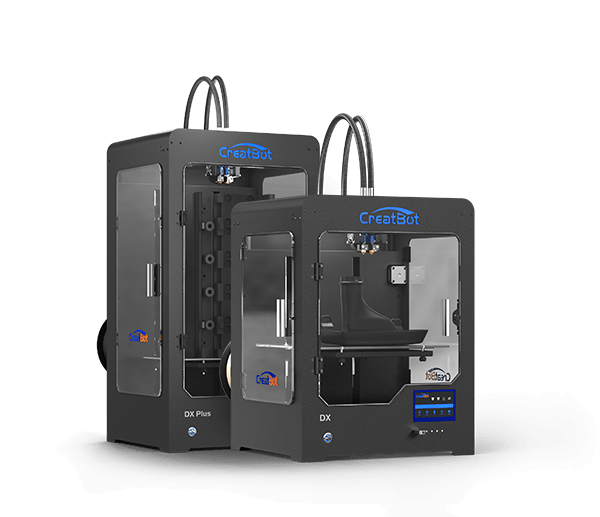

Creatbot DX

CreatBot DX/DX+

CLASSIS AND REALIABLE

DESKTOP 3D PRINTER

The DX series has been released for 6 years and we upgrade it every year.

Metal Hotend
350° Hotend
High Precision
Metal Chassis
Large BuildSize
Outage Saving
Filament Checking
Glass Ceramic
Touch Screen
Remote Feeding
Precise Feeder
Triple Extruders

Printing Videos

DX Bearing Printing Video
DX Printing Video
DX Three Head Printing Video

Temperature Up to 350°C

We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.

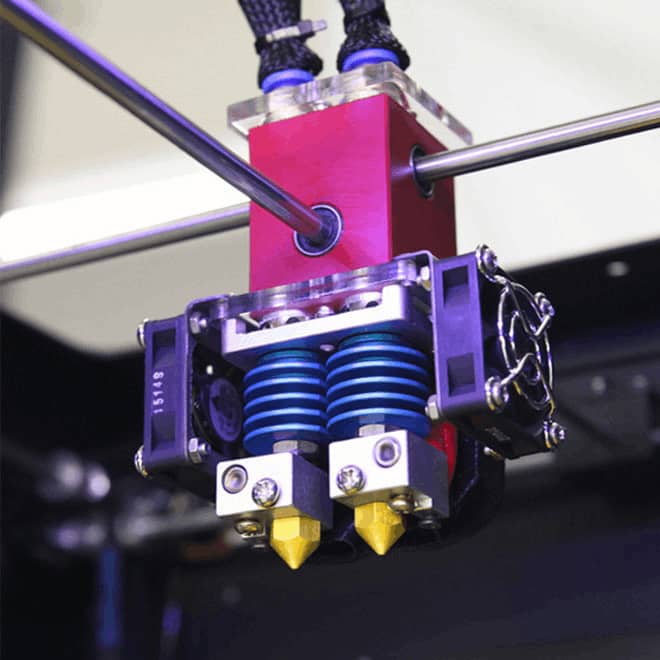

CreatBot DX All Metal Head

Metal Hotend Icon All metal hotend, more durable

350°C Hotend Icon 350°C support more filaments

Nozzle Height Adjustable Icon Nozzle height adjustable

Three Nozzle Icon Supports up to 3 hotends


High Precision

We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.

Precision up to: 0.05 mm Speed up to: 200 mm/s

CreatBot DX High Precision Sample

The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

CreatBot DX All Metal Chassis

Large Build Size

We provide variety of printing sizes for you reference. The largest build volume is 5 to 20 times bigger than it of other ordinary 3D printers in nowadays market.

CreatBot DX build volume: 300*250*300 mm

CreatBot DX Large Build Size Printer

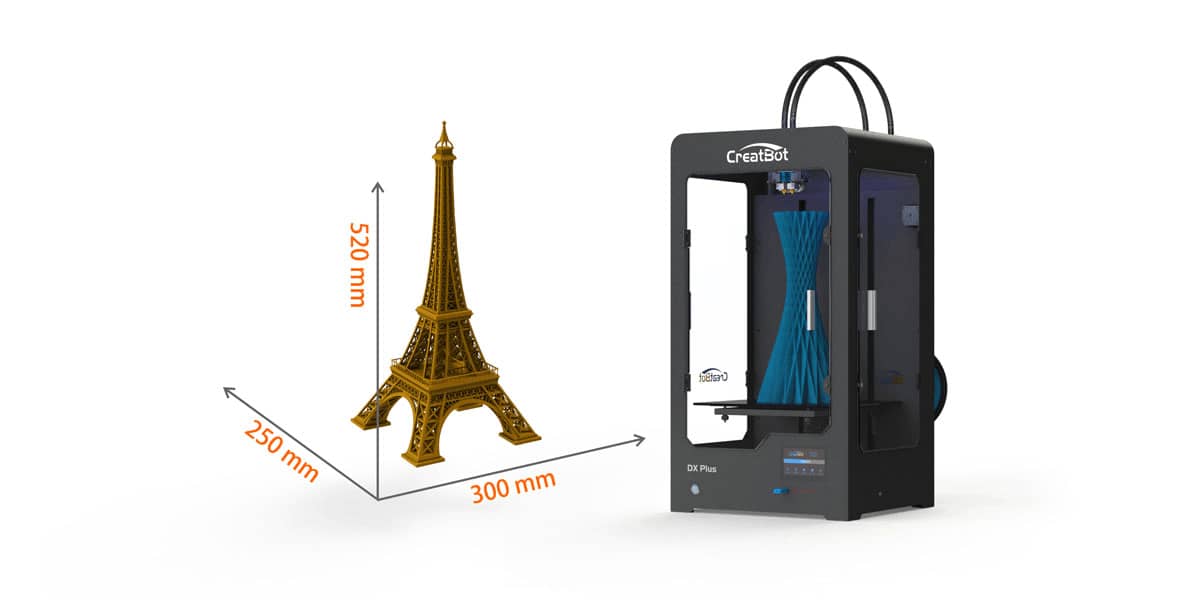

CreatBot DX Plus build volume: 300*250*520 mm

CreatBot DX Plus Large Build Size Printer

CreatBot DX feature picture

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.

The printer will avoid invalid printing by stoping print and warning when filament runs out.

CreatBot F1000 feature picture Outage Restored

CreatBot F1000 feature picture Filament Detection

Power Outage Restored Video
Filament Detection Video

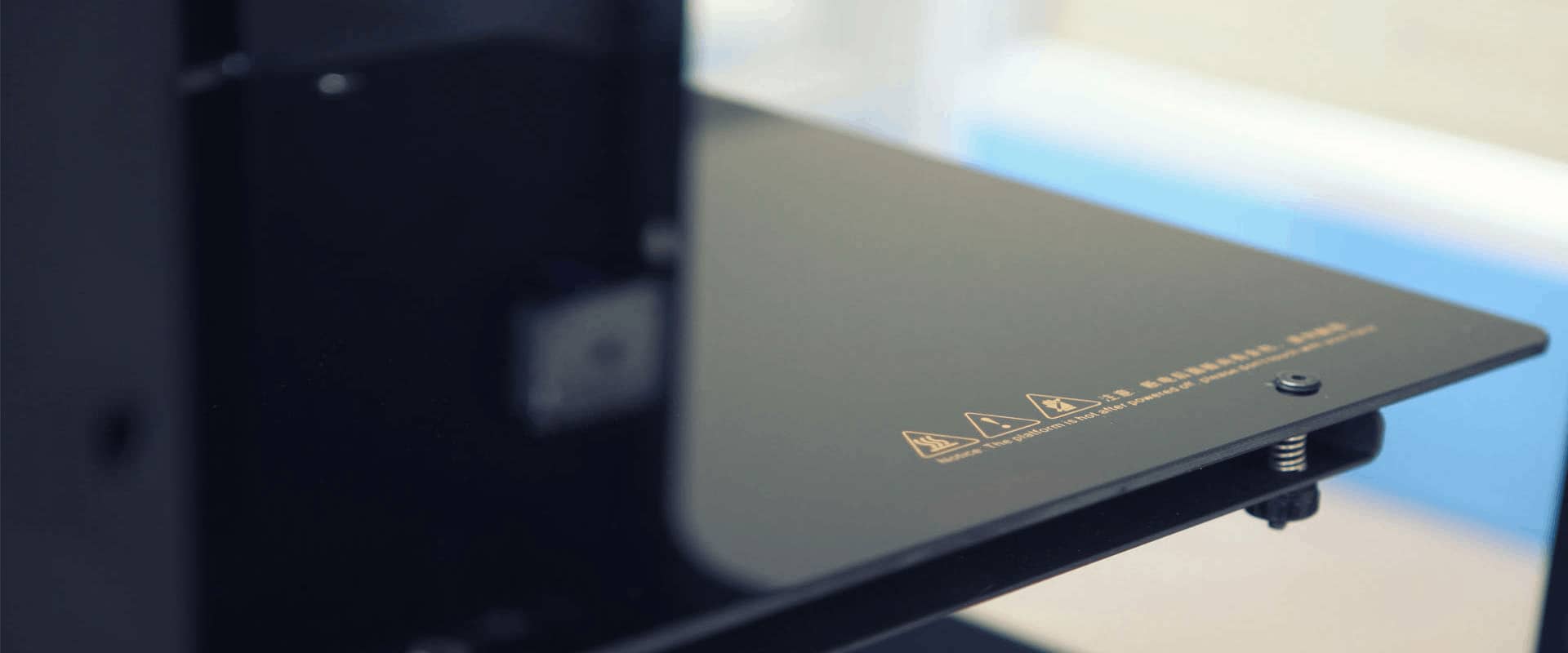

Glass Ceramic Platform

The printer has mico-crystal platform so that can support hight thermal efficiency, you can set the parameters to turn off the hot bed automatically after the specified number of layers.

CreatBot DX Glass Ceramic Platform

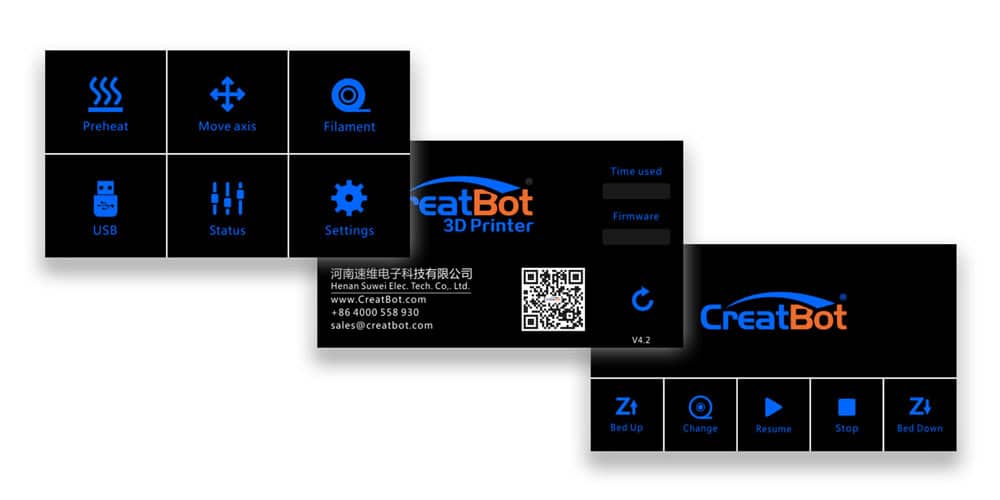

Easy Touch Screen

The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as p-4 rounded-lg bg-light border as other shortcut keys.

CreatBot D600 Touch Screen

More Features

CreatBot DX Remote Feeding System

Simple Feeding Frame

The stepper is separated with the hotend, so that the hotend is even lighter, smaller and will has less inertia of movement, also greater space utilization.

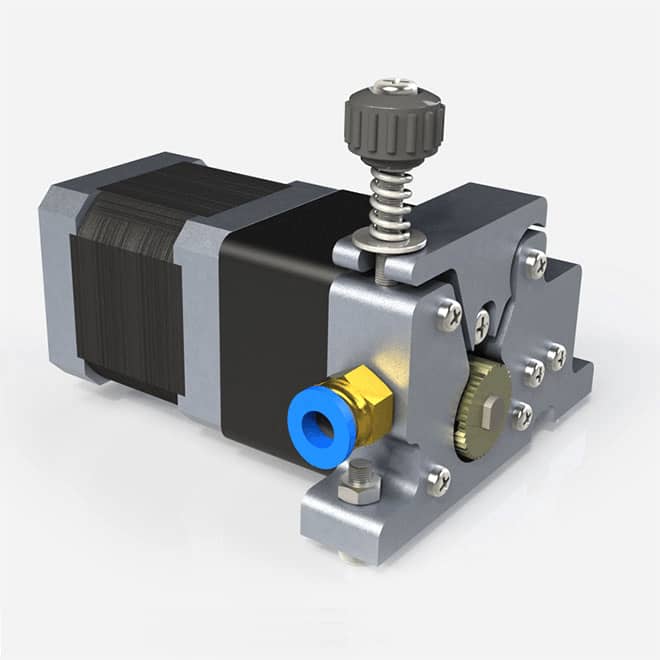

CreatBot DX Geared Feeder

Filament Feeder

Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision without slipping and delay when withdrawing the filament.

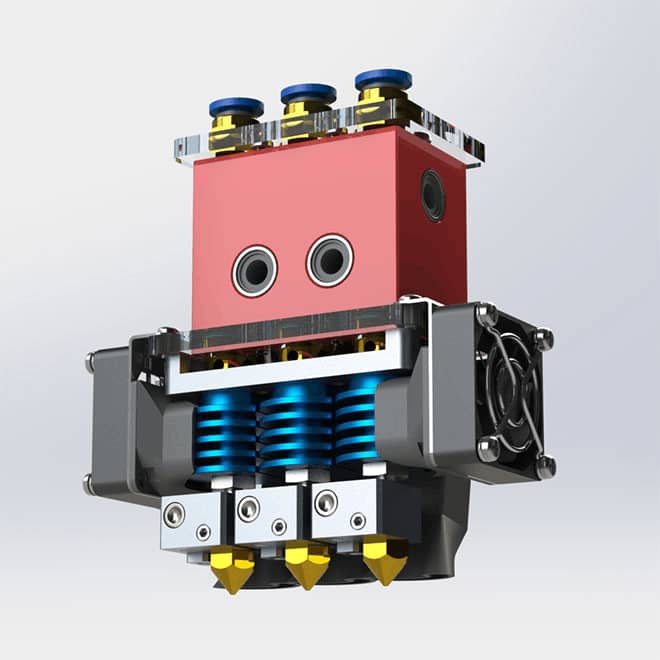

CreatBot DX Triple Extruders

Triple Extruders

upport three color printing, support printing sort of material.


Technical Specs

Printing
Print Technology Fused Deposition Modeling
Build Volume 300*250*300 mm (DX)
300*250*520 mm (DX Plus)
* 3 nozzles build width:280mm
Number of Nozzles Double (Max.3)
Resolution 0.05 mm
Layer Resolution 0.05 mm
Filament Diameter 3.0 mm (1.75 mm optional)
Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter 0.4 mm(0.3 0.5 0.6 0.8 1.0 mm)
Print File Type STL, OBJ, AMF, Gcode
Speed
Best Printing speed 45 mm/s
Max. Printing speed 200 mm/s
Software
Software Bundle CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types STL,OBJ,AMF
Operating Systems Win7/8/10, MacOS
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Automatic Shut-down Turn off the power automatically when printing is complete
Temperature
Ambient Operating Temperature 15-32 ℃
Max. Nozzle Temperature 350 ℃
Max. Bed Temperature 100 ℃
Electrical
Power Requirements 100~240 V, 50~60 Hz
Max. Power 360 W
Screen 4.3" Touch Screen with Multi-language
Control Chip ATmega 2560
Storage Media U Disk
Connectivity USB
Mechanical
Construction Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
Build Plate Glass Ceramic Panel
Build Plate Leveling Factory Leveled, Adjust Manually
Extruder Geared motor (1:10 rate)
Stepper Motors 1.8°Step Angle with 1/16 Micro-stepping
X Y Positioning Precision 12.7 μm
Z Positioning Precision 1.25 μm
Size & Weight
Product Dimensions & Weight 420*380*570 mm 25 kg (DX)
420*380*790 mm 30 kg (DX Plus)
Packing Size & Weight 550*500*670 mm 35 kg (DX)
550*500*870 mm 40 kg (DX Plus)
