Samsung Electronics & CreatBot: Giants Join Forces to Reshape Display Prototype Development

3D Printing Strategy Drives Agile Innovation and Cost Efficiency in Consumer Electronics

Consumer Electronics Manufacturer SAMSUNG

Customer Profile | Samsung: A World-Leading Consumer Electronics Manufacturer

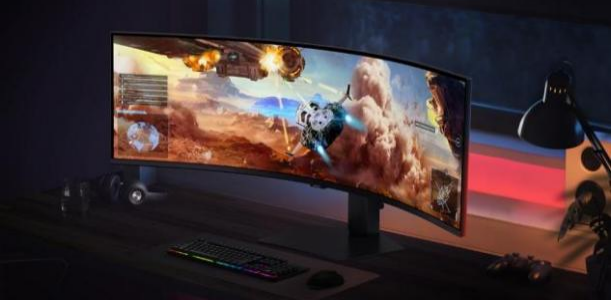

Samsung is a globally renowned consumer electronics manufacturer with deep expertise in display technology and industrial design. Its computer and TV monitors are sold in over a hundred countries, consistently ranking among the top in annual shipments. In the high-end gaming monitor segment, Samsung focuses not only on performance metrics like refresh rate and response time, but also on how exterior lines and material textures influence the player experience. For this project, Samsung planned to launch a new large-format curved gaming monitor with a futuristic look that could be mass-produced. During R&D, Samsung wanted a 1:1 appearance prototype to verify design proportions, assembly feasibility, and ergonomic effects.

Challenge | Bottlenecks in Turning Design into Reality

Although traditional CNC or injection molding can produce large shells, Samsung's evaluation revealed several unavoidable issues:

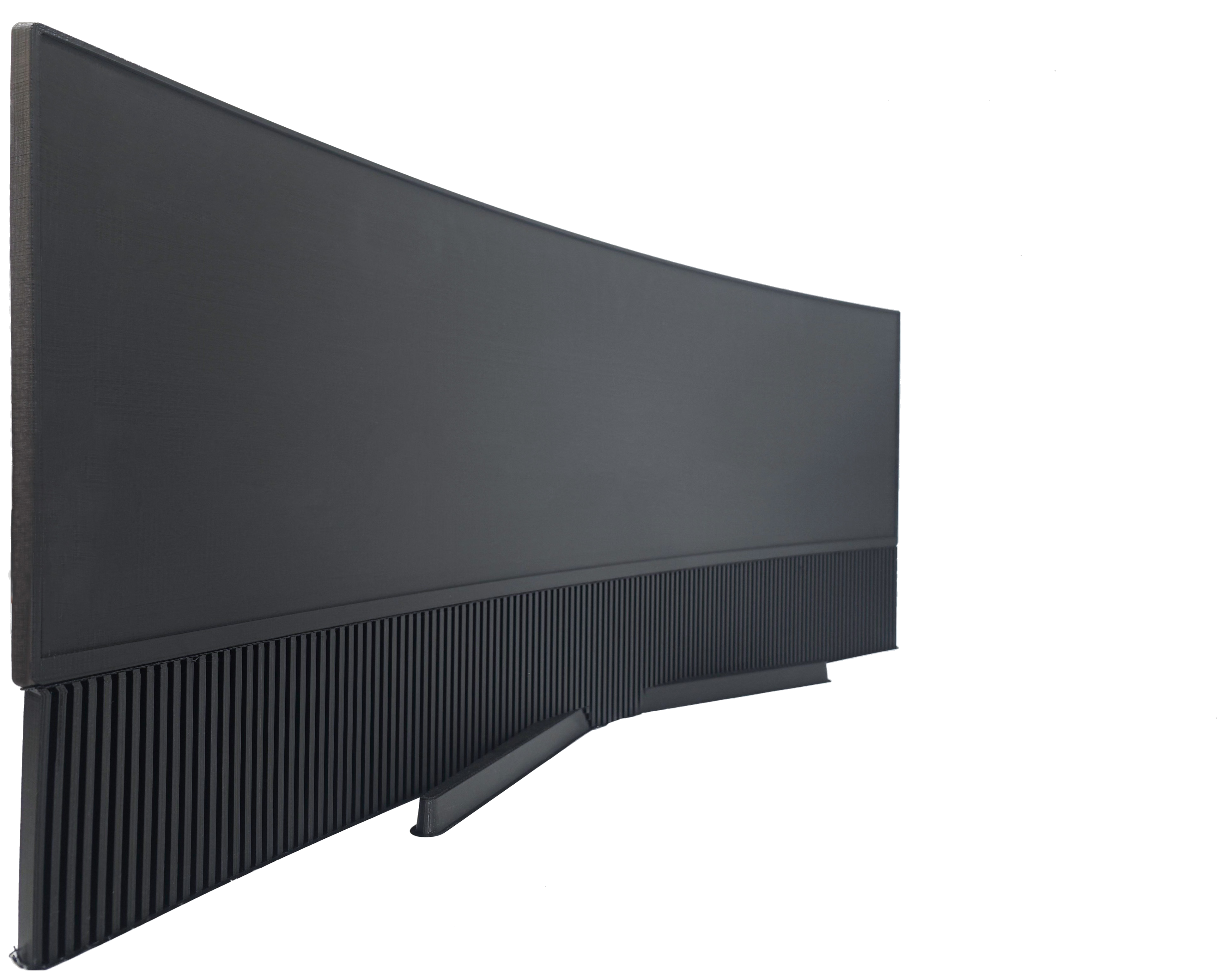

• Curved-surface & overall precision: At 1.1 m long, the monitor shell's large-curvature surface would suffer discontinuous curvature transitions if machined in sections, harming visual quality.
• R&D schedule pressure: From design freeze to first appearance validation, less than 10 days were allotted for prototype fabrication.
• Multiple iterations: The styling might require several tweaks during reviews, something traditional tooling could not accommodate flexibly.

Objective | Achieve Efficient, High-Precision Large Prototype Manufacturing

For this project Samsung set the following key requirements:

• One-piece overall forming: Ensure the appearance prototype has no joint marks, enhancing presentation and review visuals.
• High-precision manufacturing: Dimensional accuracy must satisfy assembly and functional-test demands.
• Superior surface quality: Surface must reach production-grade texture.
• Rapid delivery: Lead time ≤7 days.
• Controllable cost: Cut cost by >50% while meeting quality targets.

Solution | CreatBot D1000 Custom Large-Format 3D Printing Plan

After fully understanding customer needs and project challenges, the CreatBot team proposed a large-prototype manufacturing solution tailored for this job:

Core Equipment Selection

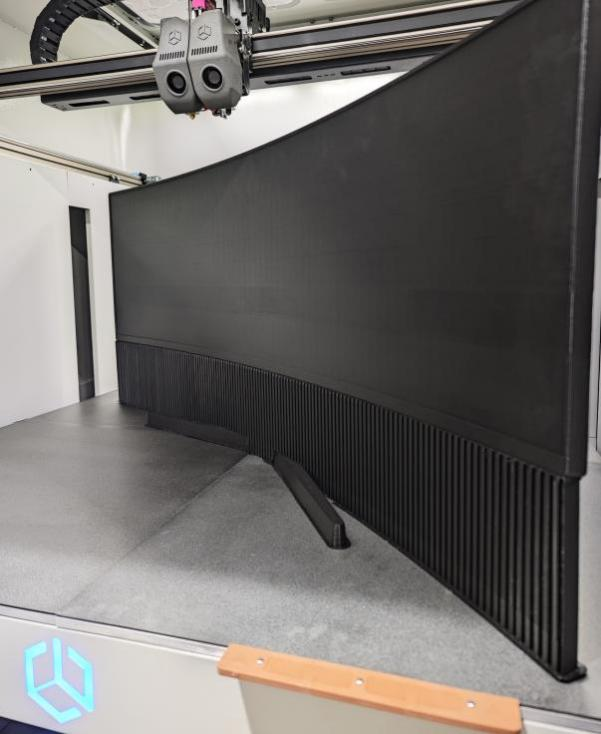

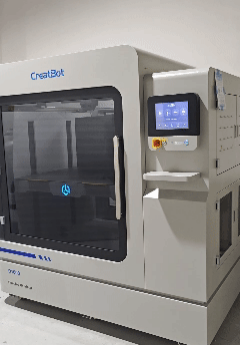

We recommended the CreatBot D1000 industrial 3D printer as the manufacturing core. With its 1000 × 1000 × 1000 mm build volume, high-precision linear rails and servo motors, these advanced hardware components ensure extremely high accuracy and repeatability, enabling one-piece printing of the display shell and eliminating splice errors.

Balancing Material & Performance

Engineering-grade high-strength PLA-CF was used, together with 0.2 mm layer height and curved-path optimization to reduce surface stepping.

Flexibly Handling Design Changes

During R&D the model can be quickly modified and reprinted, ensuring any design adjustment is realized in a short time.

Pre-Assembly Simulation

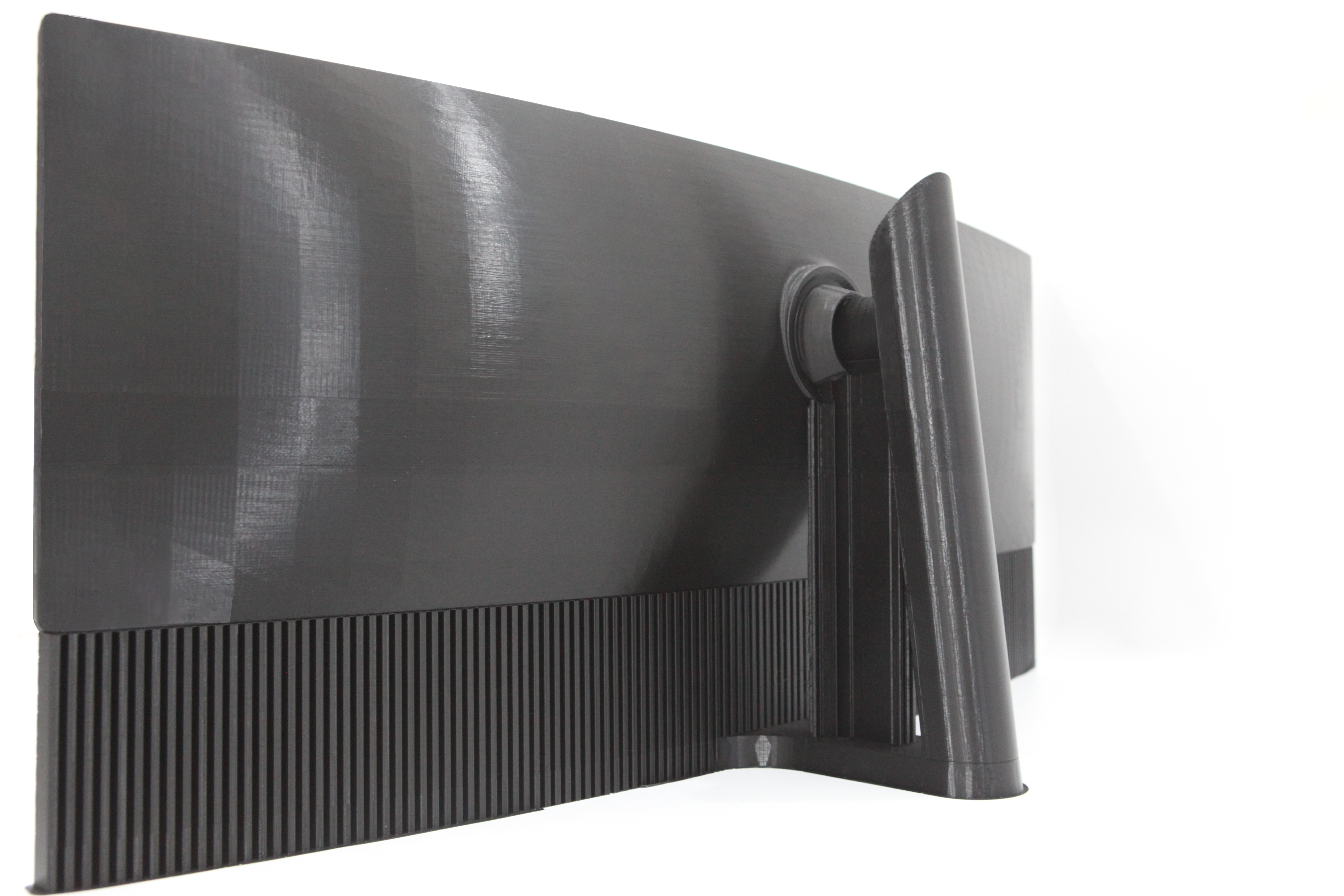

Before printing, the shell and Samsung's existing base model were digitally assembled to verify that holes and bend angles matched perfectly.

Impact | Results: Rewriting Industry Benchmarks

Value | Industry Value and Future Application Prospects

This case not only demonstrates the practical value of 3D printing for large gaming monitor appearance prototypes, but also offers the industry a new manufacturing mindset. As consumer-electronics styling becomes more diverse and iterations accelerate, industrial 3D printing will be increasingly used for prototyping, functional validation, and small-batch production. With its large size, stability, and flexibility, CreatBot D1000 will unleash huge potential in many more industry scenarios.
