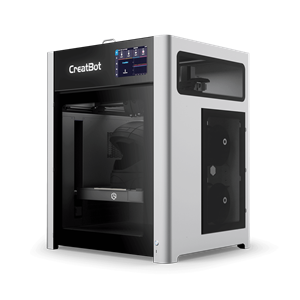

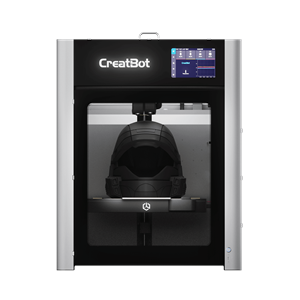

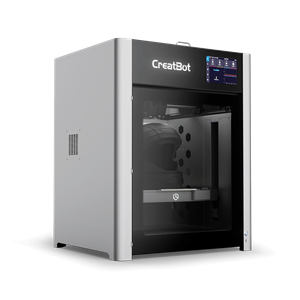

D400 HS

Name: CreatBot D400 HS Desktop FDM 3D Printer | 420×400×420mm³ Dual-Nozzle High-Speed Printing
Brand: CreatBot

Champion DNA:

Professional High-Speed 3D Printer

Learn More...

The all-new D400 HS is a next-generation high-speed 3D printer tailored for professional desktop applications. Developed on the identical platform as the world's best-selling D600 Pro3 HS, it fully inherits its mature and robust core technologies. Adopting an industrially proven structural architecture validated by long-term market verification, the unit is powered by deeply optimized Klipper firmware and equipped with a high-performance high-flow hotend that delivers a peak volumetric flow of 90mm³/s. Matched with a precisely tuned and reinforced motion system, it achieves a stable printing speed of 600mm/s. Its core hardware specifications, dynamic performance parameters, and material compatibility fully match the standards of flagship industrial-grade printers.

Undoubtedly, the D400 HS stands as the ultimate desktop choice for enterprises and professional users pursuing extreme printing performance.

Get a quote Check Specs

D400 HS

Champion DNA: Professional High-Speed 3D Printer

Undoubtedly, the D400 HS stands as the ultimate desktop choice for enterprises and professional users pursuing extreme printing performance.

Get a quote Check Specs

What's the News on the D400 HS?

Dual Nozzle Shutter

Fully Automatic Synchronization

Up to 40% Faster Printing

Lightweight Auto-Rising Extruder

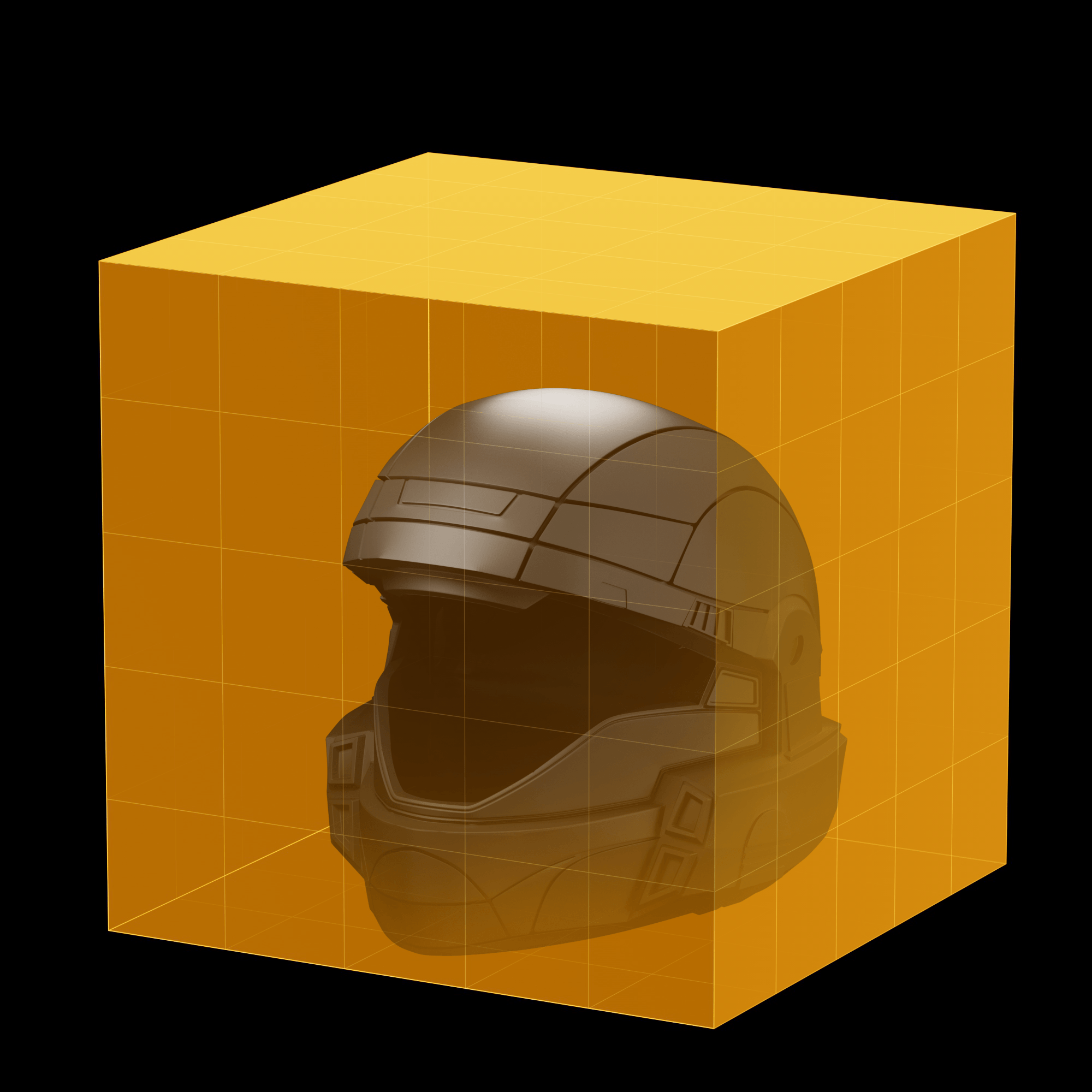

420*400*420mm³ Large Volume

True External Air Cooling

0.02mm XY Positioning Accuracy

HD Camera Dual Nozzle Offset

70°C Heated Chamber

Internal Insulation Cotton

0.001mm Accuracy

Eddy Current Bed Leveling

90 mm³/s Flow Rate

Stronger X Rail

Up to 40% Faster Printing

Lightweight Auto-Rising Extruder

True External Air Cooling

0.001mm Accuracy

Eddy Current Bed Leveling

0.02mm XY Positioning Accuracy

HD Camera Dual Nozzle Offset

70°C Heated Chamber

Internal Insulation Cotton

90 mm³/s Flow Rate

Stronger X Rail

Dual Nozzle Shutter

Fully Automatic Synchronization

420*400*420mm³ Large Volume

The First Layer Defines Print Quality

Equipped with automatic mesh bed leveling, our large-format 3D printers ensure an ultra-smooth and uniform first layer across the entire expansive platform for flawless printing results.

Full-Auto Dual-Nozzle XYZ Offset Calibration

XY via HD Macro Camera

Fully-Auto AI Visual Recognition

0.02mm Accuracy

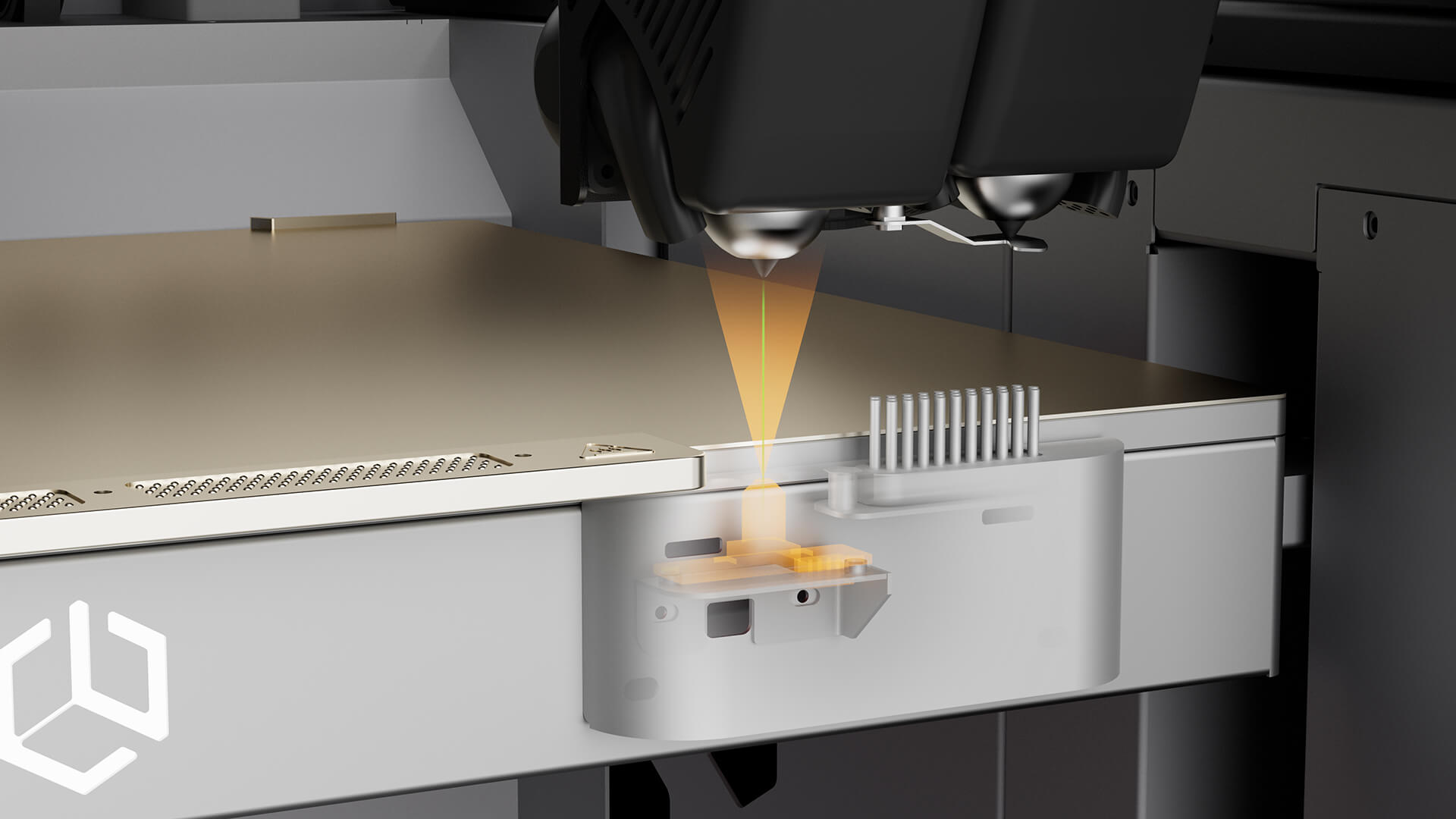

Z via Dual Photoelectric Sensor

Full-Auto Multiple Positioning

0.005mm Accuracy

Eddy Current Bed Leveling 0.001mm Precision

Revolutionizing Large-Scale Print Platform Calibration

The eddy current leveling system solves critical challenges in calibrating large build plates. Utilizing high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001mm—improving precision by 99% compared to traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.

Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds—reducing leveling time by 80% and significantly improving printing efficiency.

Auto-Raising Dual Extruders | 420℃

Flow Rate:90 mm³/s

Heating to 400°C:2 Mins

Thermostat Accuracy:±0.15 °C

The D400 HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hotend temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.

Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.

Automatic Dual Nozzle Shutter

This innovative system features a precision mechanical shutter that automatically closes over the nozzle of the idle extruder the moment it lifts away. By creating a physical seal, it effectively prevents oozing and cross-contamination between materials, ensuring flawless multi-material and multi-color prints. It's the key to achieving pristine quality and reliability in every layer.

Left Nozzle

Right Nozzle

Scale Without Limits for High-Strength Prototypes

The CreatBot D400 HS was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is embedded with many advanced technologies for ultra-large, impressive prints. It will undoubtedly be your best choice if you are looking for an industrial large-scale 3D printer for prototyping with engineering-grade materials.

If you are tired of the fragility of PLA and the warping of ABS, try our revolutionary material, UltraPA-CF. By printing your large models with a large-diameter nozzle, you will get an oversized model with a high strength of 80MPa and heat resistance up to 150°C within days. It is the best choice for your prototype verification.

Scale Without Limits for High-Strength Prototypes

Design Prototype

Functional Prototype

End-Use Parts

Spare Parts

Forms & Molds

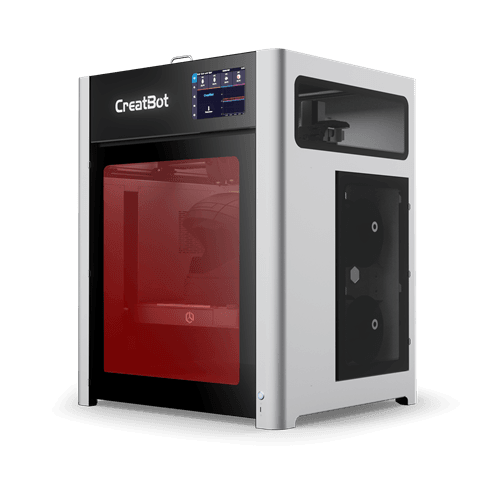

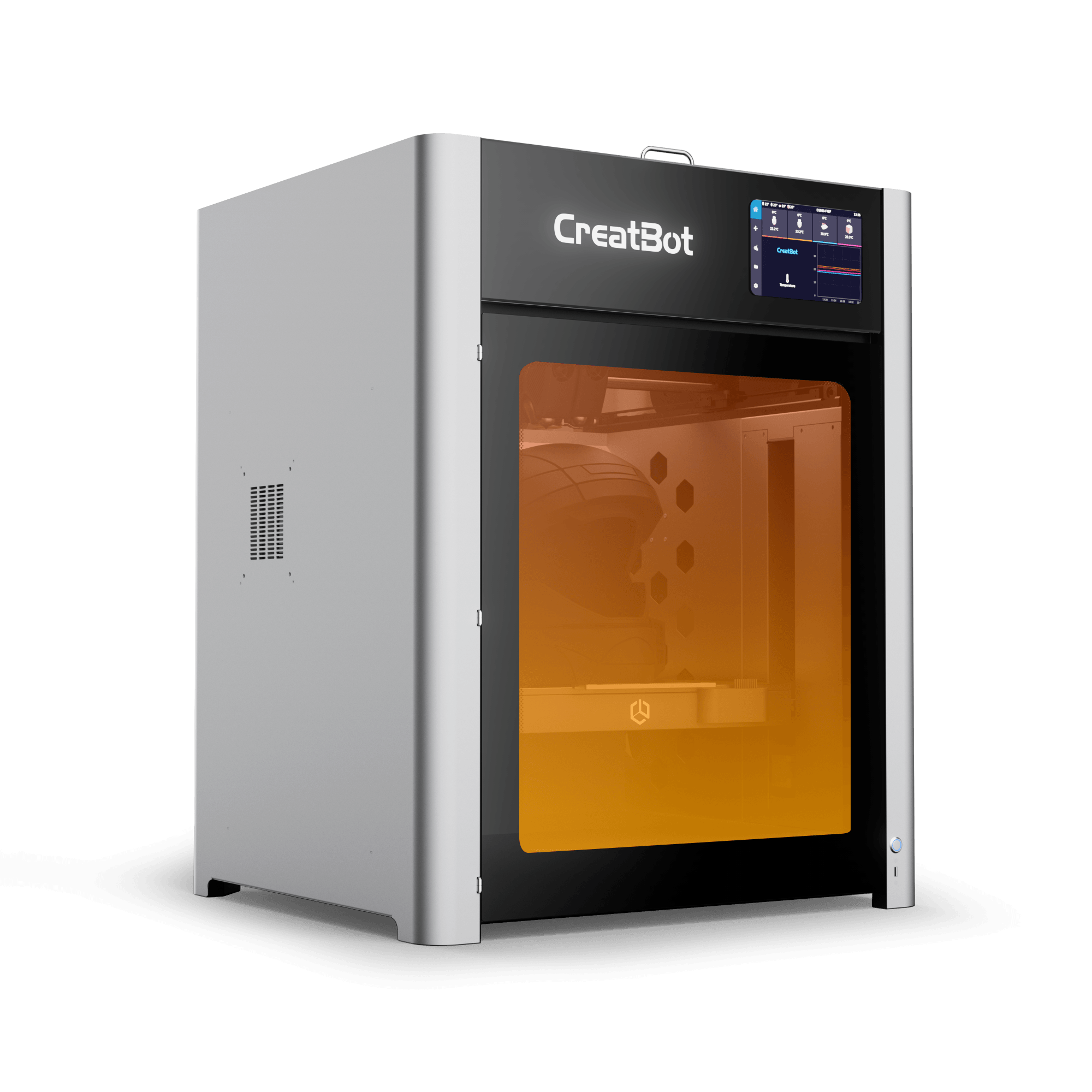

Active Heated Chamber | 70℃

The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 70°C. This is crucial for preventing the shrinkage and deformation of large engineering materials.

Reduces Thermal Stress & Warping

Improves Interlayer Bonding

Minimizes Moisture Impact

Ensures Process Consistency

When printing large or high-strength engineering materials (e.g., ABS), uneven cooling causes internal thermal stress, leading to warping, delamination, or cracking.

Did You Know a Heated Chamber Can Warp Your Printer?

Ln large-format FFF 3D printing, when chamber temperature rises, the printer frame and structural components also undergo thermal deformation—metal expansion, axis misalignment, and mechanical part displacement. These micro-distortions accumulate layer by layer, ultimately leading to:

- Layer Misalignment and Surface Roughness
- Loss of Dimensional Accuracy
- Structural Defects in Large Parts

This is why treating chamber temperature as an optional add-on, or claiming it can be retrofitted later, proves these manufacturers just don't get it. They have no compensation for machine deformation—some aren't even aware of the issue. They simply add it as a feature to drive sales, with total disregard for actual print quality.

With 8+ Years of R&D on the Chamber Temperature of FFF Industrial Printers

Our Solution: Intelligent Chamber Heating Algorithm

The intelligent chamber heating algorithm predicts and counteracts irregular deformations caused by chamber temperature variations.
The final result? Even if the machine has already deformed slightly, it can still print perfect parts!
The robust structure of the 3D printer (weight matters) significantly reduces deformation—the heavier the machine, the less distortion!

With 8+ Years of R&D on the Chamber Temperature of FFF Industrial Printers

Our Solution: Intelligent Chamber Heating Algorithm

The intelligent chamber heating algorithm predicts and counteracts irregular deformations caused by chamber temperature variations.
The final result? Even if the machine has already deformed slightly, it can still print perfect parts!
The robust structure of the 3D printer (weight matters) significantly reduces deformation—the heavier the machine, the less distortion!

Outage Restore & Filament Detection & Backup Mode

The printer automatically memorizes the current position and saves print data when power is interrupted. Upon restart, it resumes printing from the exact point of interruption, eliminating the need to restart entire prints and saving valuable time and material costs.

The printer also prevents failed prints by pausing and alerting you when the filament runs out, allowing you to replace the spool and continue printing without losing progress.

Backup Mode: If the filament in the main nozzle (No. 1) is exhausted, the printer automatically switches to the secondary nozzle (No. 2) to continue printing, ensuring uninterrupted production even during filament changes.

Magnetic Suction Platform

Proprietary magnetic platform, large, easily removable, and heat-resistant over 100°C, and won’t demagnetize over time.

For oversized models, it is easy to detach them quickly and the bottom of the model is flat. Convenient to all operators.

True External Air Cooling

Medical-Grade Cooling Pump

Printer Head Heat Protection

True Air Model Cooling

Ultra-Quiet & Reliable: Equipped with a medical-grade pump, it delivers powerful, constant air pressure with minimal noise. Engineered for 24/7 operation, it ensures a quiet and stable workflow for professional environments.

Ultra Air Filter System / 99.995% Adsorption

Our advanced air purification system employs a dual-filter design: an initial HEPA filter captures fine particles, while an activated carbon filter absorbs volatile organic compounds (VOCs) and odors. This ensures a clean and safe printing environment, protecting both the operator and the printed parts from harmful emissions.

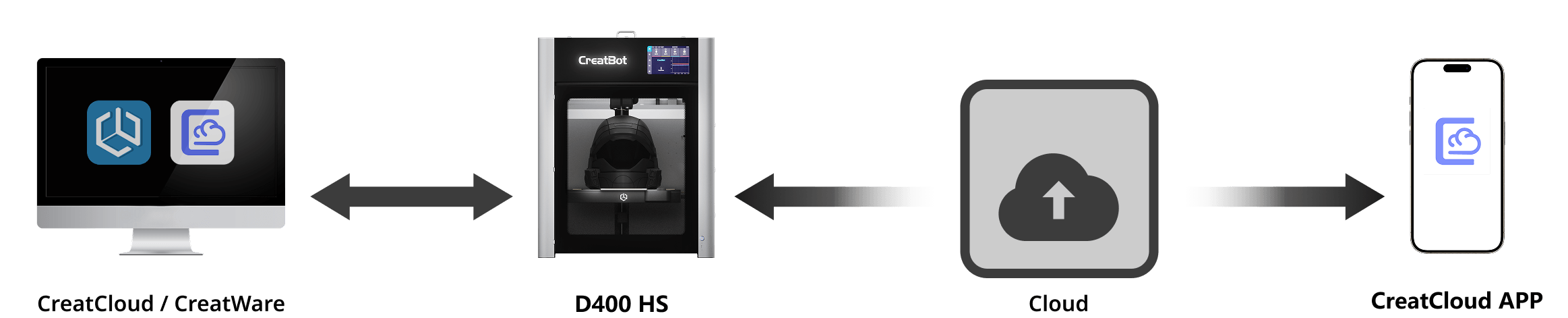

WIFI, LAN, Internet, APP Control

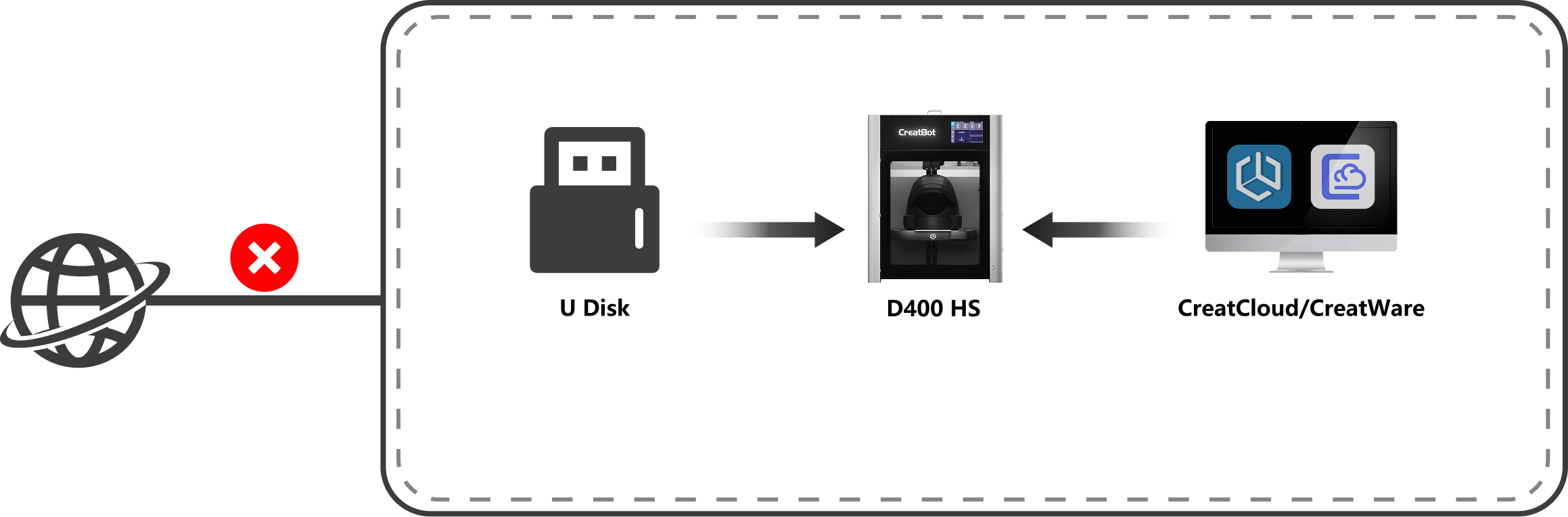

In addition to cloud connectivity, CreatBot also supports local area network mode and physical connection operation. You can control the printer, send sliced files, and update firmware without an internet connection.

Completely Offline

Printer Control

File Sending

Firmware Update

Completely Offline

Printer Control

File Sending

Firmware Update

Camera Control Technology

Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.

What Materials Can CreatBot Large 3D Printers Print?

Creatbot 3D printers have strong adaptability and stability for various filaments. Relying on hardware advantages (all-steel body, precise linear guides, adjustable temperature nozzle/chamber, etc.), they can perfectly match all plastic 3D printing filaments, achieving perfect filament printing results and fitting their material characteristics.

Standard

Engineering

Support

PLA

Key Features

Easy to print, biodegradable, low cost

Applications

Creative products, education, simple prototypes

PLA-CF

Key Features

Carbon fiber reinforced, high rigidity, lightweight

Applications

Brackets, model frames, simple tooling

PETG

Key Features

Balanced, impact resistant, semi-transparent

Applications

Electronic enclosures, daily containers, transparent parts

TPU 95A

Key Features

Hard elastic, wear-resistant, bendable

Applications

Seals, wearable devices, soft parts

Key Features

High transparency, high strength, high temperature resistant

Applications

Protective shells, car lamp covers, high temperature fixtures

Specifications

Printing
Print Technology	FDM/FFF
Build Volume	Single Extrusion: 420 x 400 x 420mm Dual Extrusion: 365 x 400 x 420mm
Number of Nozzles	Double
Auto Rising Extruders	Yes
Layer Resolution	0.05 mm
Filament Diameter	1.75 mm
Filament Compatibility	PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, etc, PPS-CF, etc, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF
Nozzle Diameter	0.6mm (0.3, 0.4, 0.6, 0.8,1.0mm) Optional

Temperature
Max. Nozzle Temperature	420 ℃
Max. Bed Temperature	120 ℃
Hot Chamber Temperature	70 ℃

Speed
Max Print Speed	600 mm/s
Flow Rate	90 mm³/s

Electrical
Power Requirements	100~120 V \| 210-240V
Display	7 inch touch screen
Rated Power	100-120V 2700W \| 210-240V 3200W
File Transfer	USB/U disk / WiFi / LAN

Software
Software	CreatWare, Orca Slicer, Cura, Simplify3D,Prusa, etc
Supported File Types	Gcode, STL, 3MF, OBJ, AMF, STP, STEP
Operating Systems	Windows ALL / Mac OS

Special Function
Air filter	HEPA+Carbon
Filament Detection	Pause Printing
Firmware	Klipper - High Speed
Camera Control	Camera Remote Monitoring
Bed Leveling Technology	Eddy Current Leveling
XY Offset Technology	HD Camera Dual Nozzle Offset
Z Offset Technology	Dual Photoelectric Sensor
Nozzle Shutter Technology	Dual nozzle shutter
Door Opening Detection	Yes
External Air Cooling	Yes

Mechanical
Build Plate	Aviation Aluminum Plates + Removable magnetic sheet
Build Plate Leveling	Automatic
Extruder	Smart Dual Extruders
Auto-Raising Extruders	Yes
X/Y Positioning Precision	0.00375 mm
Z Positioning Precision	0.00156 mm

Size & Weight
Product Dimensions & Weight	785 x 700 x 985mm 110kg
Packing Size & Weight	830 x 760 x 1090mm 140kg

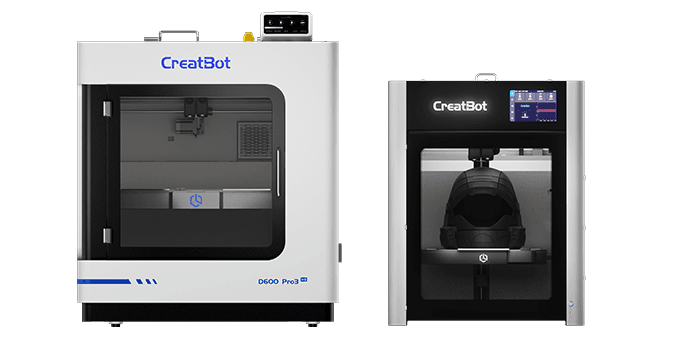

NEED HELP DECIDING?

We've put together a comprehensive comparison of our 3D printers, so you can find the one that's right for your needs.

Compare Printers

Frequently Asked Questions

What is the D400 HS best used for?

The D400 HS is built for professional, large-format prototyping and production. It excels at functional prototypes, tooling, jigs & fixtures, molds, and end-use parts across automotive, aerospace, consumer goods, and general manufacturing—especially when engineering-grade materials are required.

How much time can 600 mm/s high-speed printing actually save?

With a stable 600 mm/s print speed and a 90 mm³/s peak flow rate, the D400 HS can deliver up to 5× faster output compared with conventional machines. That means large prototypes and production parts can move from days to hours, dramatically accelerating design validation and throughput.

Can it print engineering materials like nylon and carbon fiber?

Yes. The 420 °C high-temp hotend, heated build plate, and actively heated chamber enable reliable printing of PA-CF, PA-GF, nylon, PC, ABS, ASA, PET-CF, and other engineering filaments. The integrated filament dry room also keeps hygroscopic materials ready to print.

Is it easy to operate for a typical engineer?

Absolutely. The 7-inch touchscreen, Klipper-based firmware, automatic mesh bed leveling, full-auto dual-nozzle calibration, and intuitive slicer workflow mean a standard engineer can be up and running quickly with minimal training.

Can high-speed printing still maintain high precision?

Yes. Deeply optimized Klipper motion control, a topologically optimized lightweight printhead, four independent Z-axis motors with real-time anti-tilt correction, and 0.001 mm eddy-current bed leveling work together to keep dimensional accuracy and surface finish excellent even at 600 mm/s.

What practical benefits does the dual-extruder system offer?

The dual-extruder setup supports multi-material and multi-color prints, lets you print complex geometries with soluble or breakaway supports, and provides a backup mode that can switch to the second nozzle if the first runs out of filament. The automatic nozzle shutter prevents oozing and cross-contamination.

What does the active 70 °C heated chamber do for engineering materials?

The active heated chamber maintains up to 70 °C, minimizing internal thermal stress, warping, and layer delamination when printing ABS, ASA, PA-CF, nylon, PC, and other engineering materials. It also reduces moisture effects on hygroscopic filaments, improving part strength and repeatability.
