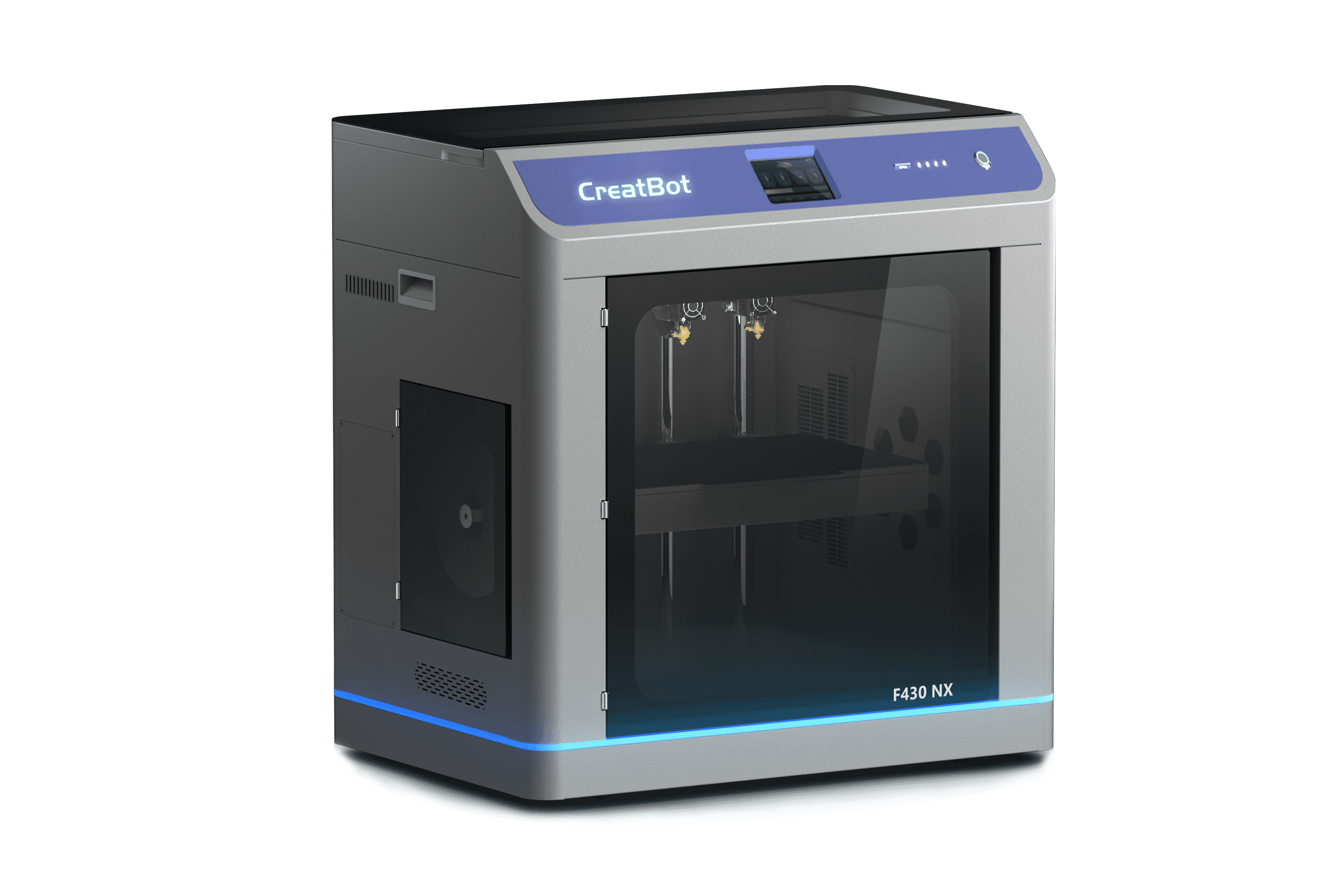

F430 NX

A new generation of professional-grade high-speed 3D printer

The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers, with a cumulative global sales volume of more than 5,000 units. Now, the new generation product F430 NX of this series has been released. It has a more advanced design concept and profound technical reserves, with powerful performance and no shortcomings. It has a brand-new appearance design; high-precision machined parts are used as the structural framework; the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing. The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.

What makes the F430 NX to be the most welcomed 3d printer product?

The CreatBot F430 NX is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.

Big Build Volume
400*300*300mm
High Resolution
0.04mm
IDEX printing
Single printing
Dual printing
Copy printing
Mirror printing
Compatible Filament

Consumer-grade:
PLA, PETG, PLA-CF, etc

Industrial-grade:
ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF, etc

Support materials:
S-Multi, S-PAHT, etc

Heat Control System

Hotend 420°C dual

Hot Bed 120°C

Hot Chamber 70°C

1. POWERFUL EXTRUSION SYSTEM
  • Independent Dual Extruders (IDEX)
  • Titanium alloy extrusion head
  • Quick-swap hotends
  • 420°C silicon carbide nozzle nozzles
2. ACTIVE HEATED CHAMBER
  • Chamber up to 70°C
  • Heated bed up to 140°C
3. MASSIVE PRINT VOLUME
  • 400*300*300mm (Single printing)
  • 360*300*300mm (Dual printing)
  • 225*300*300mm (Copy)
  • 190*300*300mm (Mirror)
4. HIGH SPEED READY
  • Speed 100-300mm/s
  • Z axis strengthening
5. MATERIAL OPERATIONS SYSTEM
  • Filament drying room 70°C
  • Auto Filament Switching
  • Engineering-grade materials
  • Carbon/Glass fiber ready
6. USER EXPERIENCE
  • Flexible build plate
  • Build-in Camera
  • 5” capacitive touchscreen
  • Connectivity via WiFi or Ethernet
  • Status-breathing atmosphere light
7. SAFETY
  • 50db working
  • HEAP and Carbon filter
  • Fault signal light
  • Thermal runaway protection

High temperature hotend 420°C

Using the latest technology of one-piece die-cast memory alloy hot end and super wear-resistant nozzle, temperature resistance up to 420°C. Compatible with PLA, ABS, ASA, PC, nylon, carbon fiber, and glass fiber materials. The nozzle aperture wear rate does not exceed 10% after printing carbon fiber materials for 2000 hours.

Independent Dual Extruders (IDEX)

This is the best solution for printing engineering-grade materials with independent support materials, ensuring the best quality of engineering-grade material printing. It also supports copy, mirror, and backup mode printing.

Big build volume

The printing size of single printing reaches 400*300*300mm, and the printing size with support materials reaches 360*300*300mm. The printing size is larger than that of most professional-grade products on the market.

Z axis reinforcement

The back side of the Z-axis is composed of a high-precision ball screw and 4 reinforced optical axes, with high-precision tight fit and synchronous movement. The surface of the model is uniform and free of impurities, improving the printing surface quality of engineering-grade materials.

Active heating of hot bed/chamber

The active heated bed heating temperature reaches 140°C and the active chamber heating temperature reaches 70°C. It effectively prevents the shrinkage and cracking of engineering-grade materials, allowing ABS, ASA, PC, Nylon, UltraPA-CF, etc. to be perfectly formed and the mechanical properties to be maximized.

Superior Dimensional Accuracy

The F430 NX is specifically designed with a tight combination of high-precision machined structures to maintain dimensional accuracy and tight tolerances when printing the largest parts in engineering-grade materials. Not only does the Method XL avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.

High-resolution touch screen

Adopting 5-inch high-resolution capacitive touch screen, it has no delay in operation, delicate touch, user-friendly interface and convenient operation and management.

Technical Specs

PRINTING
Print Technology FFF
Build Volume Single printing: 400*300*300mm
 Dual printing: 360*300*300mm
 Copy mode:225*300*300mm
 Mirror mode:190*300*300mm
Number of Nozzles Dual
Independent dual nozzles Yes
Min layer height 0.05mm
Filament Diameter 1.75 mm
Filament Compatibility PLA, ABS, Carbon, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, TPU, ASA, PETG, etc.
Nozzle Diameter 0.4mm (0.3 0.5 0.6 0.8 1.0mm)
Print File Type GCODE, STL, STEP
TEMPERATURE
Max. Nozzle Temperature 420 ℃
Max. Bed Temperature 140 ℃
Max. Chamber Temperature 70 ℃
SPEED
Printing speed 50-300mm/s
ELECTRICAL
Power Requirements 240V, 50-60Hz / 110V , 50-60Hz
Max. Power 240V: 3200W / 110V: 2500W
Screen 5" Touch Screen
Connectivity USB/USB disk / WiFi
SOFTWARE
Software Bundle CreatWare, Simplify 3D, Cura,Slice 3r
Supported File Types STL, OBJ, AMF
Operating Systems Windows All; Mac OS
SPECIAL FUNCTION
Outage Restored Sava data when power is off
Filament Detection Pause printing when filament clock or run out
Automatic leveling bed Yes
Automatic Shut-down Turn off the power when printing is complete
Camera Control Yes
WIFI &Ethernet Yes
Breathing light Yes
Back up model Yes
HARDWARE
Air filter HEPA+Carbon
Print bed Removable magnetic platform( base on high-precision aviation aluminum plate)
Print surface PEI sheet+ PEI coating
Mainboard 32 bits
X/Y min&max Photoelectric switch
SIZE & WEIGHT
Product Dimensions & Weight 780* 550 800mm 78kg
Packaging Dimensions & Weight 865* 635*1055mm 107kg
