CreatBot PEEK-300

THE LEADER OF

ULTRA HIGH PERFORMANCE

3D PRINTER

  • Ultra high temp. nozzle/bed
  • Advanced Thermal System
  • Direct Annealing System
  • Water cooling/ Heat isolation system
  • Medical/Industry application

COMING SOON!

CreatBot new product icon

Temperature control iconWhat concept do you need to know first?

    • Heat control system
    • High temp. hotend
    • hotbed
    • hot chamber
    • Direct Annealing System
    • Cooling system
    • liquid cooling
    • Air pump cooling

Parameter configuration iconWhat parameters make us exciting?

    • Hotend max. 500°C with dual extruder
    • Heatbed max.200°C
    • Hot chamber max. 120°C
    • Build volume: 300 x 300 x 400 mm
    • Triple heat isolation and liquid cooling system

New technology iconWhat new technology can we except?

The Direct Annealing System (DAS) is a revolutionary technology designed and patent protected by CreatBot. It is the most advanced technology applied to 3D printing high performance material.

High performance material iconWhat printing materials are available?

    • Engineering Plastics: PLA, PC, ABS, PA6, PETG, PVDF, POM-C, PP, TPU
    • High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
    • Ultra performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc

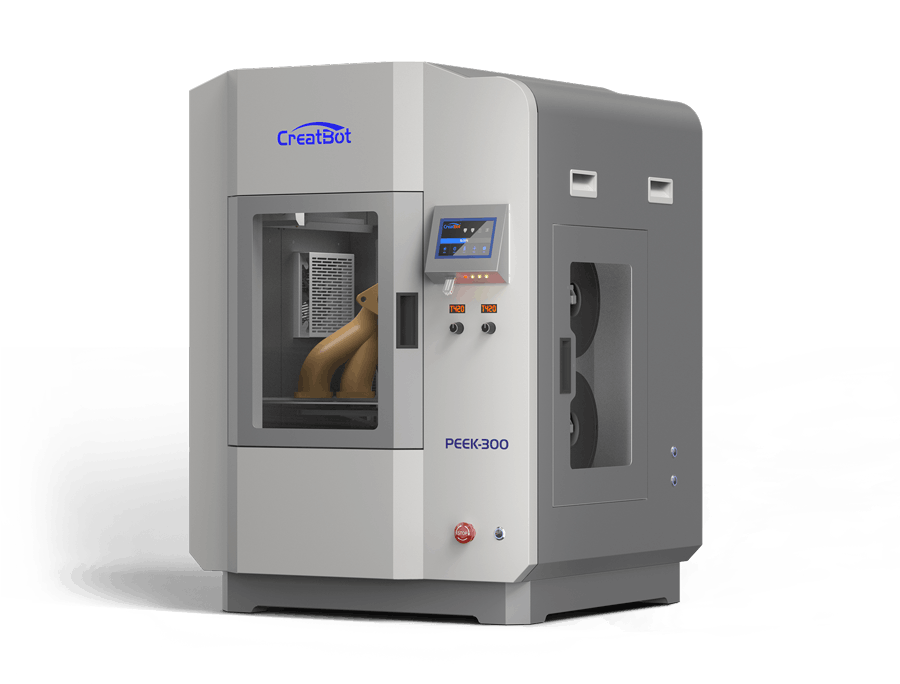

CreatBot PEEK-300

CreatBot PEEK-300 is an industrial grade 3D printer, focusing on high performance materials such as PEEK, PEKK, PEI (Ultem), etc. It is designed for high reliability and economical 3D printing of high performance functional materials. CreatBot has more than three years of PEEK 3D printer manufacturing experience, and has a wealth of 3D printing experience and material identification experience for various high performance materials such as PEEK, Ultem. Our headquarter is located in Zhengzhou City, Henan Province, China, and we have multiple manufacturing and research facilities dedicated to the highest manufacturing design and quality standards. PEEK-300 came into being in 2019.

We can guarantee that PEEK-300 3D printer is comparable to any PEEK 3D printer in performance as far as you know. PEEK-300 3D printer's leading position in the world is determined by the temperature of the nozzle, hot bed or constant temperature chamber, water cooling system and the world's most advanced controlled thermosetting technology. However, it is more competitive and attractive in terms of price, and it is suitable for the customization needs of high-performance materials in scientific research, medical, military, and advanced manufacturing.

Internationally, our company works with industry leaders, to provide state-of-the-art 3D printing solutions that are optimized for the specific needs of the industry and organization. Today, CreatBot 3d printers are supported and trusted by industry leaders, such as Volkswagen Group, NASA, Airbus, Bosch, TE Connectivity, School of Materials Engineering, Oxford University, Johns Hopkins University School of Medicine, China University of Aeronautics and Astronautics, and a number of confidential scientific research units in China.

partner Abb icon
partner TE-connectivity icon
partner bosch icon
partner VW icon
partner Airbus icon
partner Boeing icon
partner Hopkins-Univisity icon

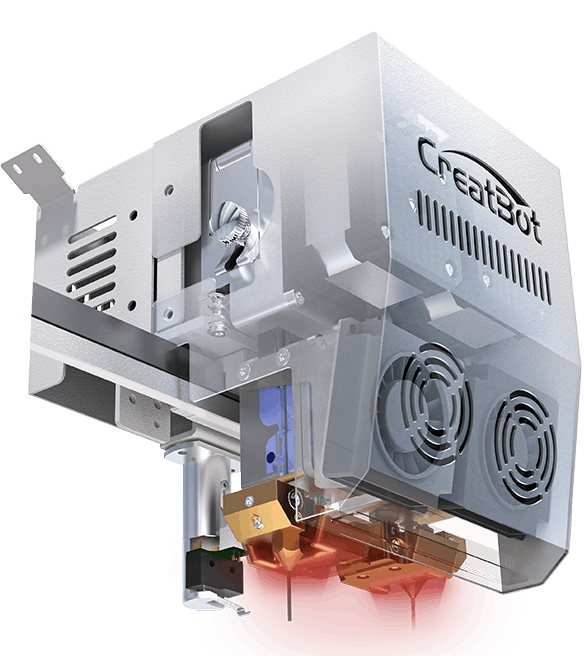

Direct Annealing Temperature: 0-400°C

Direct Annealing System (DAS), the world's first and extraordinary technology by CreatBot. Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent protected and available by CreatBot only)

Before annealing
After annealing

Nozzle 500°C

Realiable and amazing.
The conqueror of all kinds of plastics.

CreatBot peek-300 feature picture

Hotbed

Hotbed 200 ℃

Common but necessary.
Base of printing big models with no warping.



Hot Chamber 120°C

Outstanding and important.
The protector of no cracking printing.

Hot Chamber

Triple heat isolation

Triple Heat Isolation

Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is guarantee of ultra performance and safety.



Cooling System

Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.

Cooling system

CreatBot D600 feature picture

HEPA Air Filtration

The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.


CreatBot peek-300 feature picture

Resolution 0.04mm

0.04mm is an available resolution for normal plastics, but it is an extraordinary resolution for high warping and high deformation materials. 3D printing high performance material need not only high temperature, but better cooling. For high resolution with high small details, high temperature will ruin layers to a mess if heat and cooling are not in a balance.

Resolution 0.04mm

0.04mm is an available resolution for normal plastics, but it is an extraordinary resolution for high warping and high deformation materials. 3D printing high performance material need not only high temperature, but better cooling. For high resolution with high small details, high temperature will ruin layers to a mess if heat and cooling are not in a balance.

Material Performance Comparison Chart

Material performance comparison chart

Product Parameter

Printing
Build Volume 300*300*400mm
Print Resolution 0.04mm-0.4mm
Filament Diameter 1.75mm
Number of Nozzles Dual Extruder
Print Speed 10-150mm/s
Nozzle Diameter 0.4mm (0.3~1.0mm optional)
Filament Compatibility Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP
Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc.
Software
Software Bundle Creatware, Simplify3D, Cura, Slice3r
Operating Systems Win7/8/10
Print File Type STL, OBJ, AMF, Gcode
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Direct Annealing System (DAS) Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
Heat insulation Triple heat insulation
Emergency stop switch Support emergency stop
High temperature accessories High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.
Temperature
Nozzle Max. Temperature 500℃
Chamber Temperature 120℃
Platform Max. Temperature 200℃
Direct Annealing Temperature 0~400℃
Mechanical
Cooling Air pump cooling & water cooling
Platform PCB aluminum + PEEK print board
Positioning Precision X Y axis 0.01mm, Z axis 0.0025mm
Extruder Directly Drive
Machine Construction Fully enclosed hot chamber
Bed Leveling Manually/Automatic
Electrical
Input Power 200V~240V, 20A
Max. Power 3000W
Screen 4.3'' full color touch screen, multi-language
Print Method USB Connectivity/USB Disk
Size & Weight
Machine Size 650*600*750 mm
G.W 100 kg
Packing Size 820*720*1080mm
N.W 130 kg

Specs Comparison With Other Brands

CreatBot PEEK-300 Stratasys F370 Intamsys Funmat Pro410 Apium M220
Place of origin China USA China Germany
Build Volume (mm) 300*300*400 355*254*355 305*305*406 170*170*130
Max Nozzle temperature 500°C 300°C 450°C 540°C
Max Chamber temperature 120°C 90 °C 90 °C
Max hot bed temperature 200°C 160°C
Temperature around the part is controlled 0-400 °C None None 0-200 °C
Min layer resolution 0.04 mm 0.013mm 0.05mm 0.1mm
Number of extruder 2 2 2 1
Build platform Carbon fiber sheet Ceramic Glass Medical grade material
Materials PEKK, PEEK, medical PEEK, Carbon-PEEK, ULTEM, PEI, PPSU, PA/CF, PC, PA Alloys, PA6, PA12, ABS, Carbon Fiber, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, TPU 65A,ETC. PLA, ABS, ASA, PC-ABS, TPU 92A PEEK,PEI,PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, ETC. Medical PEEK
Machine size 650*600*750 964*711*1626 720*680*1470 850*685*675
Weight 120kg 227kg (with cabinet) 200kg (with cabinet) 66kg
Price Less than $12,000 $59,900 $26,999 €65,000
