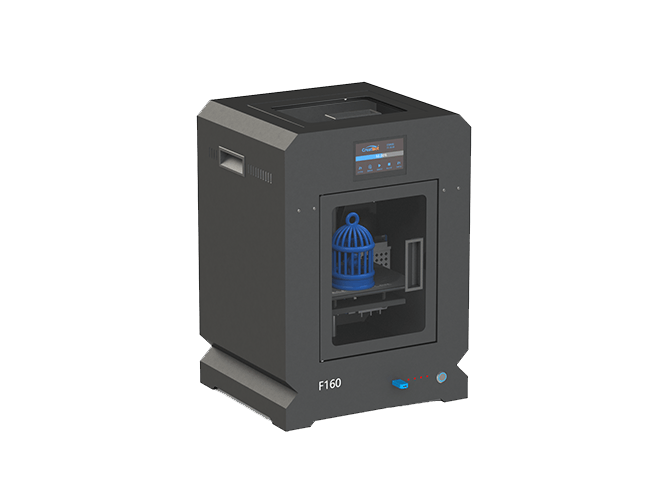

CreatBot F160

ULTRA HIGH PRECISION/SPEED

DESKTOP 3D PRINTER

Powerful for education and small makers

Metal Hotend
420° Hotend
High Precision
Metal Chassis
Outage Saving
Filament Checking
BuildTak Platform
Touch Screen
Direct Drive
Fully Enclosed

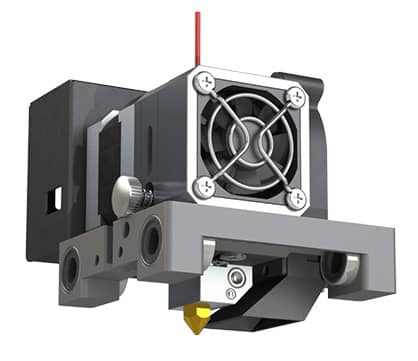

Support 420°C Hotend

We are the first one to publish 420°C high temperature nozzle to 3d printer market. This kind of nozzle allow to print with a variety of filaments. The nozzle height can also be micro adjusted. (Default support 260°C, contact us for 420°C.)

420 degree hotend icon 420°C Hotend

direct drive icon Direct Drive

F160 420 degree hotend

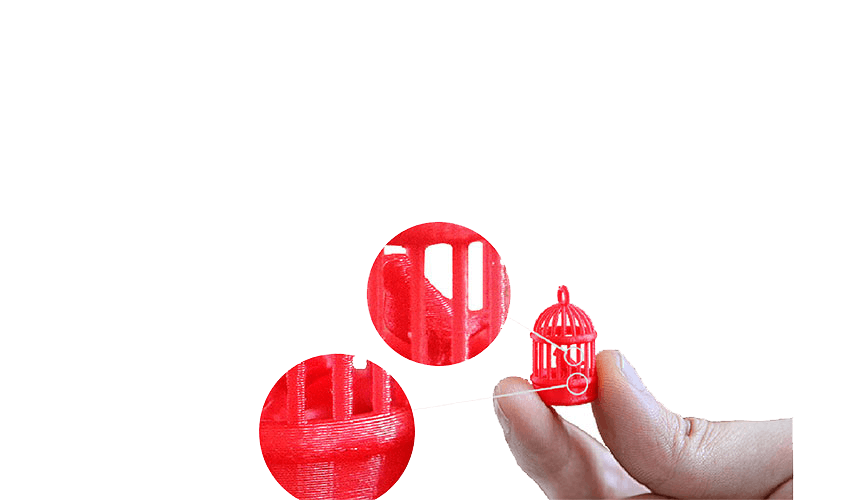

High Precision & High Speed

We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

Precision up to:
0.04 mm

Speed up to:
120 mm/s

high precision icon High Precision

f160 high precision sample

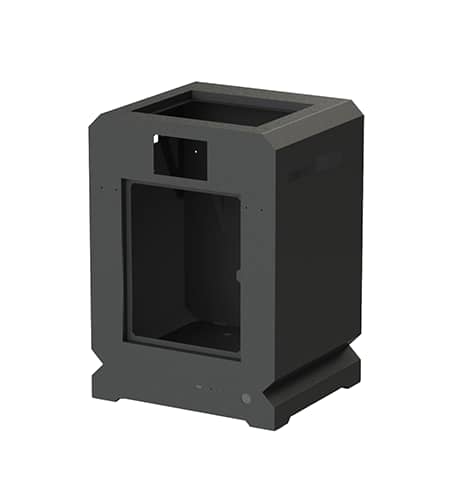

Stability

The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

metal chassis icon Metal Chassis

f160 metal chassis

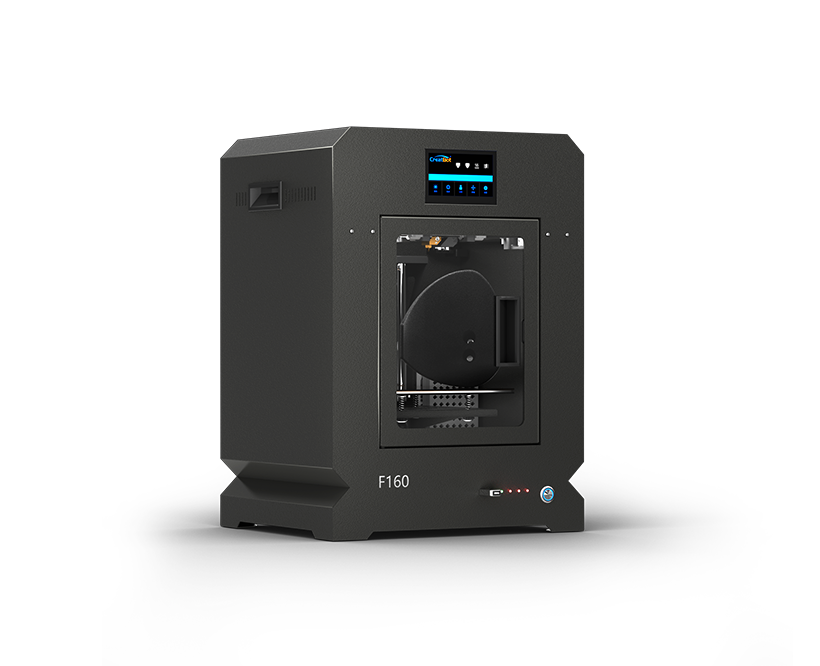

Fully Enclosed High-Temperature Chamber

Fully enclosed chamber can block all external interference and reduce noise. Hot chamber can provide constant room temperature so that model won’t deform when printing.

fully enclosed icon Fully Enclosed

f160 fully enclosed chamber

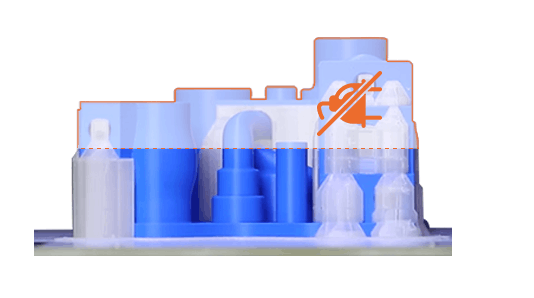

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.

The printer will avoid invalid printing by stoping print and warning when filament runs out.

CreatBot F1000 feature picture Outage Restored

CreatBot F1000 feature picture Filament Detection

CreatBot F1000 feature picture

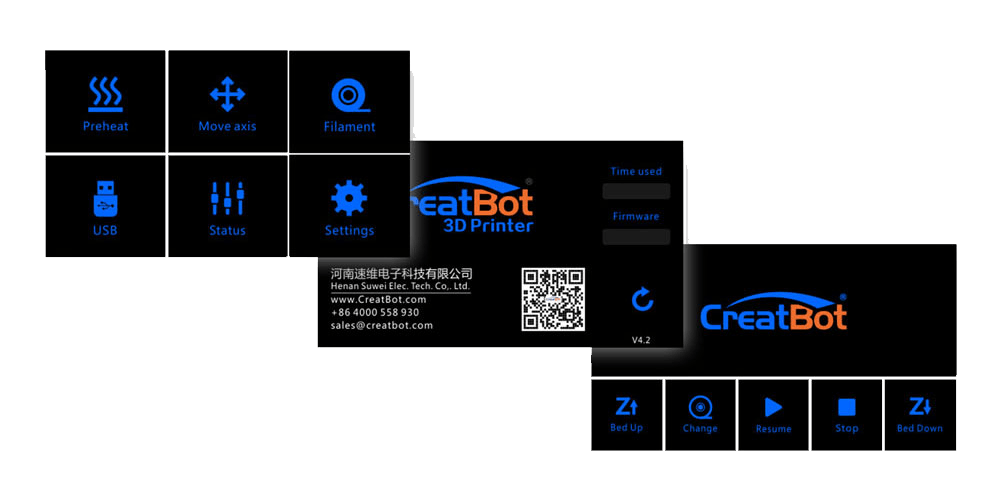

Touch Screen

The printer have all-English-menu touch screen which is easy operate and friendly use. One key to warm,one key to print as p-4 rounded-lg bg-light border as many other shortcut keys.

touch screen icon Touch Screen

f160 touch screen

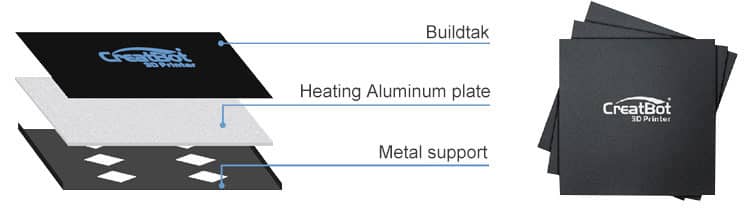

Efficiently Platform & 150°C Hotbed

The hotbed is made of heatable aluminium PCB, which can be heat up to 150°C fast. The platform is attached with 3d printing stickers buildtak. Printed object can be stick on the buildtak tightly and won’t get deformed.

buildtak film icon BuildTak Platform

f160 buildtak film

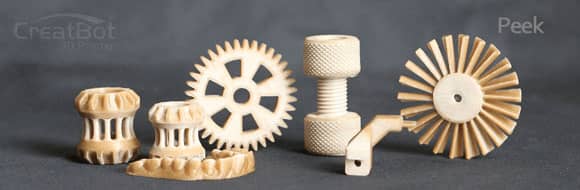

Filament & Application

Standard F160 are able to print PLA,ABS,Nylon,etc perfectly. The F160-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK filament as p-4 rounded-lg bg-light border , which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wear resistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries.


Technical Specs

Printing
Print Technology Fused Deposition Modeling
Build Volume 160*160*200 mm
Number of Nozzles Single
Resolution 0.04 mm
Layer Resolution 0.01 mm
Filament Diameter 1.75 mm
Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA,PEEK, etc.
Nozzle Diameter 0.4 mm(0.3 0.5 0.6 0.8 1.0 mm)
Print File Type STL, OBJ, AMF, Gcode
Electrical
Power Requirements 100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power 340 W
Screen 4.3" Touch Screen with Multi-language
Control Chip ATmega 2560
Storage Media U Disk
Connectivity USB
Mechanical
Construction Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
Build Plate Heatable Aluminium PCB with BuildTak
Build Plate Leveling Manually
Extruder Directly Drive
Stepper Motors 1.8°Step Angle with 1/16 Micro-stepping
X Y Positioning Precision 12.7 μm
Z Positioning Precision 1.25 μm
Speed
Best Printing speed 70 mm/s
Max. Printing speed 300 mm/s
Temperature
Ambient Operating Temperature 15-32 ℃
Max. Nozzle Temperature 420 ℃
Max. Bed Temperature 150 ℃
Software
Software Bundle CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types STL,OBJ,AMF
Operating Systems Win7/8/10, MacOS
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Automatic Shut-down Turn off the power automatically when printing is complete
Size & Weight
Product Dimensions & Weight 370*320*490 mm 18 kg
Packing Size & Weight 470*420*600 mm 23 kg
