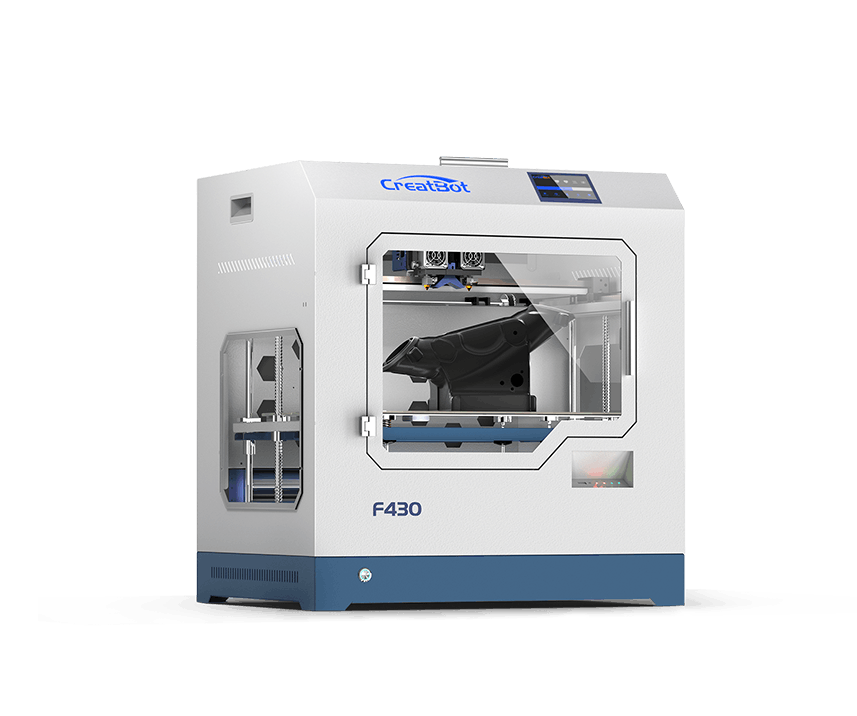

CreatBot F430

THE MOST REALIABLE

FLAGSHIP 3D PRINTER

SUITABLE FOR MULTIPLE GRADES OF MATERIALS

Build something extraordinary in your field!
Metal Hotend
420° Hotend
High Precision
Metal Chassis
Large BuildSize
Outage Saving
Filament Checking
Glass Ceramic
Touch Screen
Direct Drive
Auto Leveling
Fully Enclosed
Hot Air Chamber
Air Filter System

What makes F430 to be the most welcomed 3d printer product?

CreatBot F430 is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.

Big Build Volume
400*300*300mm
High Resolution
0.04mm
Reliable Enough
to run 24/7
Compatible Filament

-Consumer-grade: PLA, ABS, PET-G, HIPS, PVA,etc

-Industrial-grade: Glass/Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc

-High Performance:Metal Fill, PEEK,etc

Heat Control System

-Hotend 260°C+420°C

-Hot Bed 120°C

-Hot Chamber 70°C


Support 420°C Hotend

We are the first one to publish 420°C high temperature nozzle to 3d printer market since year of 2016, now it is the 4th new tech version.
F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc.
The dual hotend is replaceable, which provide more possibility on your application.

420 degree hotend icon 420 ℃ Hotend

direct drive icon Direct Drive

420 degree hotend

F430 feature picture

High Precision & High Speed

We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

high precision iconHigh Precision

Precision up to: 0.04 mm

Speed up to: 120 mm/s



Stability

The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

metal chassis icon Metal Chassis

metal chassis


F430 Fully enclosed&hot chamber

Fully Enclosed+Hot Chamber 70°C

-Fully enclosed chamber can block all external interfernce and reduce noise.
-Hot chamber device provide constant room temperature 70°C,which is able to prevent prints from warping and deform.

Fully enclosed icon Fully Enclosed

Hot Air System icon Hot Air System



Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data.
Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.

Outage Restored icon Outage Restored

Filament Detection iconFilament Detection

f430 feature picture

Touch Screen

Touch Screen

-The printer have all-english-menu touch screen which is easy - -Operate and friendly use. One key to warm,one key to print as well as many other shortcut keys.

Touch Screen icon Touch Screen

Platform

Glass-Ceramic Platform + Carbon Fiber Sheet

The printer has a heatable glass-ceramic platform and a carbon fiber sheet coverd.
Glass-ceramic have hight thermal efficiency and best low-expansion coefficient, so it don't deform when heating&cooling.
-Carbon fiber sheet is tough and removable. Heat can be deliver efficiently. Most materials can be extruded and sticked to bed very well.

glass-ceramic platform

Air Filter System

The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.

Air Filter System icon Air Filter System

F430 Air Filter System


Automatic Leveling Platform

BLtouch smart version use of 25 points, use of 25 points through the probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

Automatic Leveling icon Automatic Leveling
Glass Ceramic icon Glass Ceramic

F430 feature picture


Technical Specs

Printing
Print Technology Fused Deposition Modeling(FDM)
Build Volume 400*300*300 mm
Number of Nozzles Double
Resolution 0.04 mm
Layer Resolution 0.02 mm
Filament Diameter 1.75 mm
Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Nozzle Diameter 0.4mm (0.3 0.5 0.6 0.8 1.0mm)
Print File Type STL, OBJ, AMF, Gcode
Speed
Best Printing speed 55 mm/s
Max. Printing speed 180 mm/s
Electrical
Power Requirements 100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power 1500W
Screen 4.3'' Touch Screen
Control Chip ATmega 2560
Storage Media U Disk
Connectivity USB
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Automatic Shut-down Turn off the power automatically when printing is complete
Temperature
Ambient Operating Temperature 15 ℃~32 ℃
Max. Nozzle Temperature 420 ℃
Max. Bed Temperature 140 ℃
Max. Chamber Temperature 70 ℃
Mechanical
Construction Power-Coated Steel, Aluminum Casting for Motion Components
Build Plate Glass Ceramic Panel
Build Plate Leveling Automatic
Extruder Directly Drive
Stepper Motors 1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision 12.7 μm
Z Positioning Precision 1.25 μm
Software
Software Bundle CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types STL,OBJ,AMF
Operating Systems Win7/8/10, MacOS
Size & Weight
Product Dimensions & Weight 620*485*680 mm 48 kg
Packing Size & Weight 750*580*720 mm 62 kg
