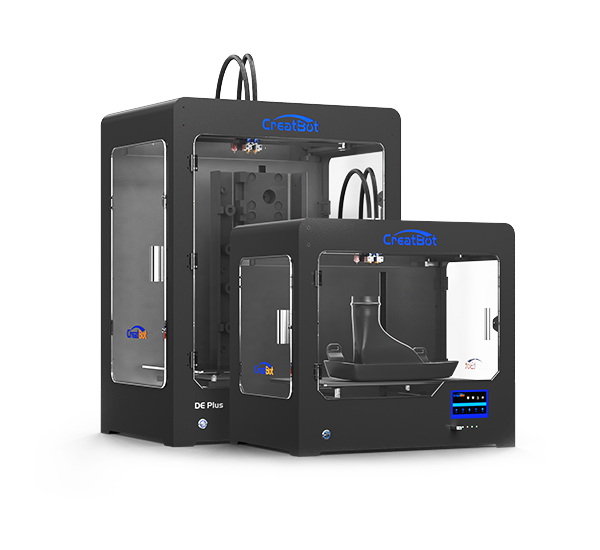

CreatBot DE/DE+

REALIABLE AND AFFORDABLE

BIG PRINT VOLUME3D PRINTER

Suitable for prototype making and 80% direct application

Metal Hotend
350° Hotend
High Precision
Metal Chassis
Large BuildSize
Outage Saving
Filament Checking
Glass Ceramic
Touch Screen
Remote Feeding
Precise Feeder
Triple Extruders

Printing Videos

DX Bearing Printing Video
DX Printing Video
DX Three Head Printing Video

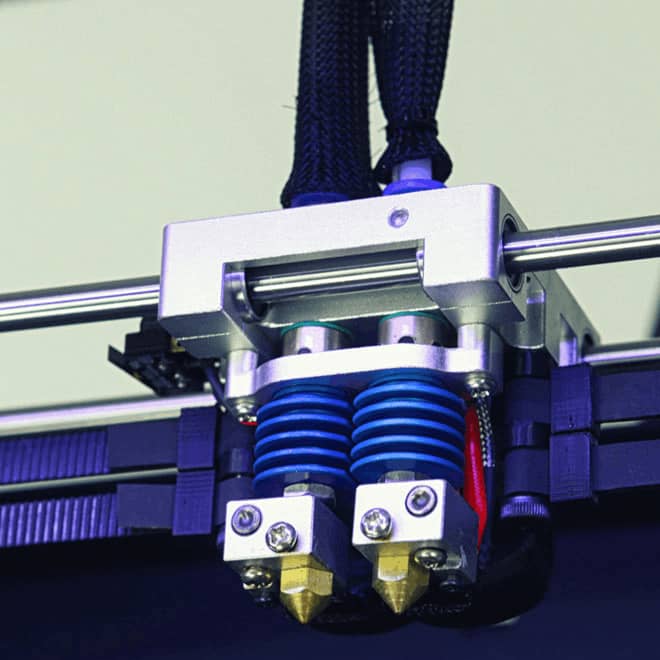

Temperature Up to 350°C

We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.

CreatBot DE All Metal Head

Metal Hotend Icon All metal hotend, more durable

350°C Hotend Icon 350°C support more supplies

Nozzle Height Adjustable Icon Nozzle height adjustable

Three Nozzle Icon Supports up to 3 hotend


High Precision

We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.

Precision up to: 0.05 mm Speed up to: 200 mm/s

CreatBot DE High Precision Sample

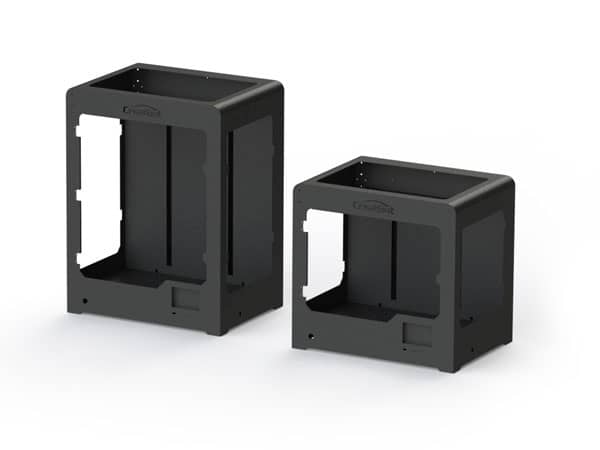

The whole-steel body not only ensure the stability when printing but alst greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.

CreatBot DE All Metal Chassis

Large Build Size

We provide variety of printing sizes for you reference. The largest build volume is 5 to 20 times bigger than it of other ordinary 3D printers in noadays market.

CreatBot DE build volume: 400*300*300 mm

CreatBot DE Large Build Size Printer

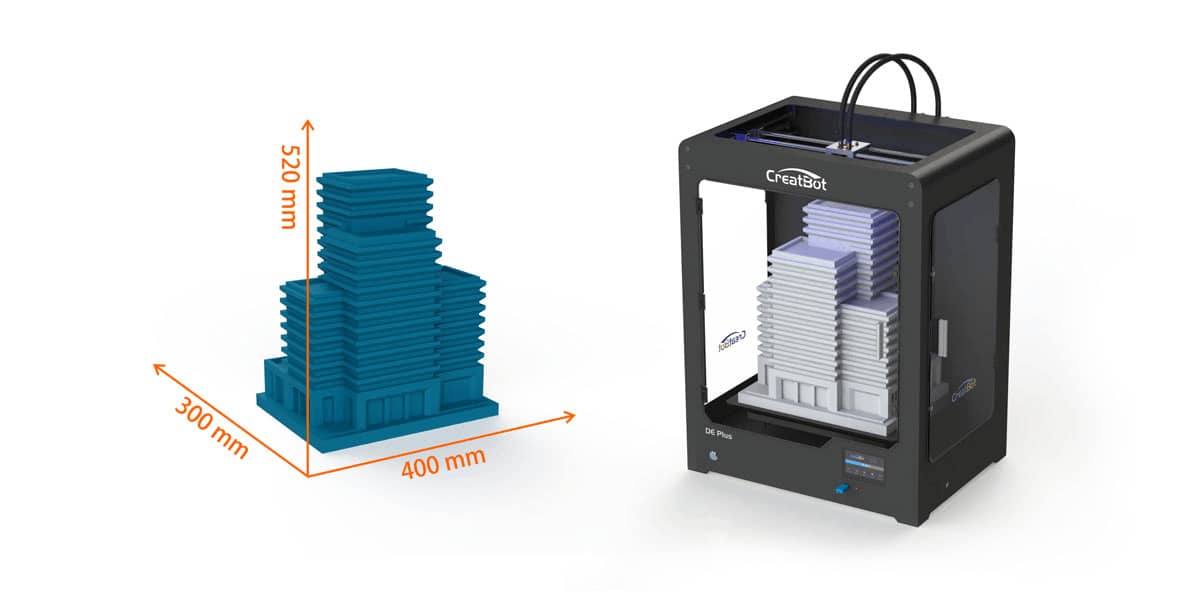

CreatBot DE Plus build volume: 400*300*520 mm

CreatBot DE Plus Large Build Size Printer
CreatBot DE feature picture

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.

The printer will avoid invalid printing by stoping print and warning when filament runs out.

CreatBot F1000 feature picture Outage Restored

CreatBot F1000 feature picture Filament Detection

Power Outage Restored Video
Filament Detection Video

Borosilicate Glass Platform

The printer equiped with borosilicate glass platform so that it can support hight thermal efficiency, you can turn off the hot bed automatically after specified number of layers by setting parameters.

CreatBot DE Glass Ceramic Platform

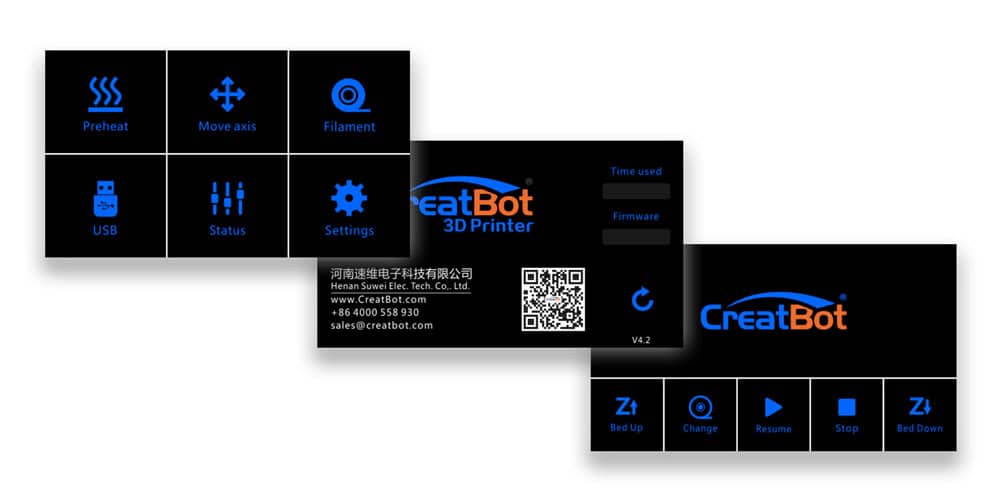

Easy Touch Screen

The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as p-4 rounded-lg bg-light border as other shortcut keys.

CreatBot D600 Touch Screen

More Features

CreatBot DE Remote Feeding System

Simple Feeding Frame

The stepper is separated with the hotend, so that the hotend is even lighter, smaller and will has less inertia of movement, also greater space utilization.

CreatBot DE Geared Feeder

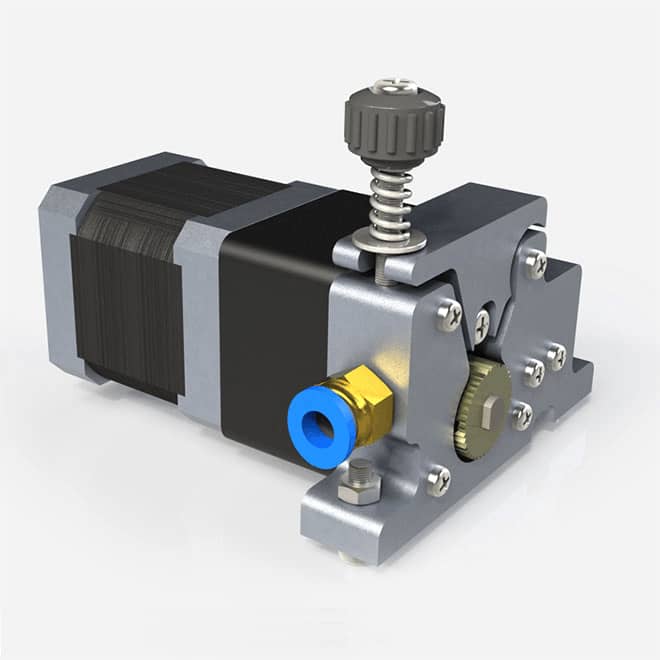

Filament Feeder

Geared motor can reduce speed intelligently and it support super torque so that it can feed filament in high precision without slipping and delay when withdrawing the filament.

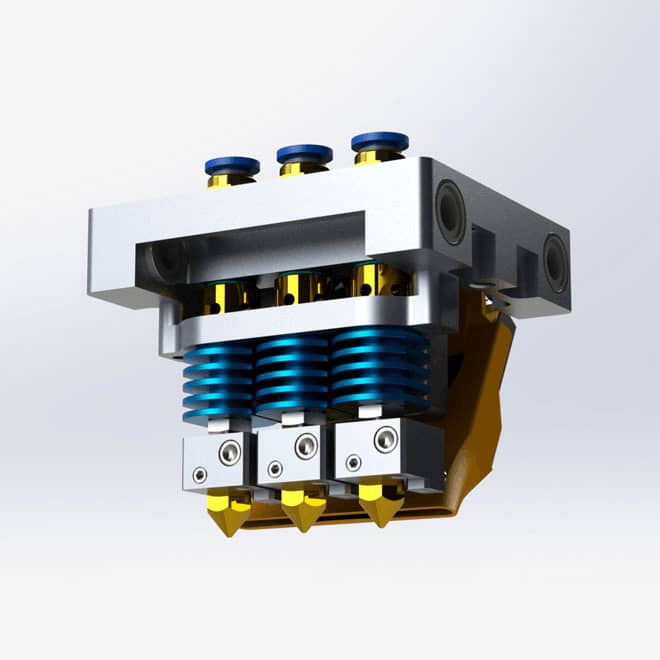

CreatBot DE Triple Extruders

Triple Extruders

upport three color printing, support printing sort of material.


Technical Specs

Printing
Print Technology Fused Deposition Modeling
Build Volume 400*300*300 mm (DE)
400*300*520 mm (DE Plus)
* 3 nozzles build width:380mm
Number of Nozzles Double (Max.3)
Resolution 0.05 mm
Layer Resolution 0.05 mm
Filament Diameter 3.0 mm (1.75 mm optional)
Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter 0.4 mm(0.3 0.5 0.6 0.8 1.0 mm)
Print File Type STL, OBJ, AMF, Gcode
Speed
Best Printing speed 45 mm/s
Max. Printing speed 200 mm/s
Electrical
Power Requirements 100V-110V or 200V-240V / 50-60Hz
(Depending on your country's default voltage)
Max. Power 360 W
Screen 4.3'' full color touch screen, multi-language
Control Chip ATmega 2560
Storage Media U Disk
Connectivity USB
Software
Software Bundle CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types STL,OBJ,AMF
Operating Systems Win7/8/10, MacOS
Temperature
Ambient Operating Temperature 15-32 ℃
Max. Nozzle Temperature 350 ℃
Max. Bed Temperature 100 ℃
Special Function
Outage Restored Save data when power is off
Filament Detection Pause printing when filament run out
Automatic Shut-down Turn off the power automatically when printing is complete
Mechanical
Construction Power-Coated Steel, Aluminum Casting for Motion Components, POM etc
Build Plate Glass Panel
Build Plate Leveling Factory Leveled, Adjust Manually
Extruder Geared motor (1:10 rate)
Stepper Motors 1.8°Step Angle with 1/16 Micro-stepping
X Y Positioning Precision 12.7 μm
Z Positioning Precision 1.25 μm
Size & Weight
Product Dimensions & Weight 590*430*560 mm 35 kg (DE)
590*430*780 mm 42 kg (DE Plus)
Packing Size & Weight 720*560*670 mm 45 kg (DE)
720*560*870 mm 55 kg (DE Plus)
