D600 Pro2 HS

Discover the leading professional large format 3D printer

D600 Pro series has been proven to be the world's most popular professional large-size 3D printer. It has undergone 6 years of market accumulation and verification. Since its launch, we have continuously upgraded and improved the D600 Pro based on user needs and feedback. So far, we have made approximately 30 improvements in product details, incorporating new technologies, and fixing issues. Make it a very stable professional large-size 3D printer, deeply preferred by small and medium-sized enterprises.

D600 Pro 2 is a brand new product based on D600 Pro that is now being released with more advanced design concepts and deep technical reserves. D600 Pro2 HS is upgraded from the model D600 Pro2,it is a new high-speed printing version based on the in-depth development of Klipper. It adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The stable printing speed can reach 300mm/s, which is 5 times the speed of the D600 Pro2 model.

It has been professionally designed, has powerful performance, and features no shortcomings. Large print volume, faster speed, stronger material compatibility, simpler operating procedures, and more stable 7/24 operation. Undoubtedly, it will capture the needs of all professional 3D printer users with a size of 600mm*3 worldwide.

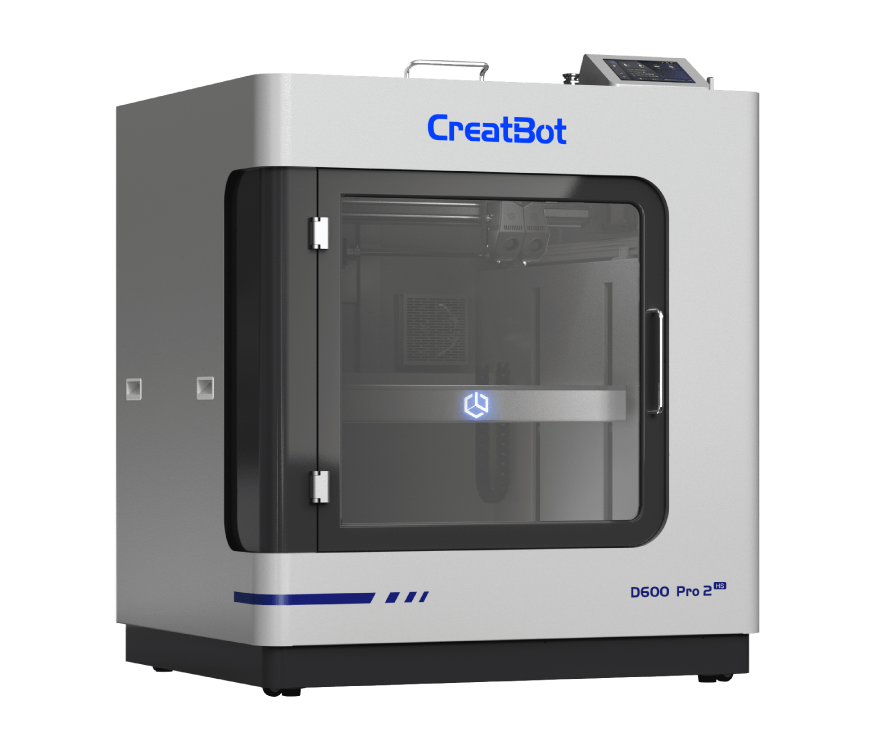

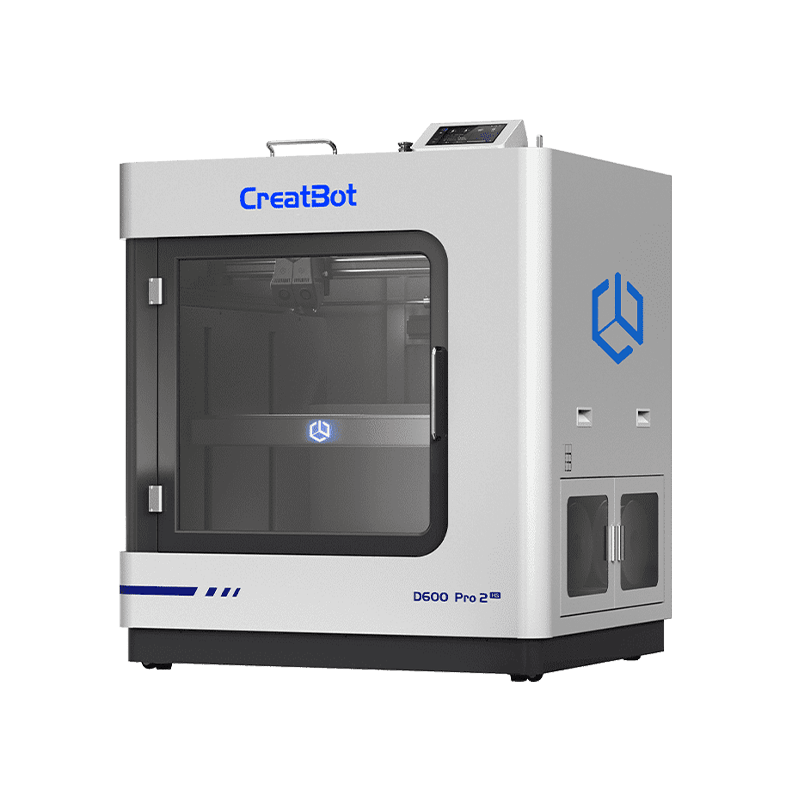

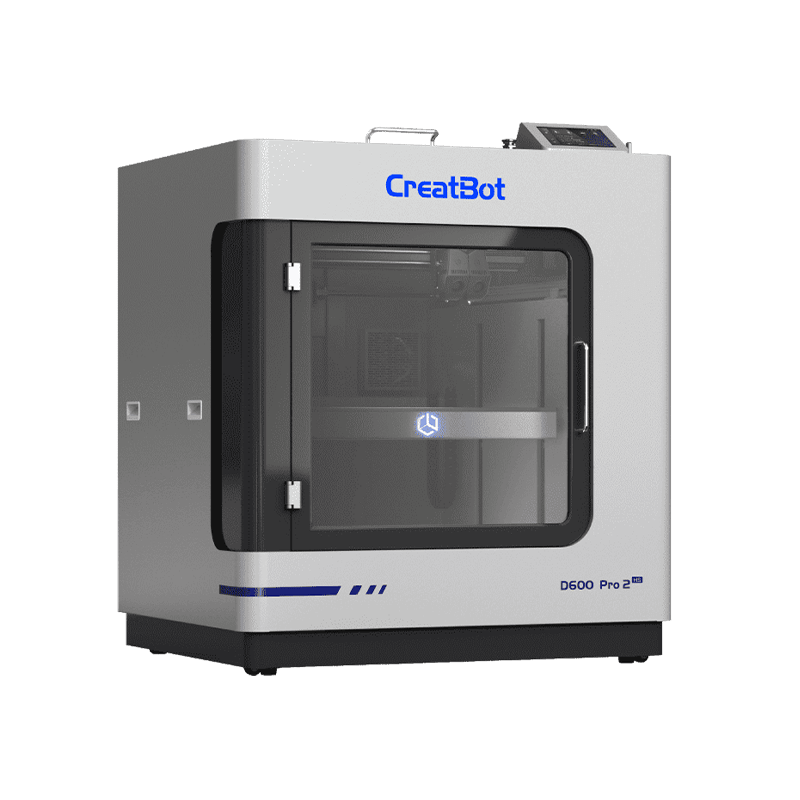

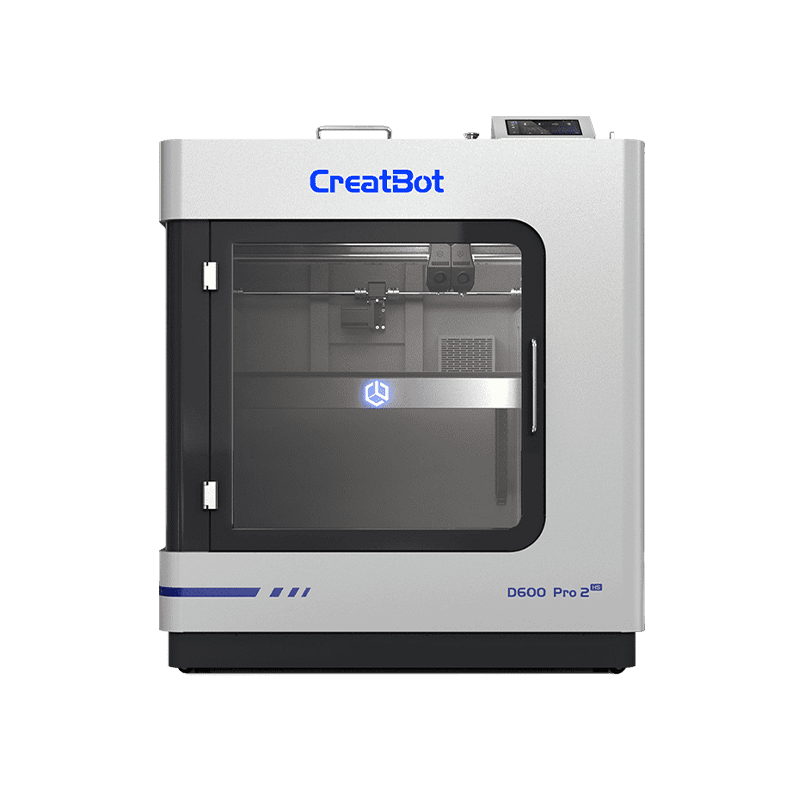

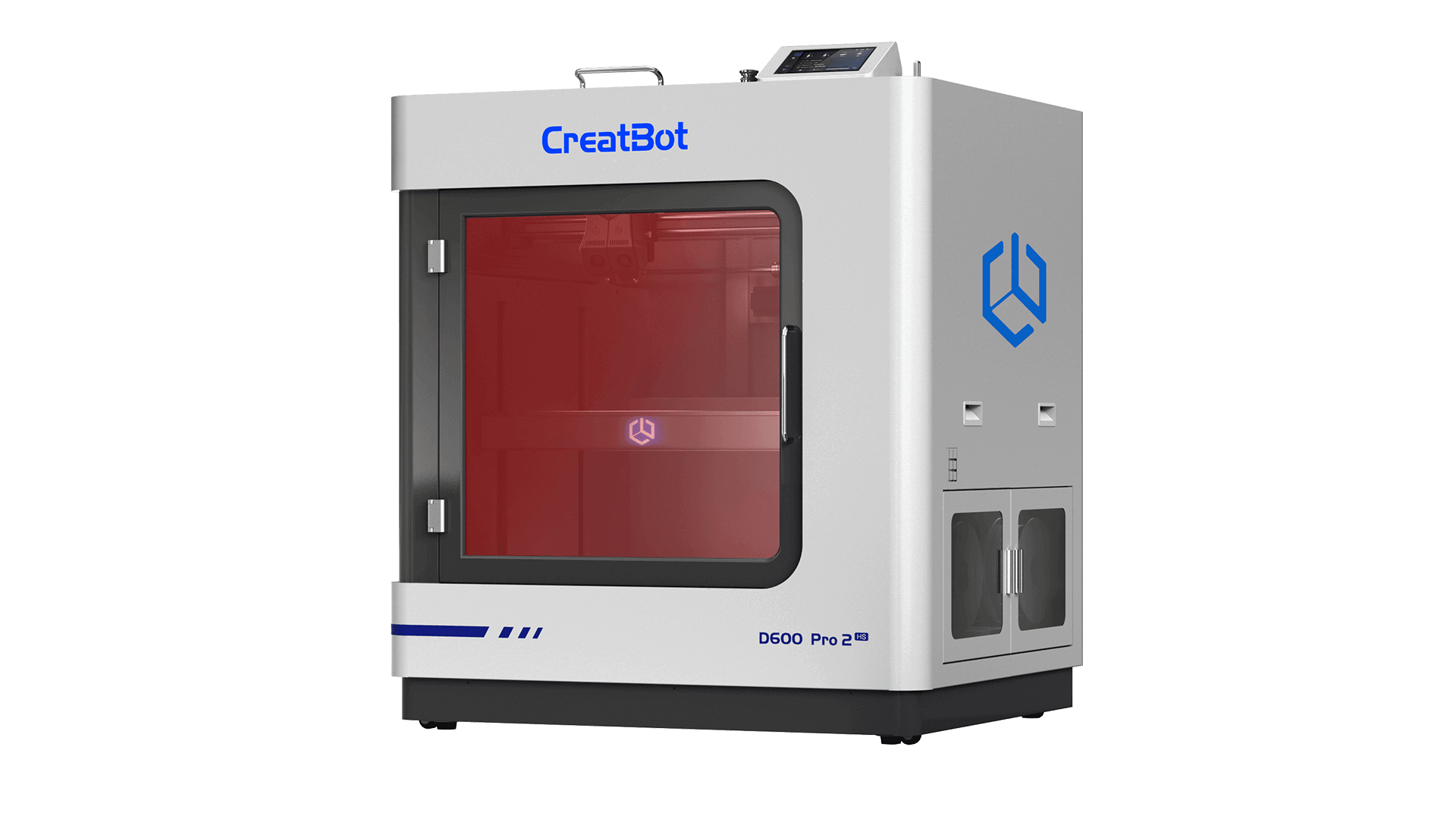

CREATBOT D600 Pro2 HS

  • 600*600*600mm
  • 420°C+100°C+70°C
  • High speed up to 300mm/s
  • Removable Magnetic Platform
  • Reliable 24/7
  • Fully enclosed

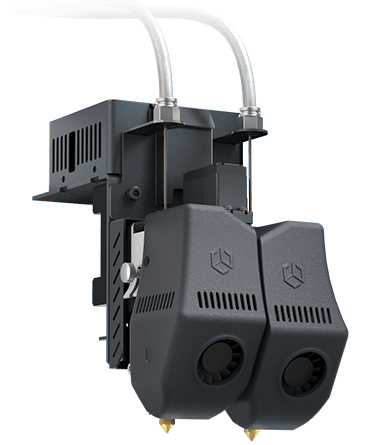

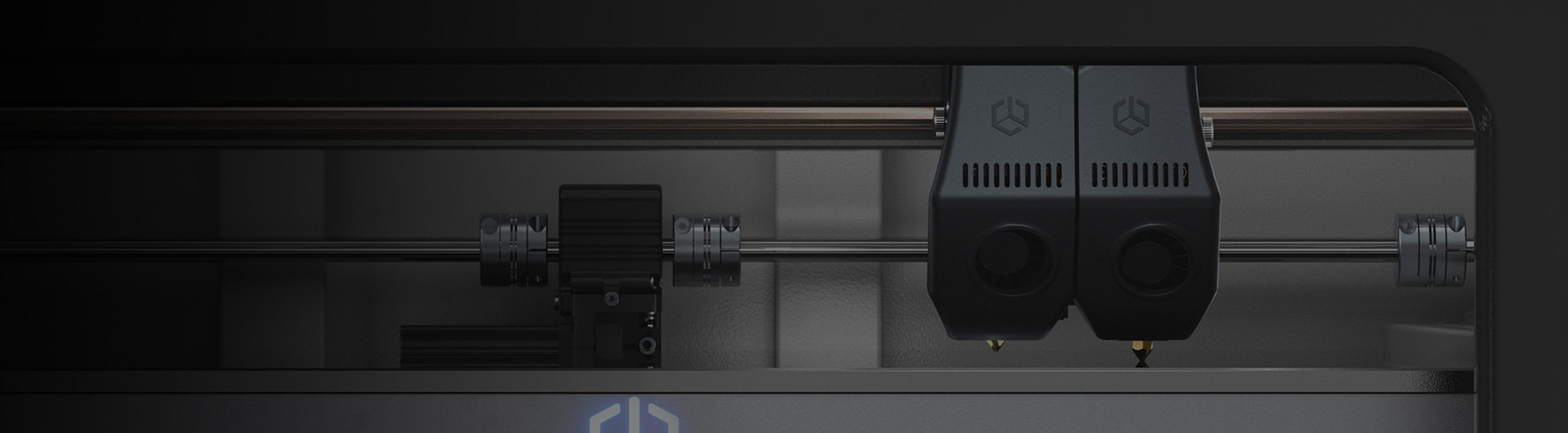

Auto-rising Dual Extruders 420 ℃

D600 Pro2 HS is embedded with new smart auto-rising dual-extruder kit with hotend temperature up to 420 ℃, it adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The hotend can be replaced to different size one fastly. it is able to print not only huge prototypes made of ABS, ASA with fastest speed, but also PET-CF, UltraPA-CF and more high performance material with quick remove support materials for direct application. The dual-hotend is easy to maintain and affordable to replace.

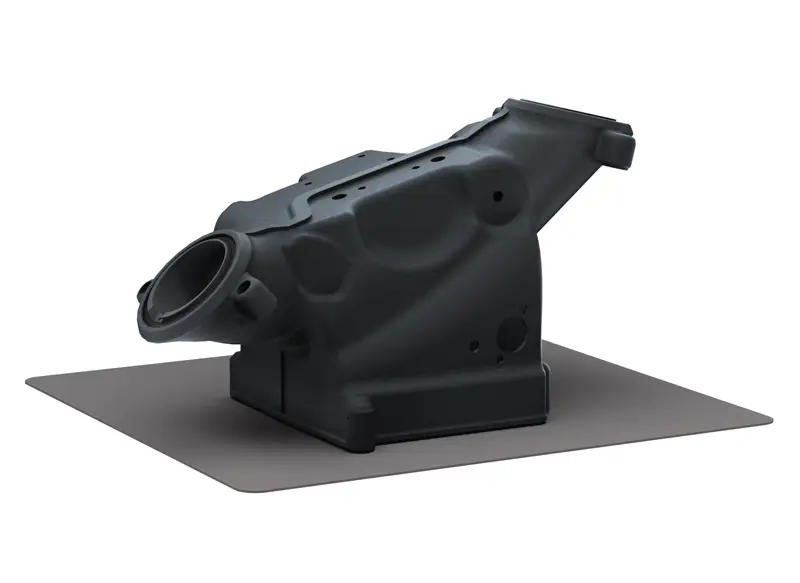

Magnetic suction platform

Exclusive R&D of magnetic platform with large size, easy removable platform, high temperature resistance exceeding 100 °C, long-term use without demagnetization.
For oversized models, it is easy to detach them quickly and the bottom of the model is flat. Convenient to all operators.

Powerful Core

32-bit motherboard, equipped with a powerful NPU core processor, can quickly respond to any program instructions without delay.

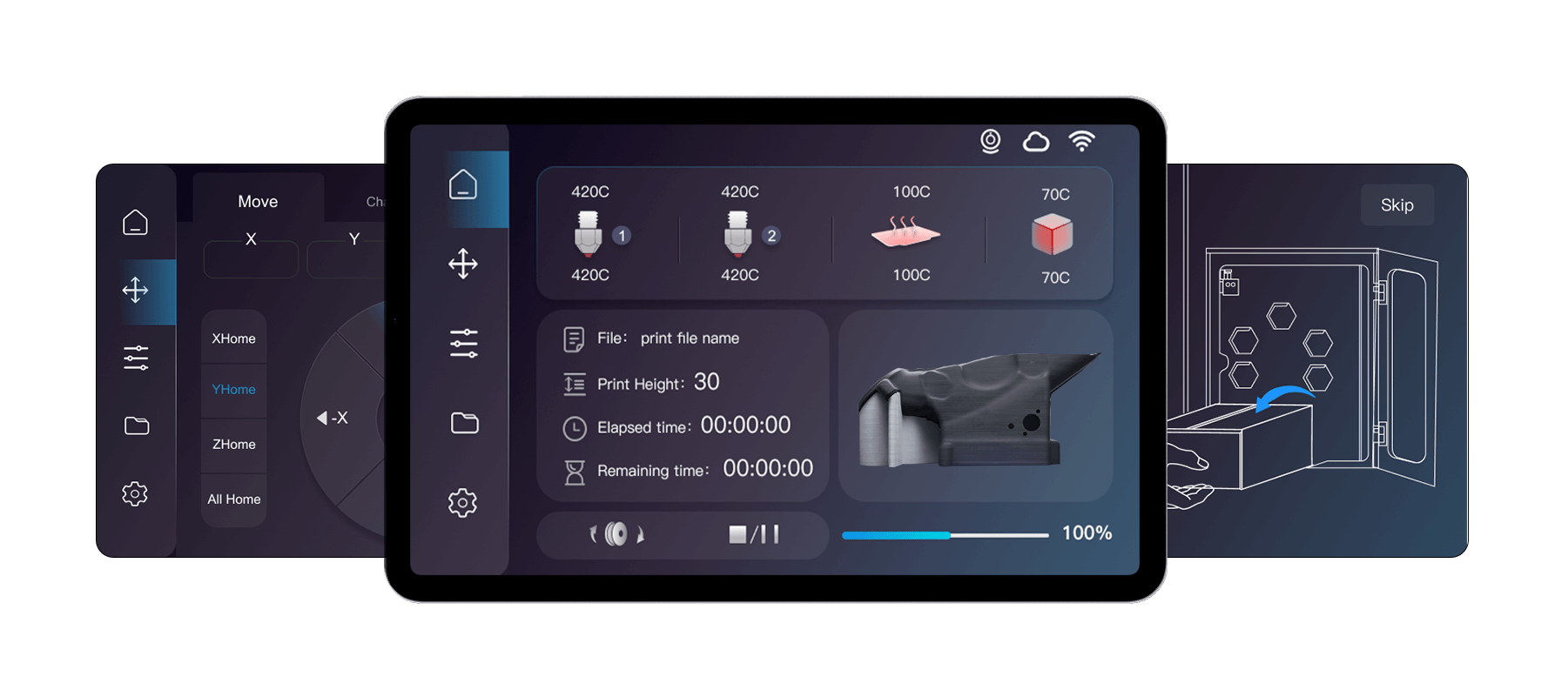

7-inch touch screen

A new UI design language, better user interaction experience, and more convenient operation.

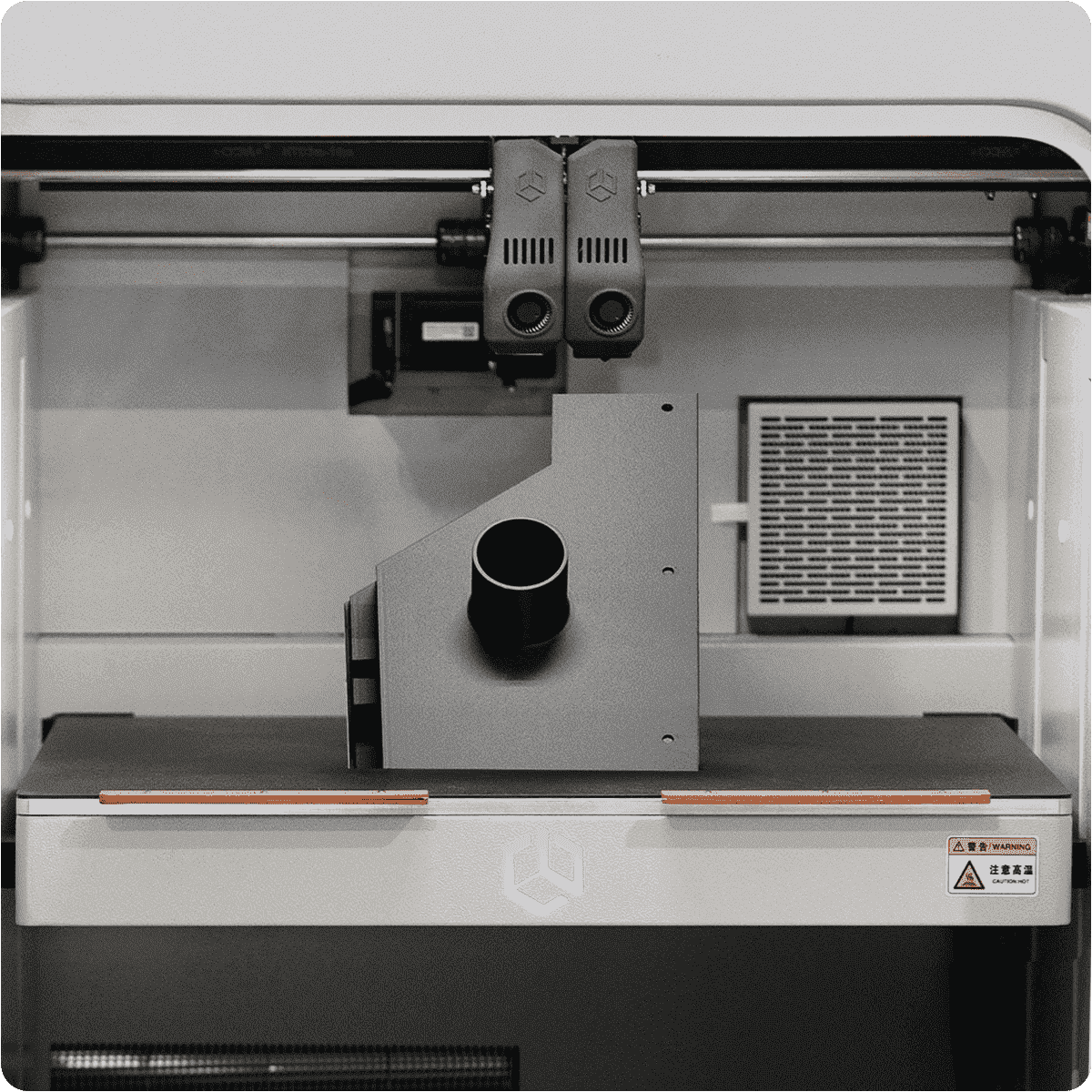

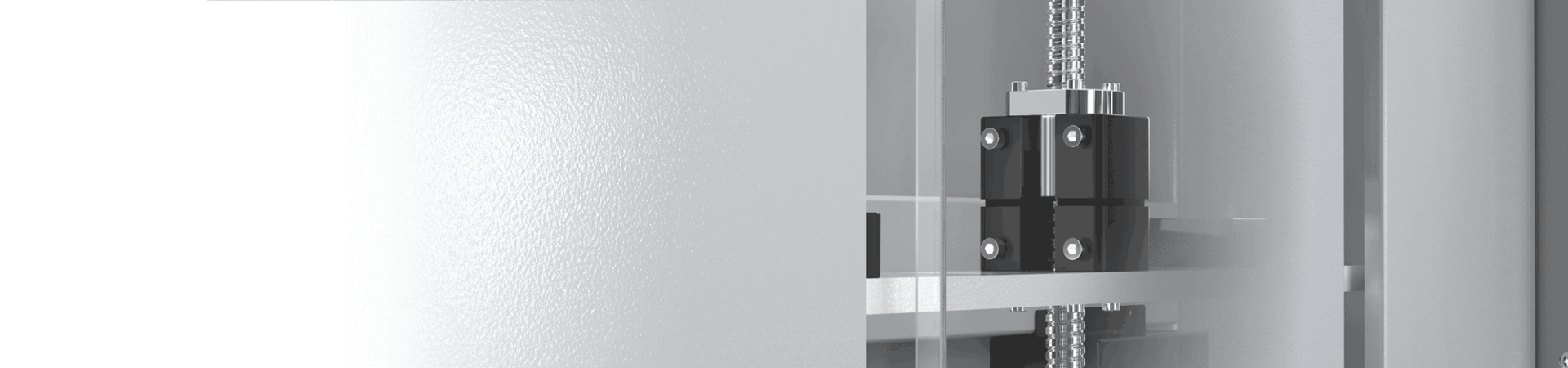

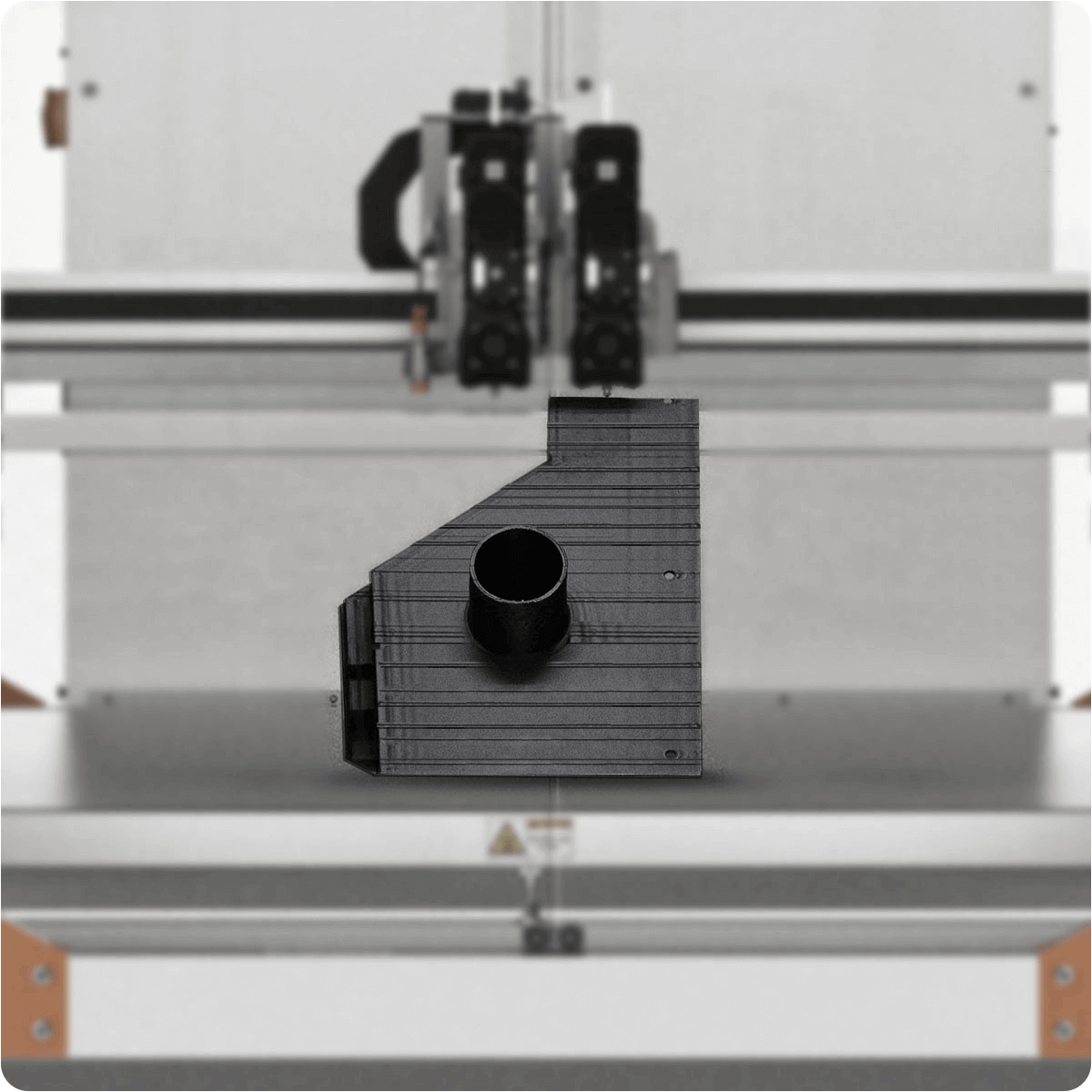

Z magic box: Perfect Z surface

For tall Z distance 3D printing devices, the texture of the Z-axis surface texture will deteriorate as the model height increases. Our Z-axis magic box technology can greatly reduce or even eliminate the Z-surface texture of tall models, ensuring that the surface quality of the model remains smooth and consistent.

Camera Control Technology

Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.

Technical Specs

Printing
Print TechnologyFDM
Build VolumeSingle Extrusion: 600*600*600mm
  Dual Extrusion:  540*600*600mm
Number of NozzlesDouble
Auto rising extrudersYes
Min layer height0.05mm
Filament Diameter1.75mm
Filament Compatibility:PLA, ABS, Carbon, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, TPU, ASA, PETG, etc.
Nozzle Diameter0.6mm (0.3, 0.4, 0.6, 0.8,1.0mm)
Print File TypeGCODE
Temperature
Max. Nozzle Temperature420°C
Max. Bed Temperature100°C
Max. Chamber Temperature70°C
Filaments Drying Temperature0-70°C (Timed)
Speed
Print speed0-300mm/s
Electrical
Power Requirements240V, 50-60Hz
Max. Power5500W
Screen7" Touch Screen
ConnectivityUSB/USB disk / WiFi
Software
Software BundleCreatWare, OrcaSlicer, Cura,Slice 3r
Supported File TypesSTL, OBJ, AMF
Operating SystemsWindows (7,8,10) Mac OS
Special Function
Filament DetectionPause printing when filament run out
Automatic leveling bedYes
Magic box TechnologyPerfect Z direction texture
Camera ControlMonitoring + Control
Emergency stop switchYes
FirmwareKlipper-high speed
Hardware
X/Y motorshigh-precision Servo motors
X/Y Axishigh-precision Linear slides
Air filterHEPA+Carbon
Print bedRemovable magnetic platform( base on high-precision aviation aluminum plate)
Print surfacePEI sheet+ PEI coating
Mainboard32 bits
X/Y min&maxPhotoelectric switch
Size & Weight
Product Dimensions & Weight1080*920*1245mm 200kg
Packing Size & Weight1150*1000*1410mm 245kg
