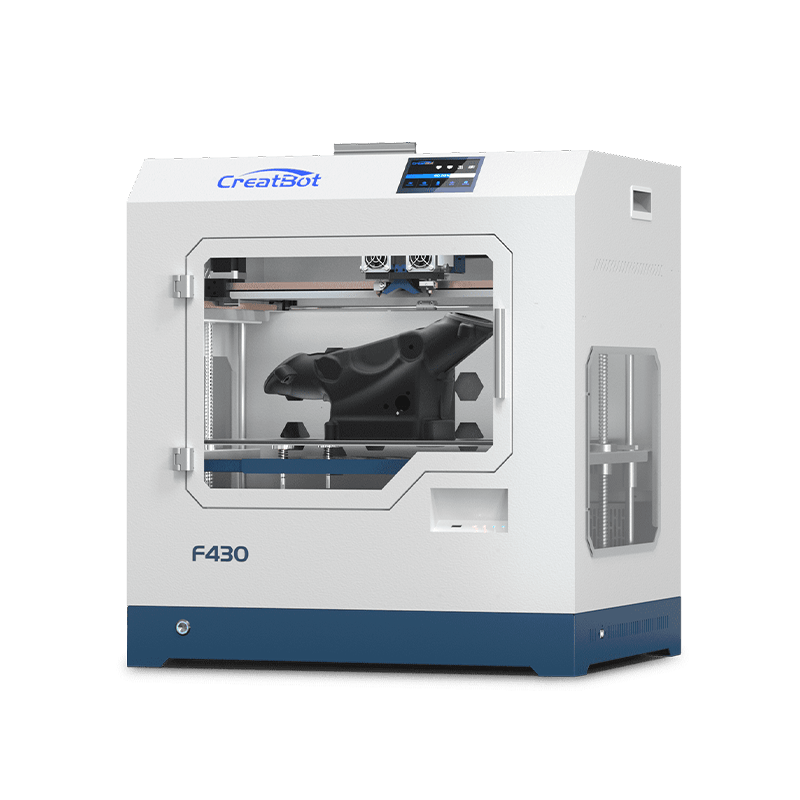

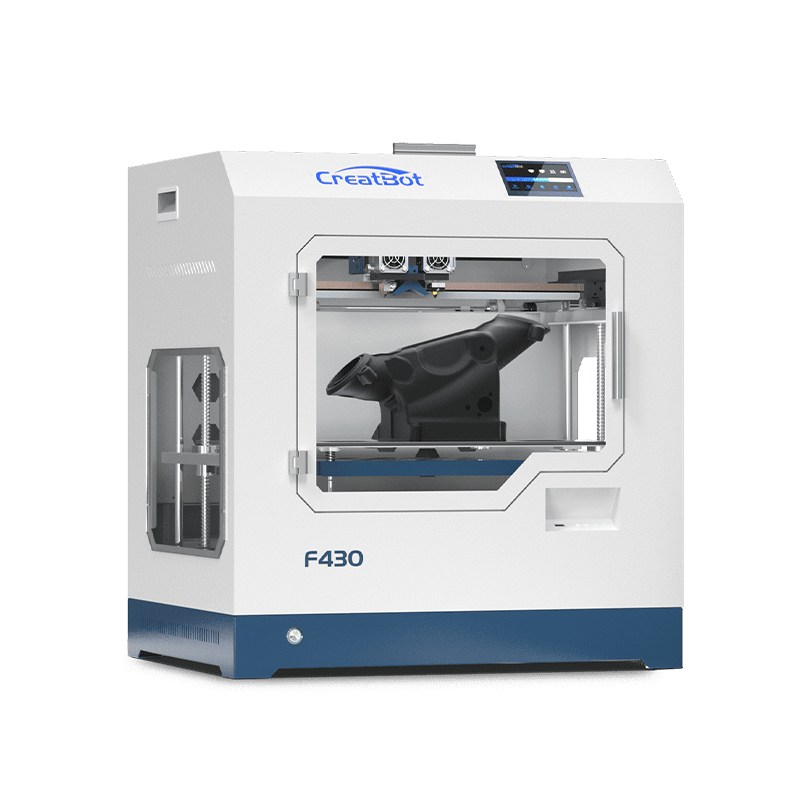

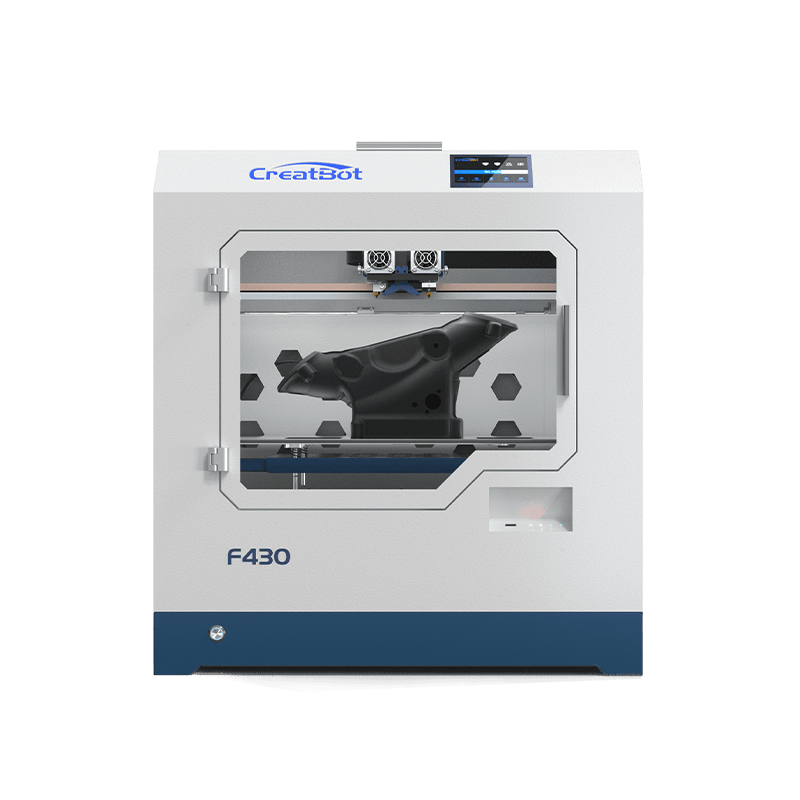

F430
THE PROFESSIONAL FLAGSHIP 3D PRINTER
SUITABLE FOR MULTIPLE GRADES OF MATERIALS
What makes the F430 to be the most welcomed 3D printer product?
The CreatBot F430 is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.
Consumer-grade:PLA, ABS, PETG, PVA, PC, etc
Industrial-grade:UltraPA, PA-CF, PA-GF, ASA, TPU/E, PP, PVDF, etc
Hotend 260°C+420°C
Hot Bed 140°C
Hot Chamber 70°C
Nozzle Temperature Up To 420°C
The F430 is equipped with the 4th generation 1.75mm dual extruders and hotends. The left extruder is equipped with 260°C hotend, It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, flexible filaments, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibilities for your application.
High Precision & High Speed
We have independently researched and developed the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach up to 0.04mm, and it allows to extrude filament steady without block.
Fully Enclosed + Hot Chamber 70°C
Fully enclosed chamber can block all external interference and reduce noise. Hot chamber device provides a constant room temperature of 70°C, which can prevent prints from warping and deforming.
UltraPA-GF with S-Blue quick remove support material
Outage Restore & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power on. No trace! The printer will avoid invalid printing by stopping the print and issuing a warning when the filament runs out.
HEPA Air Filter
The air filter system can adsorb impurities and gases that generated by printing special filament like ABS, Nylon, PC, more safe and environmental protection making it more suitable for houses, schools, office spaces.
Aviation aluminum platform + automatic leveling
The printer is equipped with a heatless aviation aluminum platform with a surface flatness of 0.02mm. The surface of the platform can be attached with PEI special 3D printing film and Buildtak film. Most materials can be squeezed and adhere well to the bed. Auto leveling sensor, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
Print models review
See how CreatBot 3D printer creates high strength model with beautiful surface.
Need local support?
If online support cannot solve your problem, please contact us. We will ask our local team to get in touch with you and provide services. If necessary, we can provide on-site services, technical support, and training for you.
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling (FDM) |
| Build Volume | techSpecs.printing.buildVolumeValue |
| Number of Nozzles | Double |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc. |
| Nozzle Diameter | 0.4mm (0.3 0.5 0.6 0.8 1.0mm) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Speed | |
| Best Printing speed | 55 mm/s |
| Max. Printing speed | 180 mm/s |
| Software | |
| Software | CreatWare, Simplify 3D, Cura, Slic3r, etc |
| Supported File Types | STL,OBJ,AMF |
| Operating Systems | Windows, macOS |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
| Temperature | |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 140 ℃ |
| Max. Chamber Temperature | 70 ℃ |
| Electrical | |
| Power Requirements | techSpecs.electrical.powerRequirementsValue |
| Rated Power | 220V: 2700W, 110V: 2200W |
| Screen | 4.3'' Touch Screen |
| Storage Media | U Disk |
| Connectivity | USB |
| Mechanical | |
| Construction | Power-Coated Steel, Aluminum Casting for Motion Components |
| Build Plate | Aviation aluminum plate+PEI sheet |
| Build Plate Leveling | Automatic |
| Extruder | Directly Drive |
| Stepper Motors | 1.8° Step Angle with 1/16 Micro-stepping |
| X Y Positioning Precision | 12.7 μm |
| Z Positioning Precision | 1.25 μm |
| Size & Weight | |
| Product Dimensions & Weight | 620*485*680 mm,48 kg |
| Packing Size & Weight | 750*580*720 mm,62 kg |
