——Direct Application of CreatBot 3D Printed High-Performance Racing Intake Pipes
Abstract
In the world of extreme racing, every millisecond of breakthrough relies on the ultimate pursuit of technology and craftsmanship. This article presents how Justin Taylor, Chief Engineer at Data Driven Performance (DDP), successfully manufactured intake pipes and other key components directly used in record-breaking racing cars using CreatBot D600 series industrial 3D printers and UltraPA-CF (carbon fiber reinforced polyamide) materials for his racing team. His Cadillac CTS-V, equipped with these 3D printed parts, broke the half-mile speed world record and is challenging more records. This case strongly demonstrates that CreatBot additive manufacturing solutions are no longer just prototype verification tools, but have become reliable choices for high-performance, small-batch end-use parts manufacturing (Direct Digital Manufacturing), providing unprecedented agility, economy, and excellent performance for the automotive high-performance modification field.
On-site race modified car photo Data Driven Performance
Challenge: Manufacturing Constraints Under Extreme Performance
Data Driven Performance (DDP), a company focused on high-performance racing modifications, is always committed to building peak performance racing cars. Their engineer Justin Taylor's goal is simple and direct: to break various speed records. However, on the path to achieving this goal, traditional manufacturing processes have become the biggest constraint:
•The Paradox of Performance and Cost: The mold cost for complex intake pipes designed for ultimate airflow optimization is astronomical for racing cars that only require a few pieces.
•Time Waits for No One: Seasons and races don't wait. Traditional manufacturing cycles of several months cannot meet their urgent needs for rapid testing, iteration, and competing in races.
•Ultimate Test of Material Performance: The environment in the racing engine compartment is extreme, and components must withstand high temperatures, fuel corrosion, and severe vibration for a long time; any failure means the failure of the record or even danger.
•Iteration is Competitiveness: Aerodynamic design needs continuous optimization. In traditional methods, every design modification means huge time and money costs, seriously slowing down the R&D process.
Justin needed a technology that could break free from these constraints and quickly turn his innovative designs into reality.
Solution: "Agile Manufacturing Factory" Beside the Track
Data Driven Performance's choice was to directly integrate multiple CreatBot D600 series printers into their workflow, establishing their own "factory beside the track" and achieving a complete closed loop from design to manufacturing.
- Core Tool: CreatBot D600 Series Industrial 3D Printer
Industrial-Grade Reliability and Precision: The D600 series, with its stable mechanical structure and precise motion control, ensures that every printed component has racing-grade dimensional accuracy and consistency, meeting strict assembly requirements.
High-Temperature Printing Capability: Its enclosed constant temperature chamber and all-metal high-temperature nozzle provide the necessary environment for printing high-performance materials like UltraPA-CF, fundamentally ensuring the interlayer bonding and overall strength of the components.
Large-Size Integrated Molding: Sufficient to produce large, complex intake pipes in one go, avoiding potential leakage points and strength weaknesses caused by split splicing, perfectly restoring the aerodynamic design. - Core Material: UltraPA-CF (Carbon Fiber Reinforced Polyamide)
Superior Heat Resistance: With a heat distortion temperature of over 160°C, it handles the high-temperature environment from turbochargers with ease, maintaining stable shape and performance.
Excellent Strength and Rigidity: Carbon fiber reinforcement makes it much stronger than ordinary nylon, able to withstand severe vibration at high engine speeds and pressure from the intake system.
Outstanding Chemical Resistance: Excellent resistance to gasoline, oil, and coolant, ensuring long-term durability in corrosive environments.

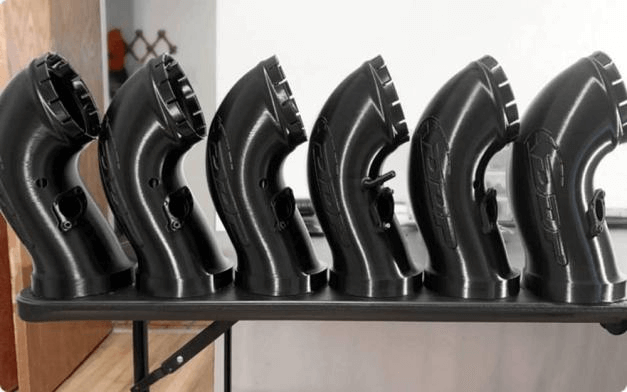

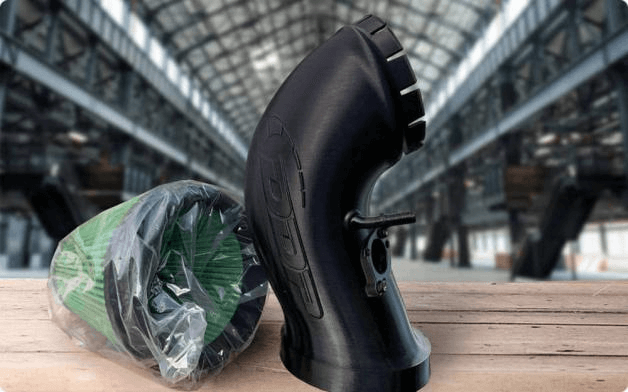

3D Printed Intake Pipes Batch Manufacturing
Path to Victory: From Digital Model to Championship Trophy
- Implementation Process:
Design Freedom: : The DDP team used 3D software to design complex pipe structures with optimized airflow efficiency without limitations.
Instant Manufacturing: : After design completion, the model was directly sent to the printer. Within just a few dozen hours, a complete, ready-to-use intake pipe was printed.
Easy Post-Processing: : After simple support removal, the parts could be installed and tested on the car.

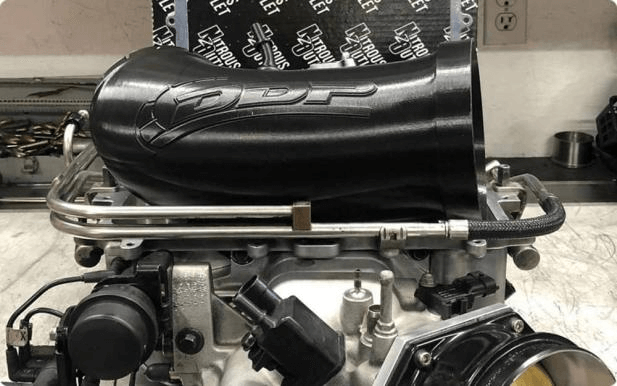

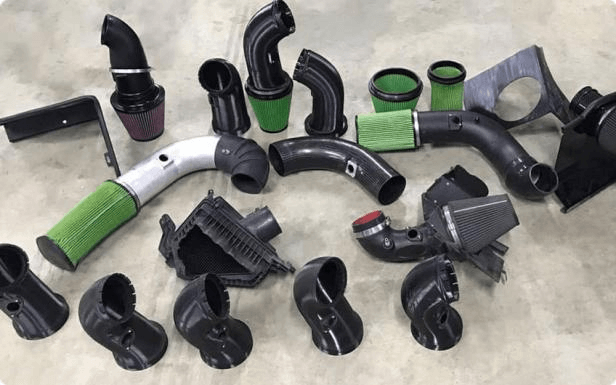

3D Printed Intake Pipes and Accessories - Brilliant Achievements — Testimonial from Partner::"My 3D printed intake just broke the fastest CTS-V half-mile world record... All 3D printed parts are made on your machines!!... All these cars have your printed parts and they have been holding up great! I love the quality of your 3D printers!"—— —— Justin Taylor, DDP Engineer
Winning Championships: : 3D printed intake pipes directly helped the racing car break the half-mile speed world record and is about to challenge quarter-mile and mileage records.
Disruptive Cost and Cycle : No molds needed, extremely low unit cost. From design to physical product in just days, achieving the ultimate agile development of "think it, make it".
Impeccable Reliability : Withstood the most severe practical tests on multiple record-breaking racing cars, proving its excellent reliability as an end-use functional component.
Dominant Future Layout : Based on the manufacturing capabilities provided by CreatBot, Justin is quickly replicating his successful experience to models like the Camaro ZL1, as Justin said — "will take over the industry".

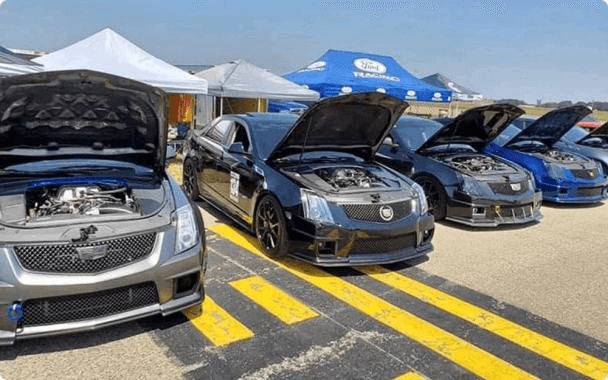

3D Printed Intake Pipes Batch Installation on Modified Cars
Enlightenment: Track Technology Drives Industry Transformation
Customer Showcasing 3D Printed Intake Pipe
Creating the Future Together
The track is the ultimate touchstone for technology. The success of Data Driven Performance is not only the highest recognition of CreatBot's equipment quality but also points the way for our future. CreatBot will continue to be committed to providing the most reliable and powerful industrial additive manufacturing solutions for innovators, engineers, and manufacturers worldwide, helping them turn their most radical ideas into reality and break through every seemingly impossible limit.
