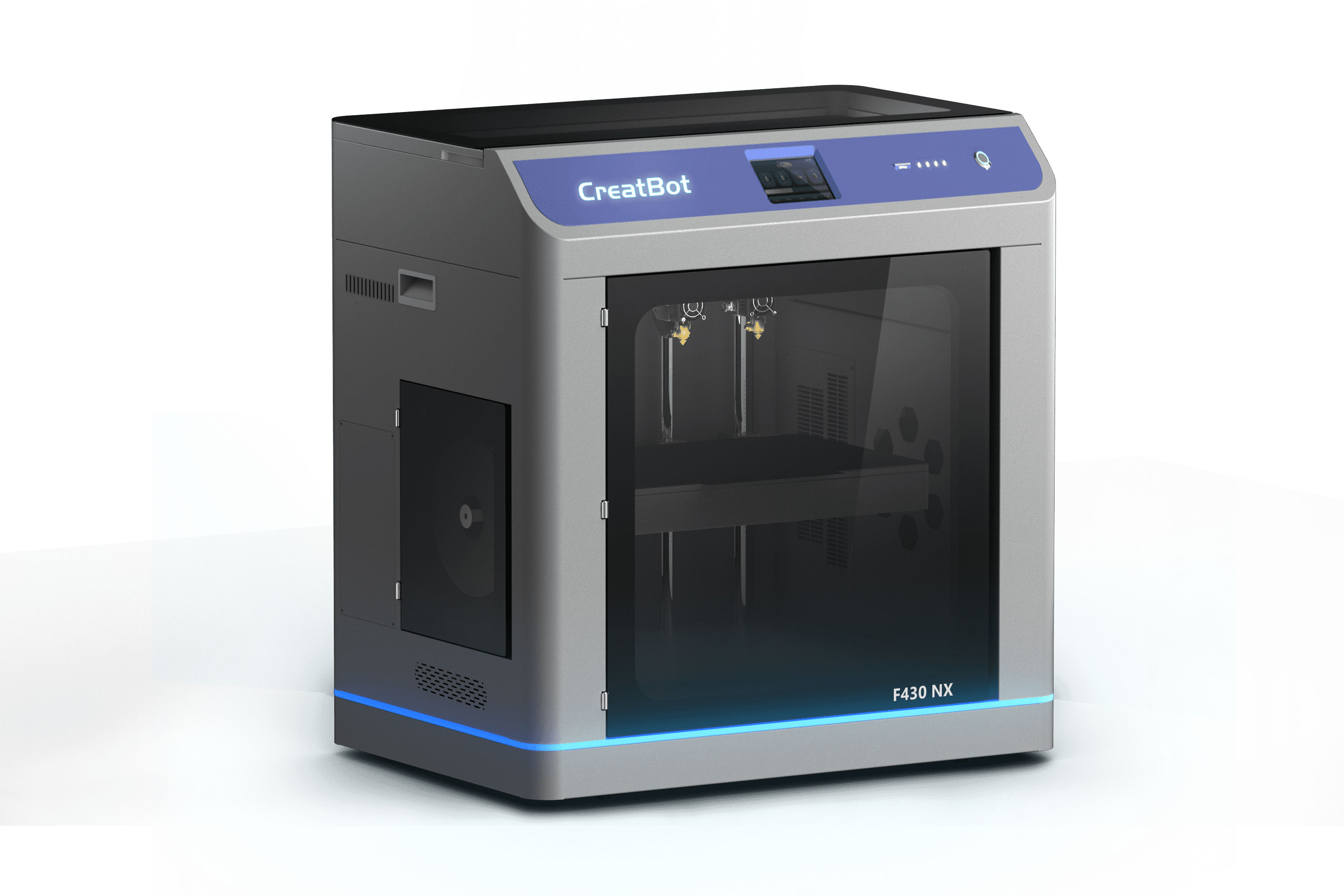

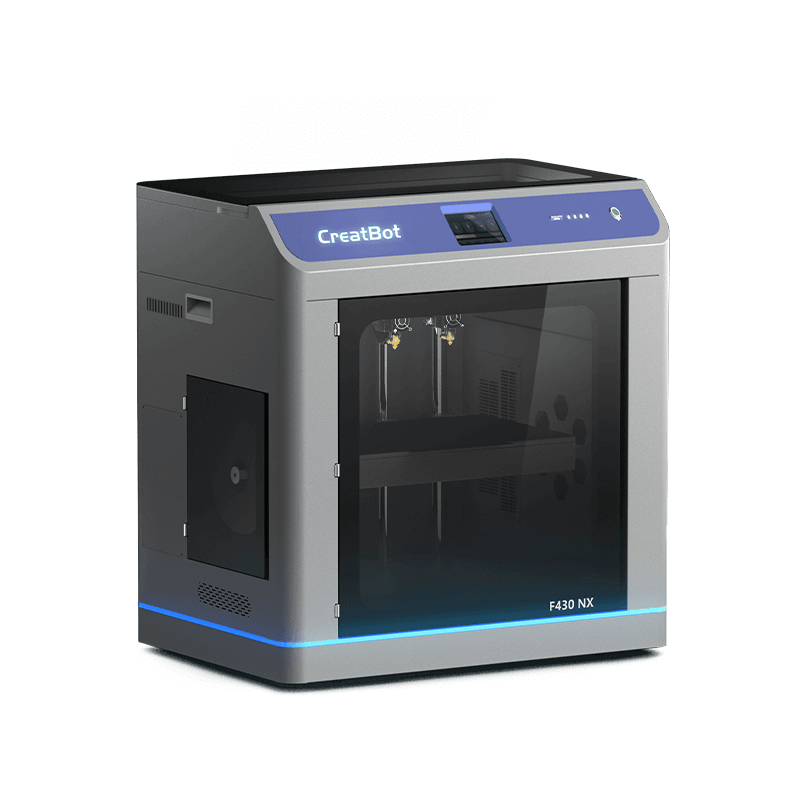

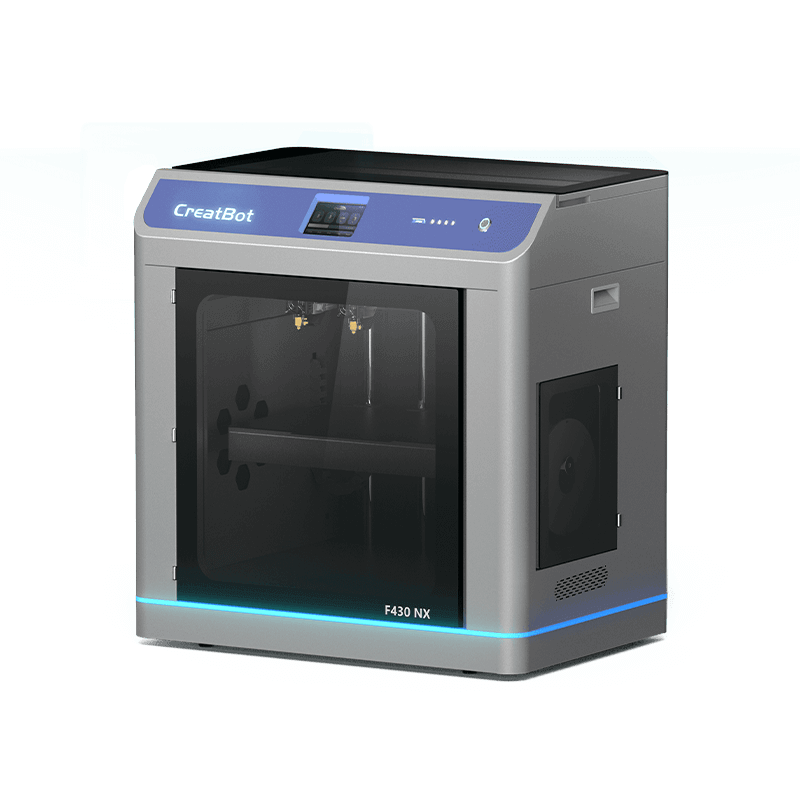

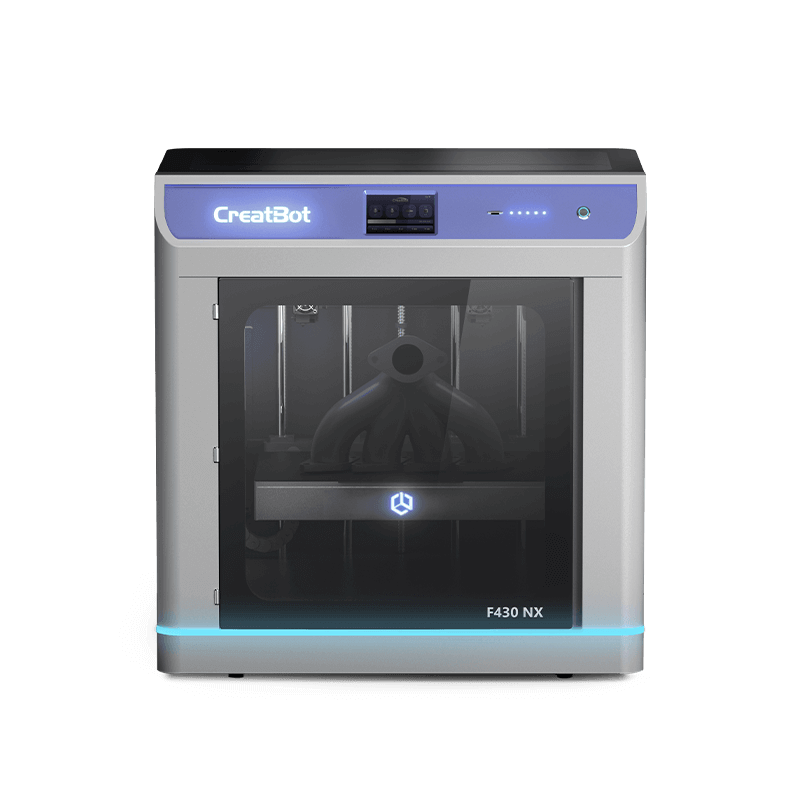

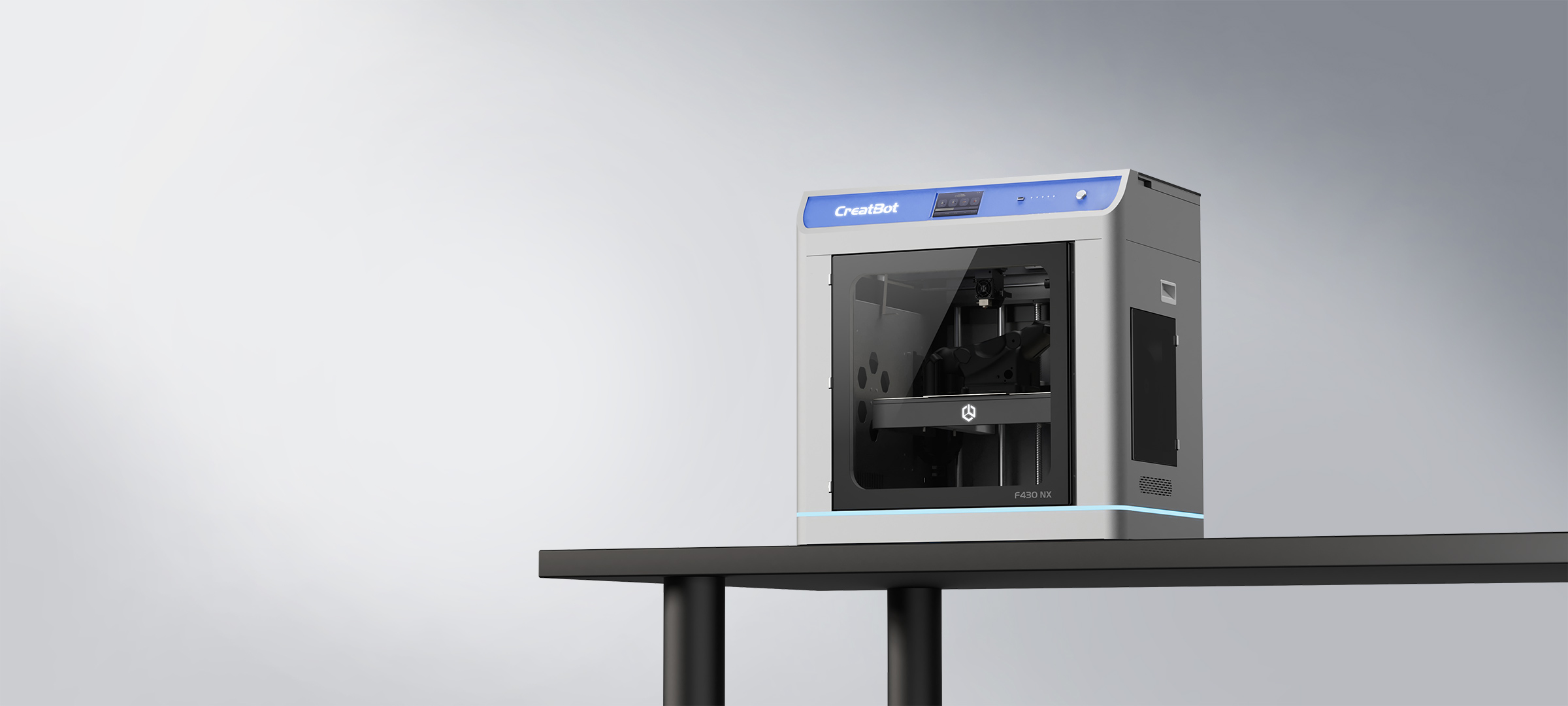

F430 NX
A new generation of professional-grade high-speed 3D printer
The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers, with a cumulative global sales volume of more than 5,000 units. Now, the new generation product F430 NX of this series has been released. It has a more advanced design concept and profound technical reserves, with powerful performance and no shortcomings. It has a brand-new appearance design; high-precision machined parts are used as the structural framework; the independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing. The operation process is simpler, and the 7/24 operation is more stable. In the professional field, it will be your first choice.
What makes the F430 NX to be the most welcomed 3d printer product?
The CreatBot F430 NX is the powerful 3D printer with most advanced desktop 3D technology. It provides solutions for just about every application from concept to prototype and high performance material direct production. Its best-in-class technical specifications deliver performance you can rely on.
Consumer-grade:
PLA, PETG, PLA-CF, etc
Industrial-grade:
ASA, ABS, PC, Nylon, PET-CF, PET-GF, UltraPA-CF, etc
Support materials:
S-270, S-350, etc
Hotend 420°C dual
Hot Bed 120°C
Hot Chamber 70°C

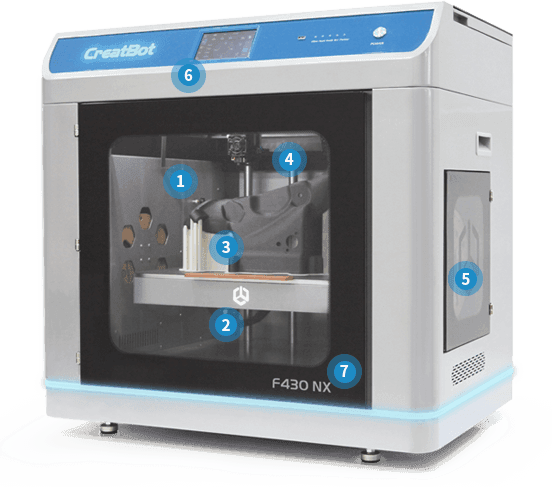

1. POWERFUL EXTRUSION SYSTEM
- Independent Dual Extruders (IDEX)
- Titanium alloy extrusion head
- Quick-swap hotends
- 420°C silicon carbide nozzle nozzles
2. ACTIVE HEATED CHAMBER
- Chamber up to 70°C
- Heated bed up to 140°C
3. MASSIVE PRINT VOLUME
- 400*300*300mm (Single printing)
- 360*300*300mm (Dual printing)
- 225*300*300mm (Copy)
- 190*300*300mm (Mirror)
4. HIGH SPEED READY
- Speed 100-300mm/s
- Z axis strengthening
5. MATERIAL OPERATIONS SYSTEM
- Filament drying room 70°C
- Auto Filament Switching
- Engineering-grade materials
- Carbon/Glass fiber ready
6. USER EXPERIENCEE
- Flexible build plate
- Build-in Camera
- 5” capacitive touchscreen
- Connectivity via WiFi or Ethernet
- Status-breathing atmosphere light
7. SAFETY
- 50db working
- HEAP and Carbon filter
- Fault signal light
- Thermal runaway protection

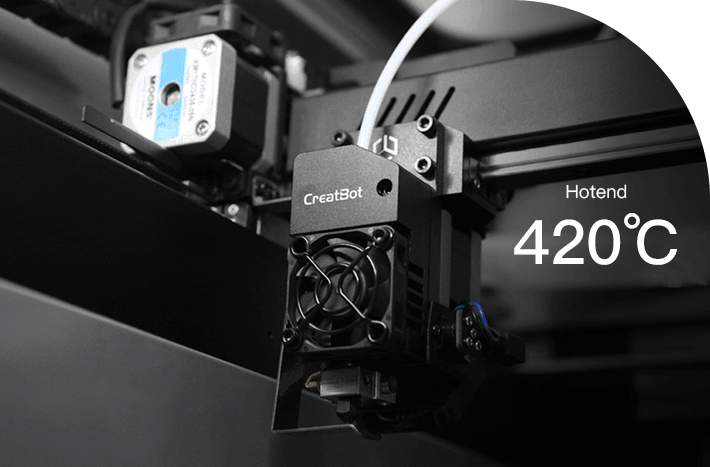

High temperature hotend 420°C
Using the latest technology of one-piece die-cast memory alloy hot end and super wear-resistant nozzle, temperature resistance up to 420°C. Compatible with PLA, ABS, ASA, PC, nylon, carbon fiber, and glass fiber materials. The nozzle aperture wear rate does not exceed 10% after printing carbon fiber materials for 2000 hours.

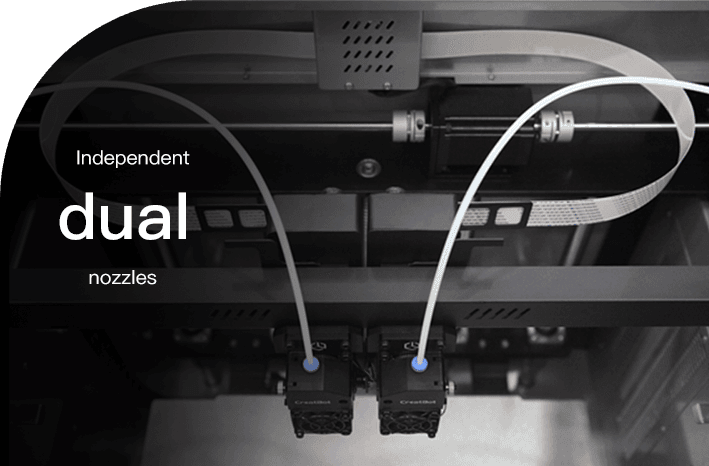

Independent Dual Extruders (IDEX)
This is the best solution for printing engineering-grade materials with independent support materials, ensuring the best quality of engineering-grade material printing. It also supports copy, mirror, and backup mode printing.

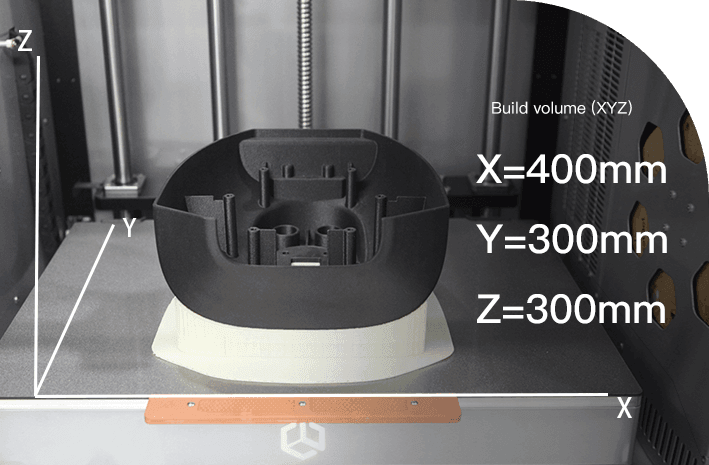

Big build volume
The printing size of single printing reaches 400*300*300mm, and the printing size with support materials reaches 360*300*300mm. The printing size is larger than that of most professional-grade products on the market.

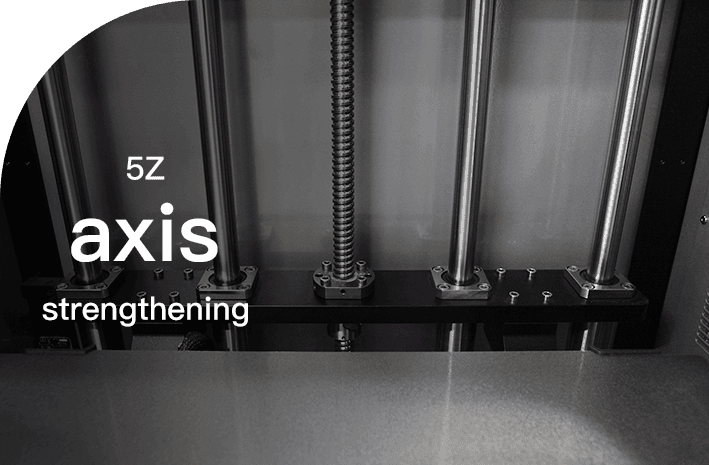

Z axis reinforcement
The back side of the Z-axis is composed of a high-precision ball screw and 4 reinforced optical axes, with high-precision tight fit and synchronous movement. The surface of the model is uniform and free of impurities, improving the printing surface quality of engineering-grade materials.

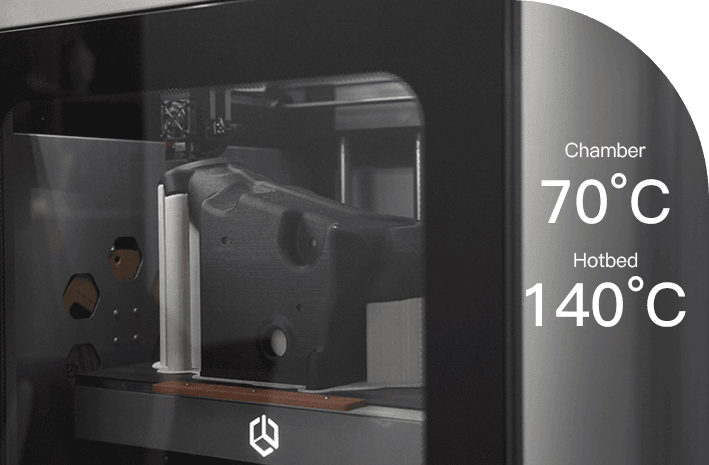

Active heating of hot bed/chamber
The active heated bed heating temperature reaches 140°C and the active chamber heating temperature reaches 70°C. It effectively prevents the shrinkage and cracking of engineering-grade materials, allowing ABS, ASA, PC, Nylon, UltraPA-CF, etc. to be perfectly formed and the mechanical properties to be maximized.

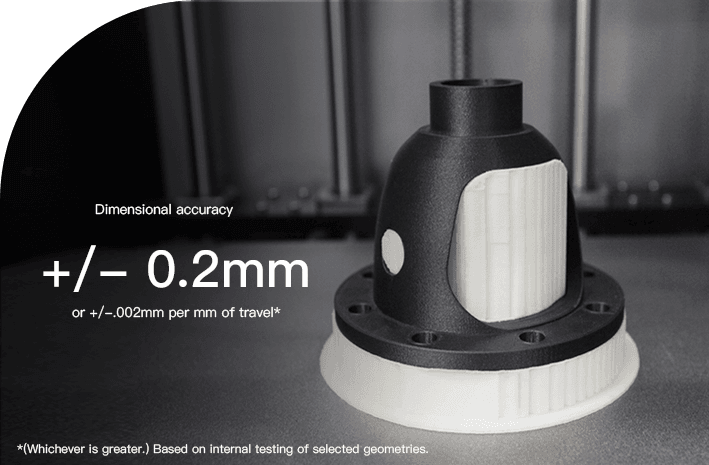

Superior Dimensional Accuracy
The F430 NX is specifically designed with a tight combination of high-precision machined structures to maintain dimensional accuracy and tight tolerances when printing the largest parts in engineering-grade materials. Not only does the F430 NX avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.

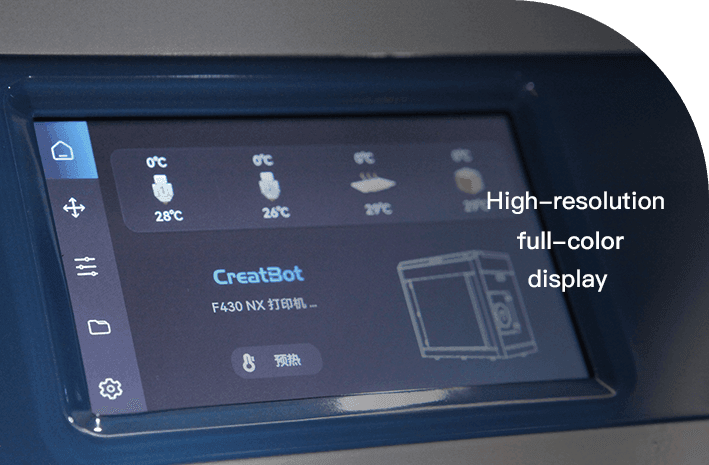

High-resolution touch screen
Adopting 5-inch high-resolution capacitive touch screen, it has no delay in operation, delicate touch, user-friendly interface and convenient operation and management.
Product Parameter
| Printing | |
| Build Volume | Single Extrusion: 300*300*400 mm Dual Extrusion: 240*300*400 mm |
| Filament Diameter | 1.75mm |
| Number of Nozzles | Dual Extruder |
| Nozzle Diameter | 0.4mm (0.3~1.0mm optional) |
| Filament Compatibility | Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF,Carbon Fiber; High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM); Ultra-performance material: PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc. |
| Speed | |
| Best Printing speed | 55 mm/s |
| Max. Printing speed | 180 mm/s |
| Electrical | |
| Input Power | 200V~240V, 20A |
| Rated Power | 4600W |
| Screen | 4.3'' full color touch screen, multi-language |
| Print Method | USB Connectivity/USB Disk |
| Mechanical | |
| Cooling | Air pump cooling & water cooling |
| Platform | PCB aluminum + PEEK print board |
| Positioning Precision | X Y axis 0.0127mm, Z axis 0.00125mm |
| Extruder | Directly Drive |
| Machine Construction | Fully enclosed hot chamber |
| Bed Leveling | Manually/Automatic |
| Temperature | |
| Nozzle Max. Temperature | 480℃ |
| Chamber Temperature | 120℃ |
| Platform Max. Temperature | 200℃ |
| Direct Annealing Temperature | 0~400℃ |
| Software | |
| Software | Creatware, Simplify3D, Cura, Slic3r |
| Operating Systems | Windowsall, macOS |
| Print File Type | STL, OBJ, AMF, Gcode |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Direct Annealing System (DAS) | Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. |
| Heat insulation | Triple heat insulation |
| Emergency stop switch | Support emergency stop |
| High temperature accessories | High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing. |
| Size & Weight | |
| Machine Size | 720*700*941.5mm |
| N.W | 110 kg |
| Packing Size | 820*720*1080mm |
| G.W | 145 kg |
