D600 Pro

Affordable and Reliable Large 3D printer

The CreatBot D600 Pro was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is embedded with many advanced technologies for ultra big, impressive prints. It will be your best choice without a doubt if you are looking for an industrial large scale 3D printer for prototypes and engineering-grade materials.

Affordable price plus a build size of 600*600*600mm makes it the best choice for your business. Trusted by 2000+ professional clients.

Discover D600 Pro2 HS

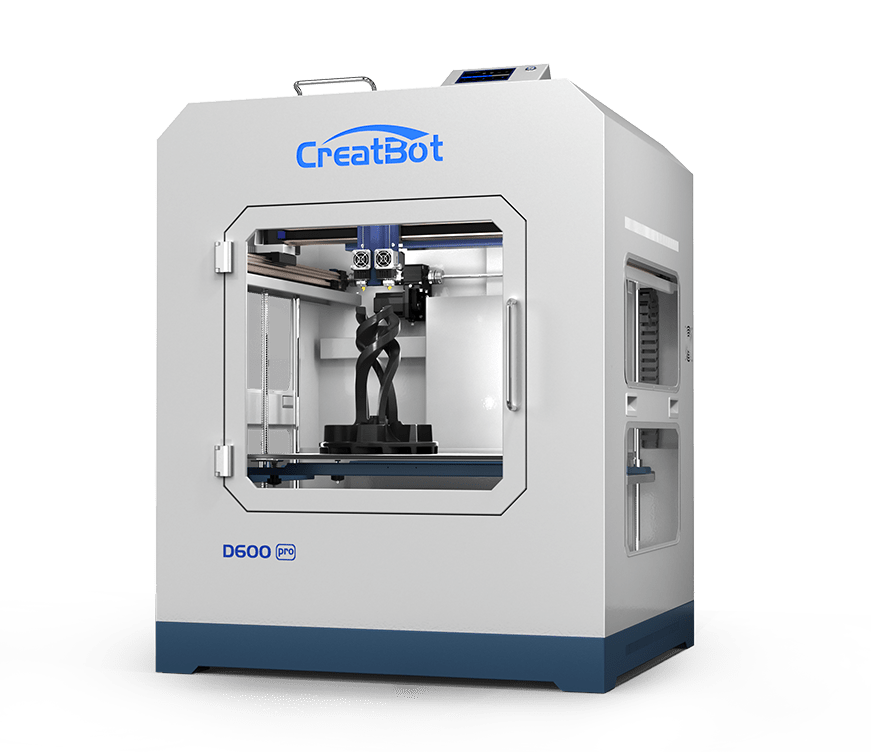

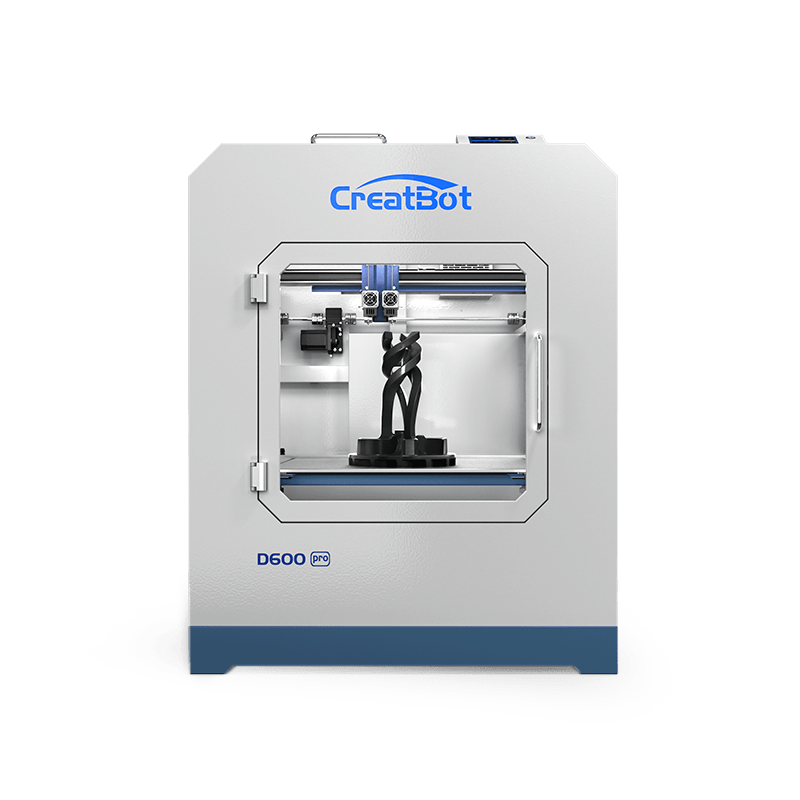

CREATBOT D600 Pro

  • 600*600*600mm
  • 420°C+100°C+70°C
  • High resolution & speed
  • Reliable 24/7
  • Fully enclosed

Nozzle Temperature Up To 420 ℃

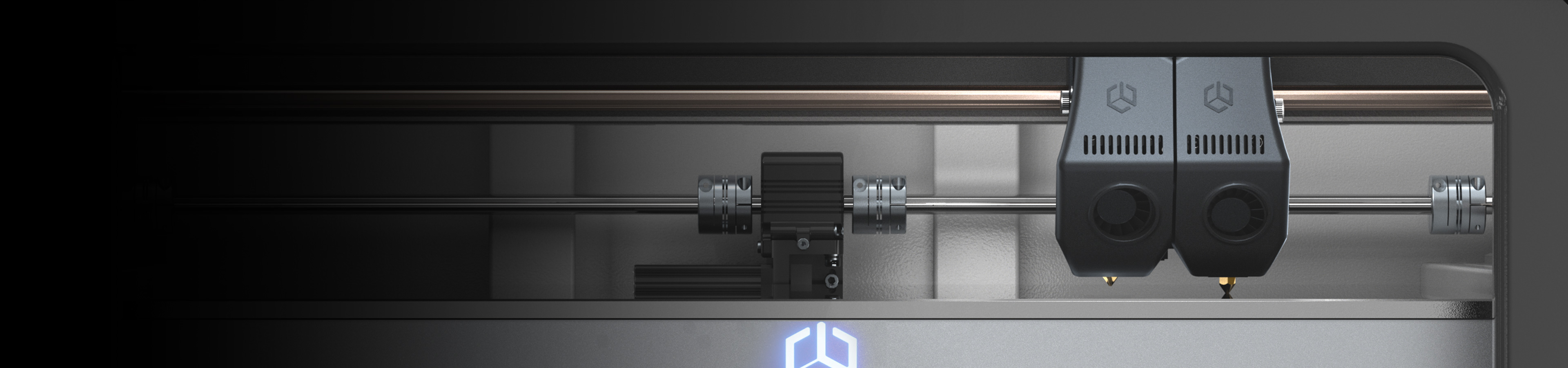

D600 Pro equiped with the 4th generation 1.75mm dual extruders and hotends. The left extruder equipped with 260°C hotend, It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provides more possibility on your application.

High Precision

We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.

Large Build Volume

D600 / D600 Pro print size 600*600*600mm.In the photo, we can see part of large format 3D printer quality inspection area. Mass production means standard high quality.(Learn more about the huge 3d printer D1000 in center of the photo)

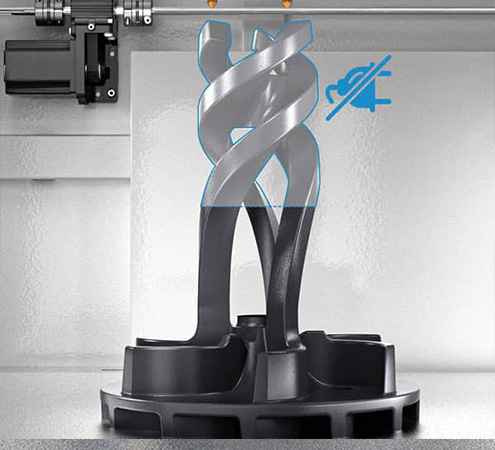

Outage Restore & Filament Detection

The printer will automatically memorize the current position and save print data, lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power on. No trace!

The printer will avoid invalid printing by stopping print and warning when filament runs out.

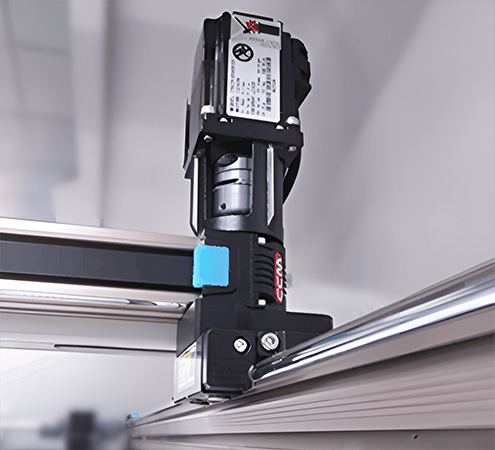

Linear rail and Servo motors

When it reaches to 1000mm+ length, small rail have big deflection. The D1000 accurate linear rail structure is very thick and strong. It won’t deform or lose precision after print head million times shock.

With servo motors, with timeliness, fast response, no inertia, and no delay. closed-loop control of position overcome the problem of losing step. heat and noise are significantly reduced. It gives print model ultra high performance with high speed.

Hot Chamber + Filament Dry Room

60°C hot chamber ensures print quality for high performance materials. The fully enclosed chamber can block all external interference. This frame also reduces noise while providing a constant temperature, ensuring that the model won't deform.

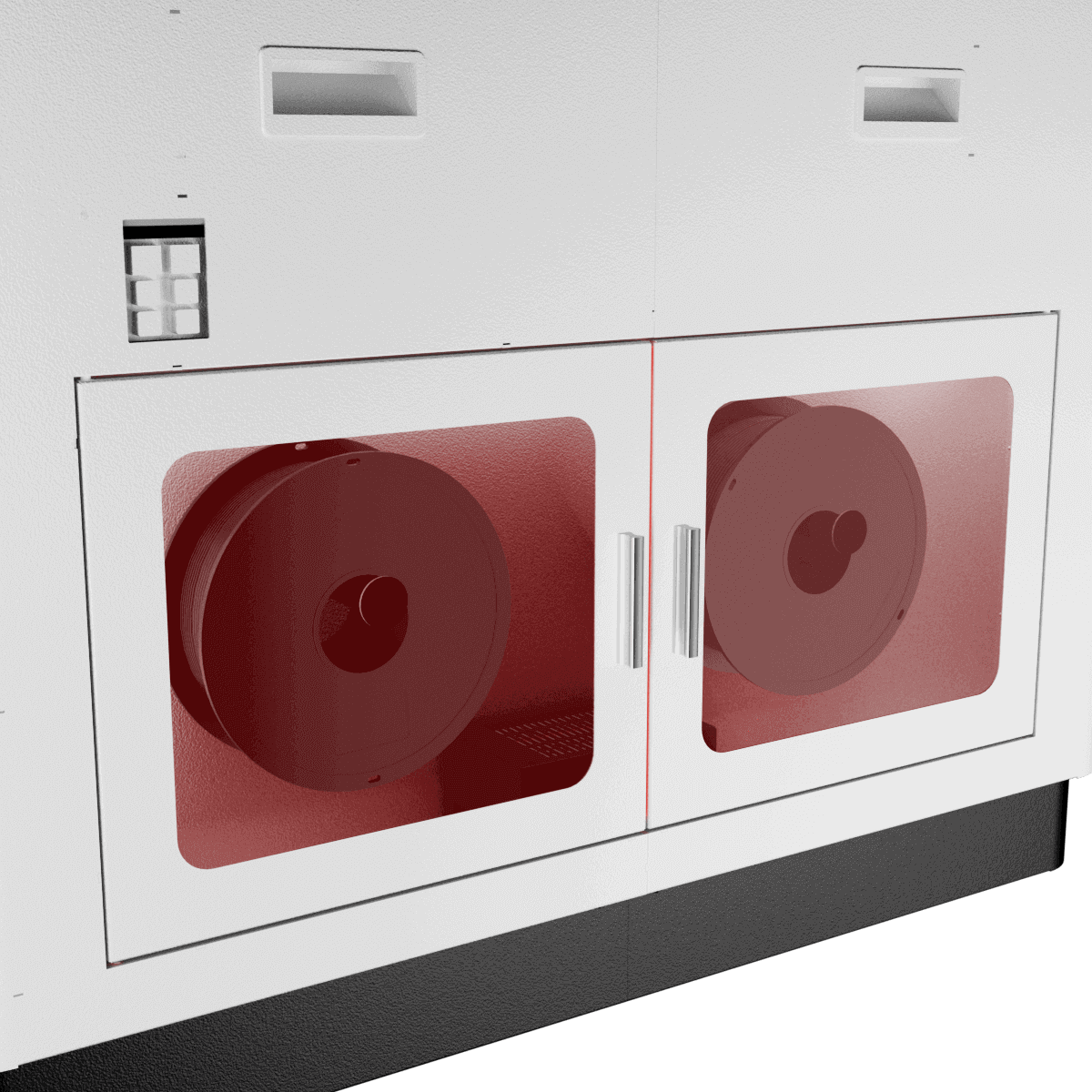

The filament dry room provides chamber temperatures of 45°C and 65°C to dry 2*5kg/roll filament like PLA, nylon, PC, ABS and other materials with water absorption.

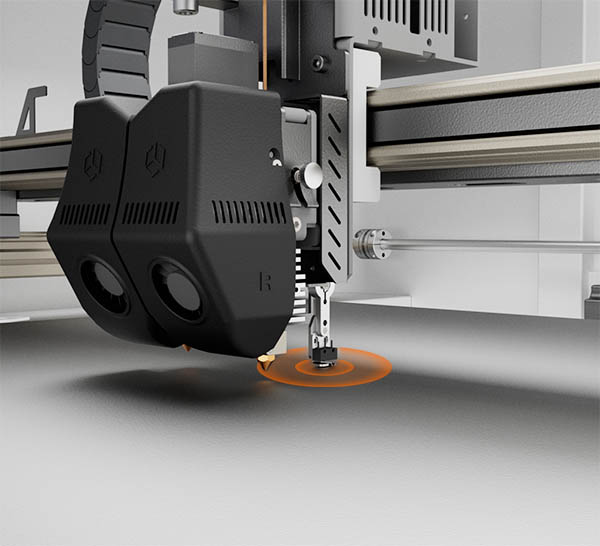

Auto Leveling Platform

Use of 100 points through the high precision servo probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

HEPA Air Filter

The air filter system can adsorb impurities and gases that generated by printing special filament like ABS, Nylon, PC, more safe and environmental protection which is more suitable for house, school, office space.

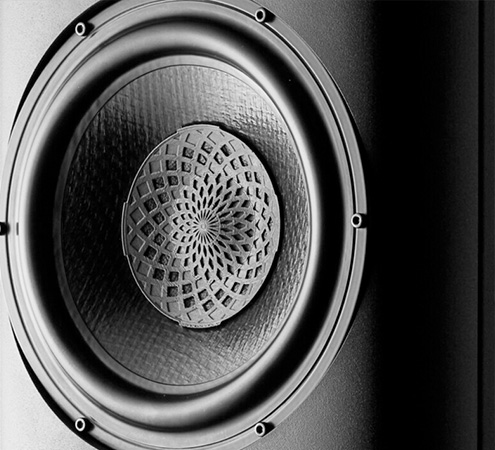

Print models review

See how CreatBot 3D printer creates high strength models with beautiful surfaces.

Technical Specs

Printing
Print TechnologyFused Deposition Modeling(FDM)
Build VolumeSingle Extrusion:  600*600*600 mm
  Dual Extrusion:  540*600*600 mm
Number of NozzlesDouble
Layer Resolution0.05 mm
Filament Diameter1.75 mm
Filament CompatibilityPLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter0.4mm (0.3 0.5 0.6 0.8 1.0mm)
Print File TypeSTL, OBJ, AMF, Gcode
Speed
Best Printing speed45 mm/s
Max. Printing speed120 mm/s
Electrical
Power Requirements
200V-240V / 50-60Hz ( D600 / D600  )
Screen4.3'' Touch Screen with Multi-language
Rated PowerD600: 1500W, D600 : 4900W
Storage MediaUSB Disk
ConnectivityUSB
Size & Weight
Product Dimensions & Weight915*845*1085mm 125kg
Packing Size & Weight940*1010*1320mm 165kg(Pallet)
Temperature
Ambient Operating Temperature15 ℃~32 ℃
Max. Nozzle Temperature420 ℃
Max. Bed Temperature100 ℃
Max. Chamber Temperature70 ℃ D600
Filaments Drying Temperature45 ℃/65 ℃ D600
Mechanical
ConstructionPower-Coated Steel, Aluminum Casting for Motion Components, POM
Build PlateAviation aluminum plate
Build Plate LevelingFactory Leveled, Adjust Manually Automatic D600
ExtruderDirectly Drive
Stepper Motors1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision5.08 μm
Z Positioning Precision1.25 μm
Software
SoftwareCreatWare, Simplify 3D, Cura, Slic3r, etc
Supported File TypesSTL,OBJ,AMF
Operating SystemsWindowsall, macOS
Special Function
Outage RestoredSave data when power is off
Filament DetectionPause printing when filament run out
Automatic Shut-downTurn off the power automatically when printing is complete
