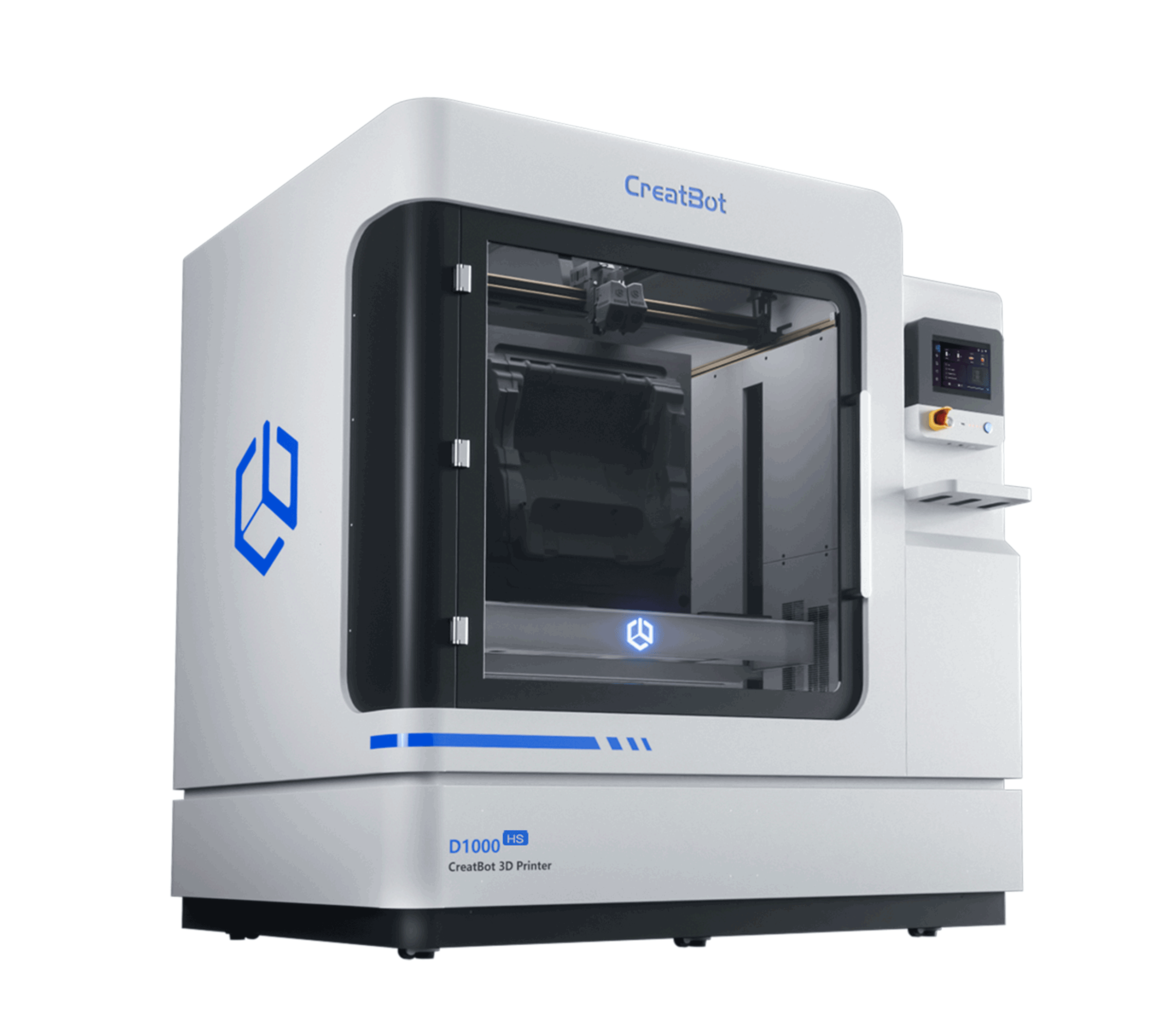

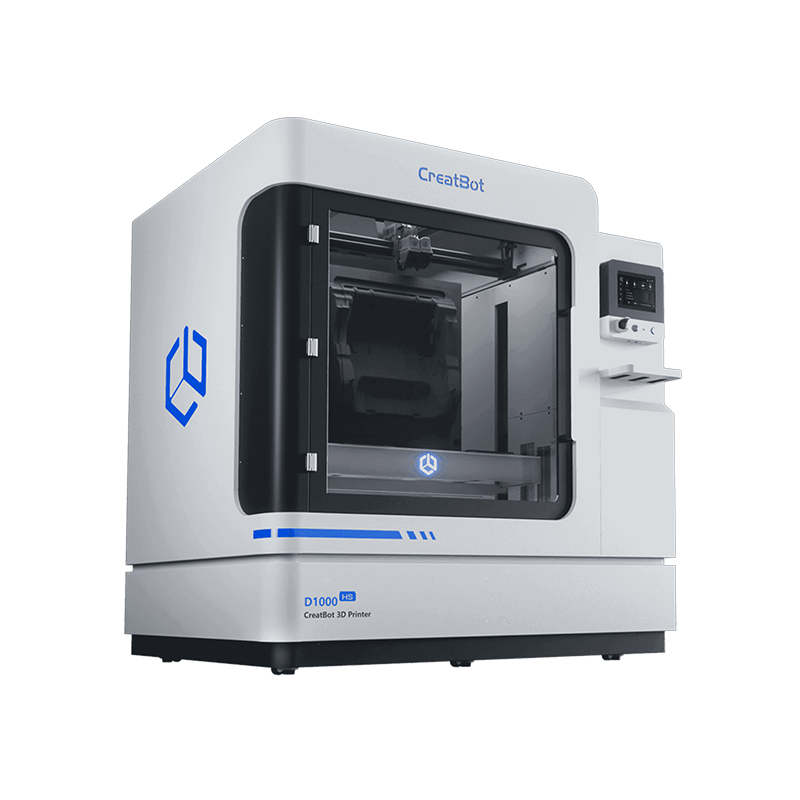

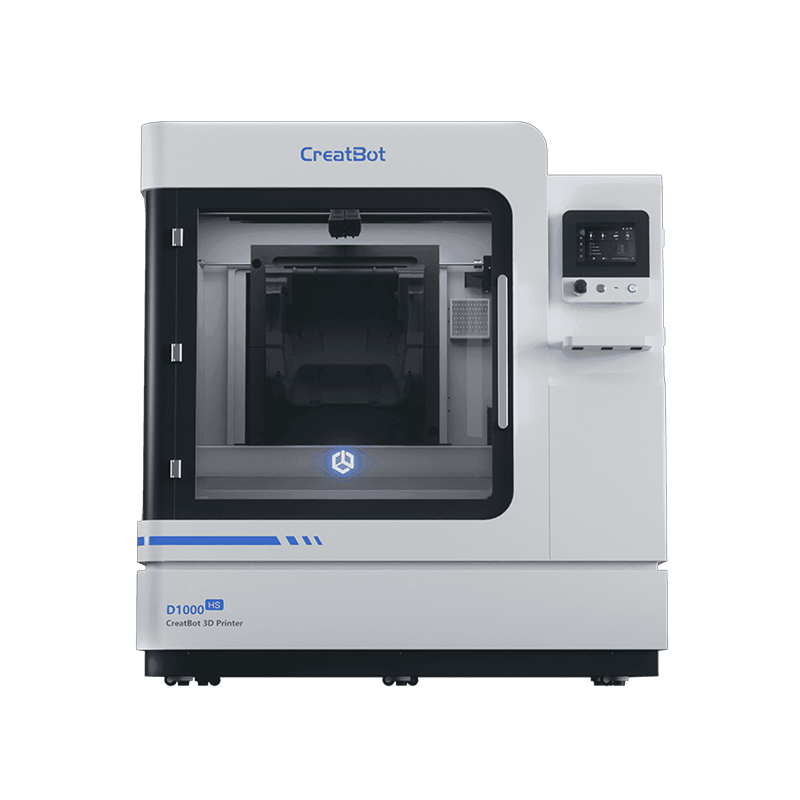

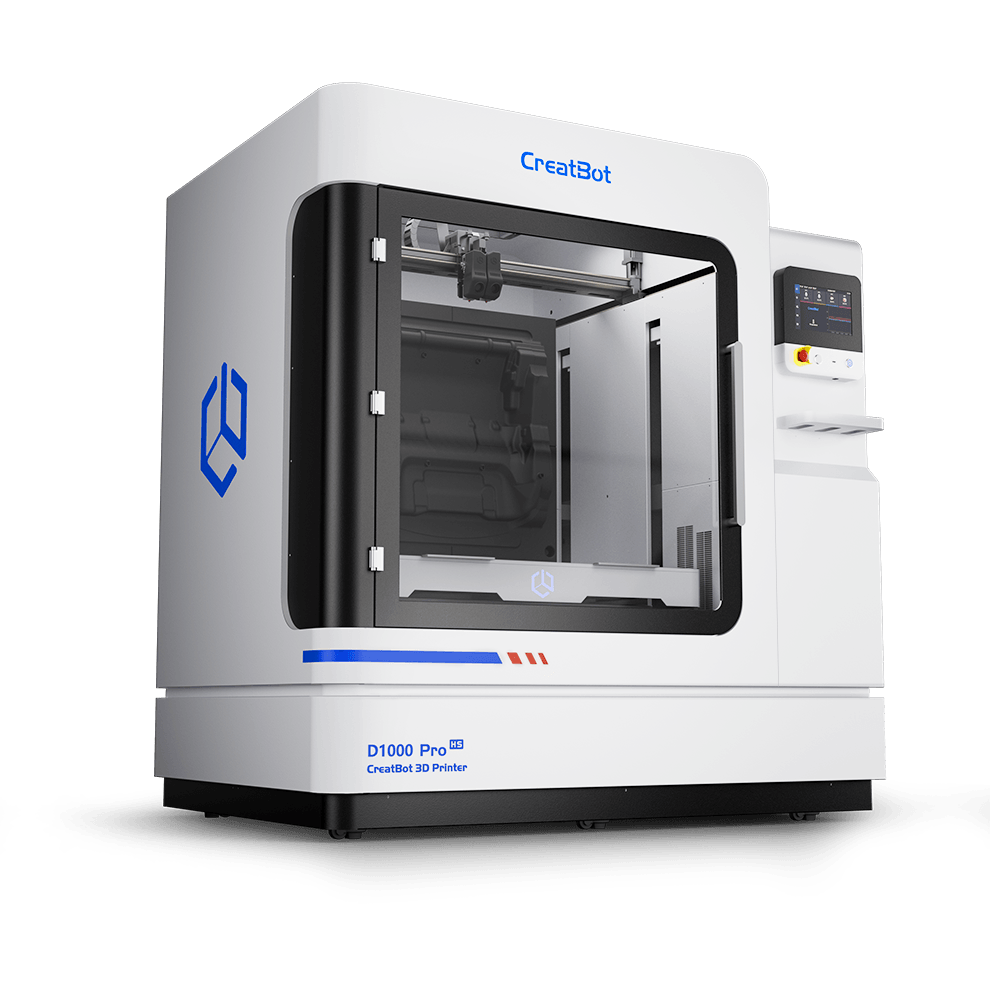

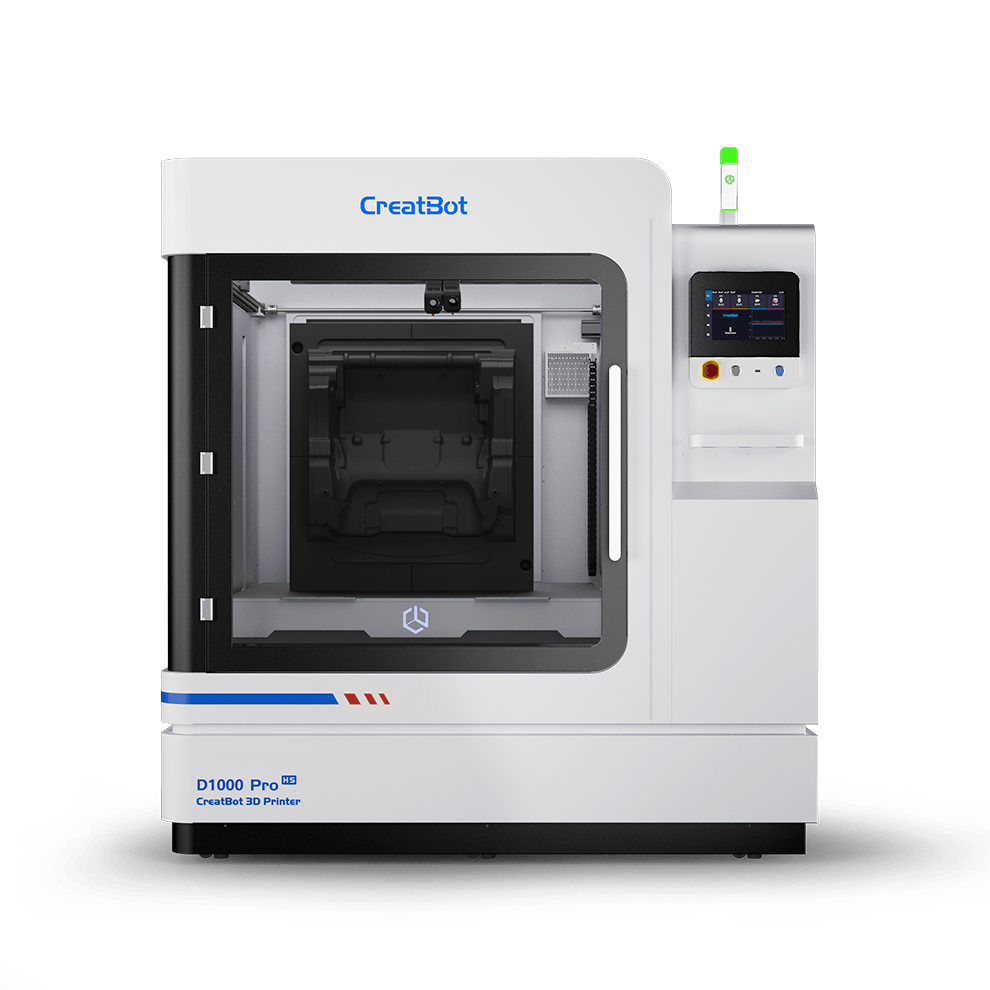

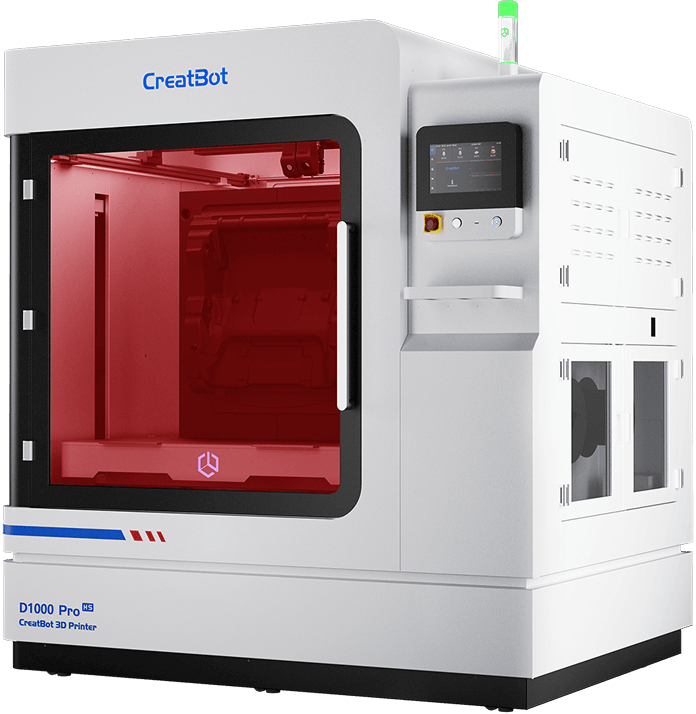

D1000 HS
One Cubic Meter Industrial Grade Large 3D Printer.

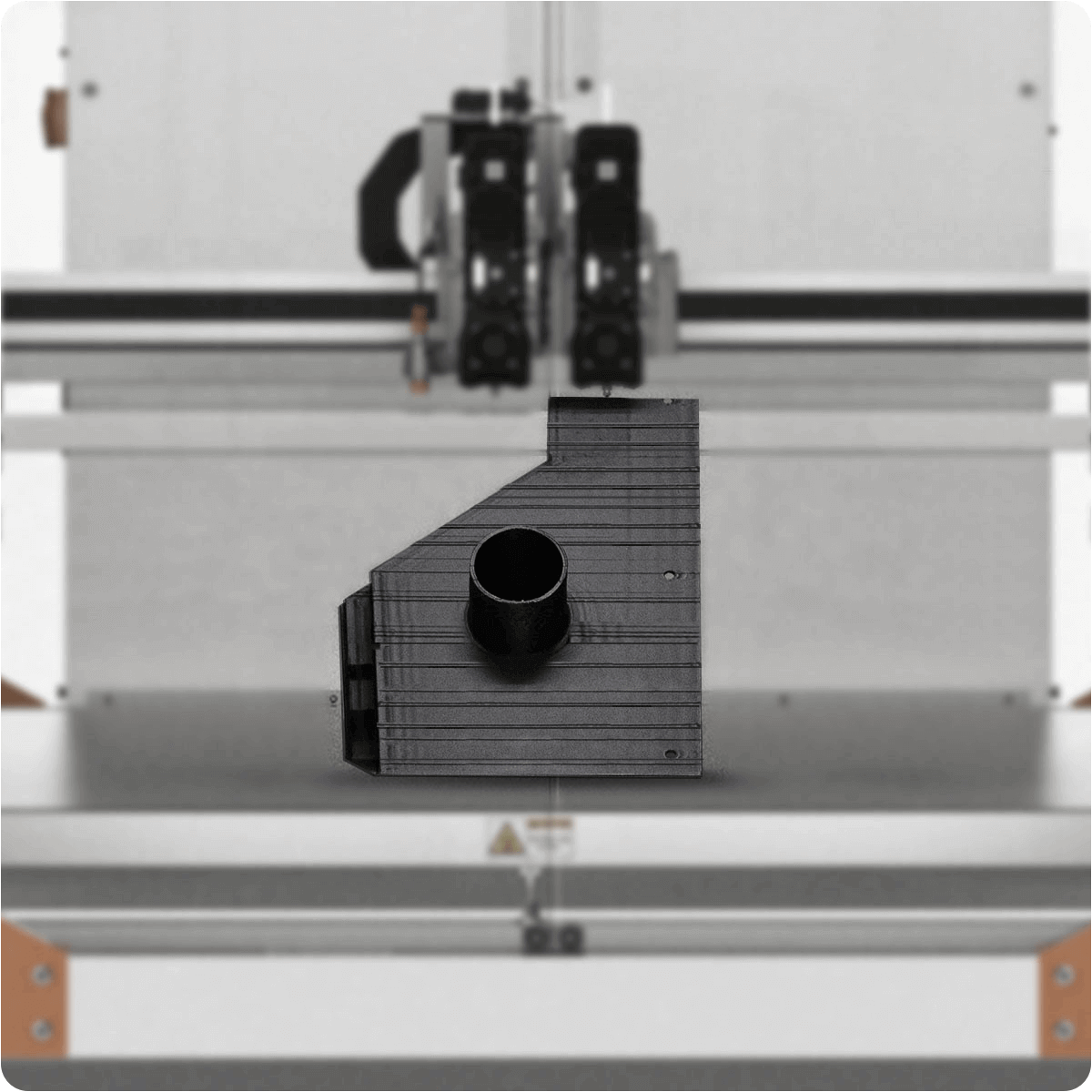

D1000 HS is upgraded from the model D1000，it is a new high-speed printing version based on the in-depth development of Klipper. It adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The stable printing speed can reach 300mm/s, which is 5 times the speed of the D1000 model.

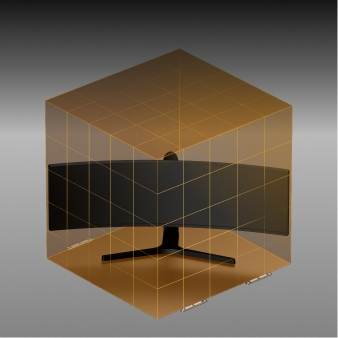

With a build volume of over 1000*1000*1000mm, it is the perfect machine for creating large and full size parts, prototype, tools, molds, jigs & fixtures in-house. Within days you can have a fully functional high quality prototype. CreatBot big rolls filament of PLA, ABS, ASA, PA-CF, etc suit well for your big models without worrying frequent replacement of filament. All its features manufactured to the highest standards. Every time, every parts, no mistake.
Every time, every parts, no mistake.
Size worry-free For High strength prototype
The CreatBot D1000 was created to make industrial 3D printing of large-scale objects and prototype as easy as possible. It is embedded with many advanced technologies for ultra big, impressive prints. It will be your best choice with no doubt, if you are looking for an industrial large scale 3D printer for prototype and engineering-grade materials.
If you are tired of the fragility of PLA and the deformation of ABS, try our revolutionary material UltraPA-CF. Print your large model with a big size nozzle, in a few days, you will get an oversized model with high strength 80MPa and temperature resistance 150 ° C. The best choice for your prototype verification.
Size worry-free For High strength prototype
The CreatBot D1000 was created to make industrial 3D printing of large-scale objects and prototype as easy as possible. It is embedded with many advanced technologies for ultra big, impressive prints. It will be your best choice with no doubt, if you are looking for an industrial large scale 3D printer for prototype and engineering-grade materials.
If you are tired of the fragility of PLA and the deformation of ABS, try our revolutionary material UltraPA-CF. Print your large model with a big size nozzle, in a few days, you will get an oversized model with high strength 80MPa and temperature resistance 150 ° C. The best choice for your prototype verification.
Design Prototype
Functional Prototype
End-Use Parts
Spare Parts

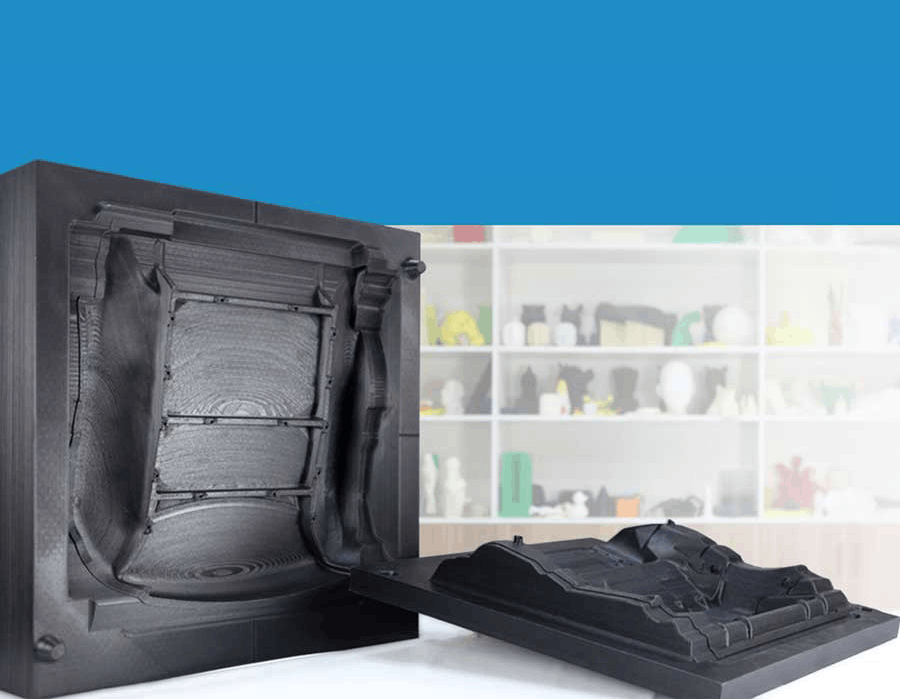

Forms & Molds

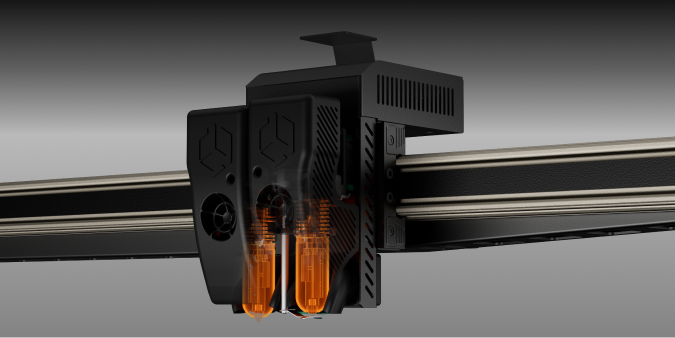

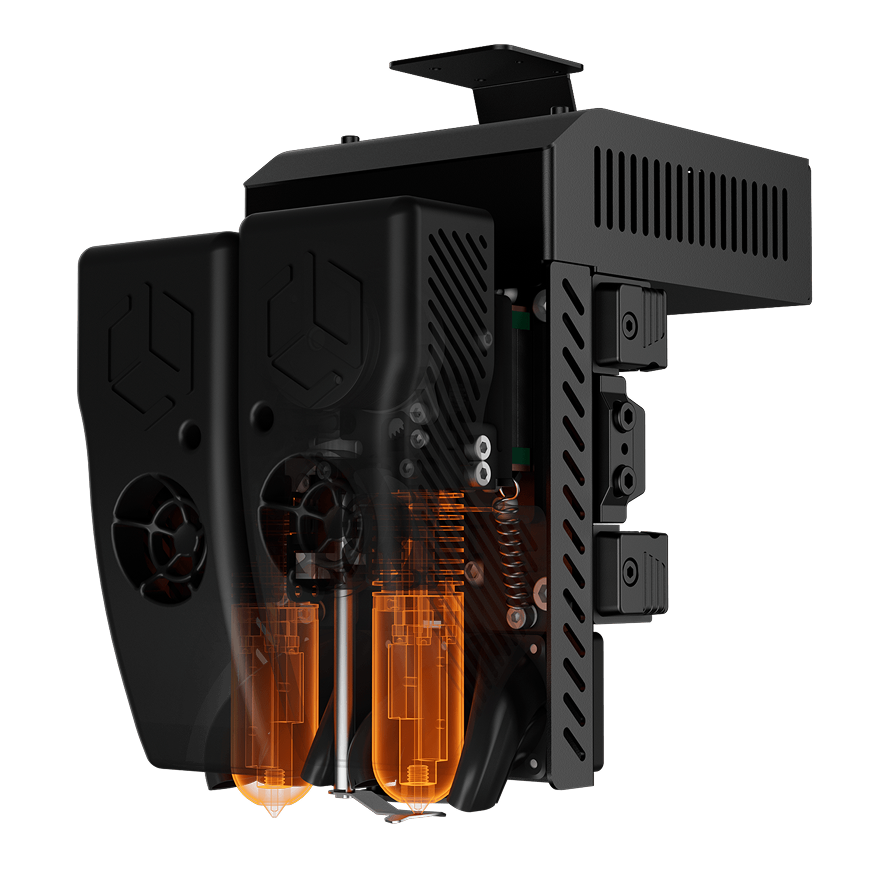

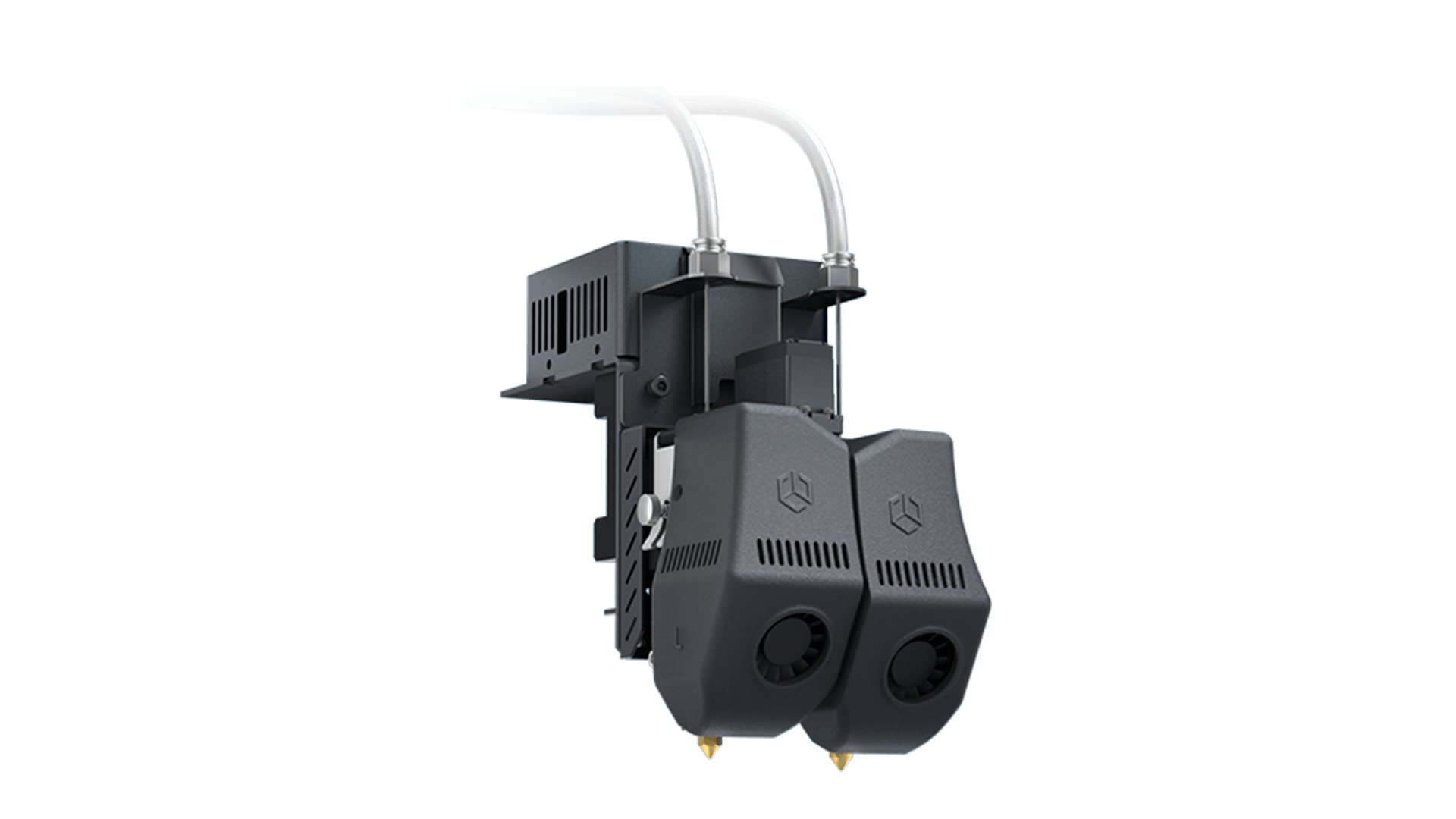

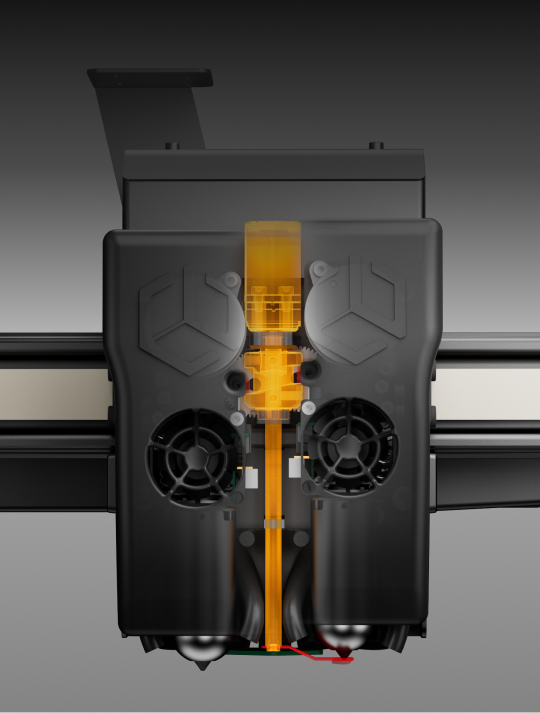

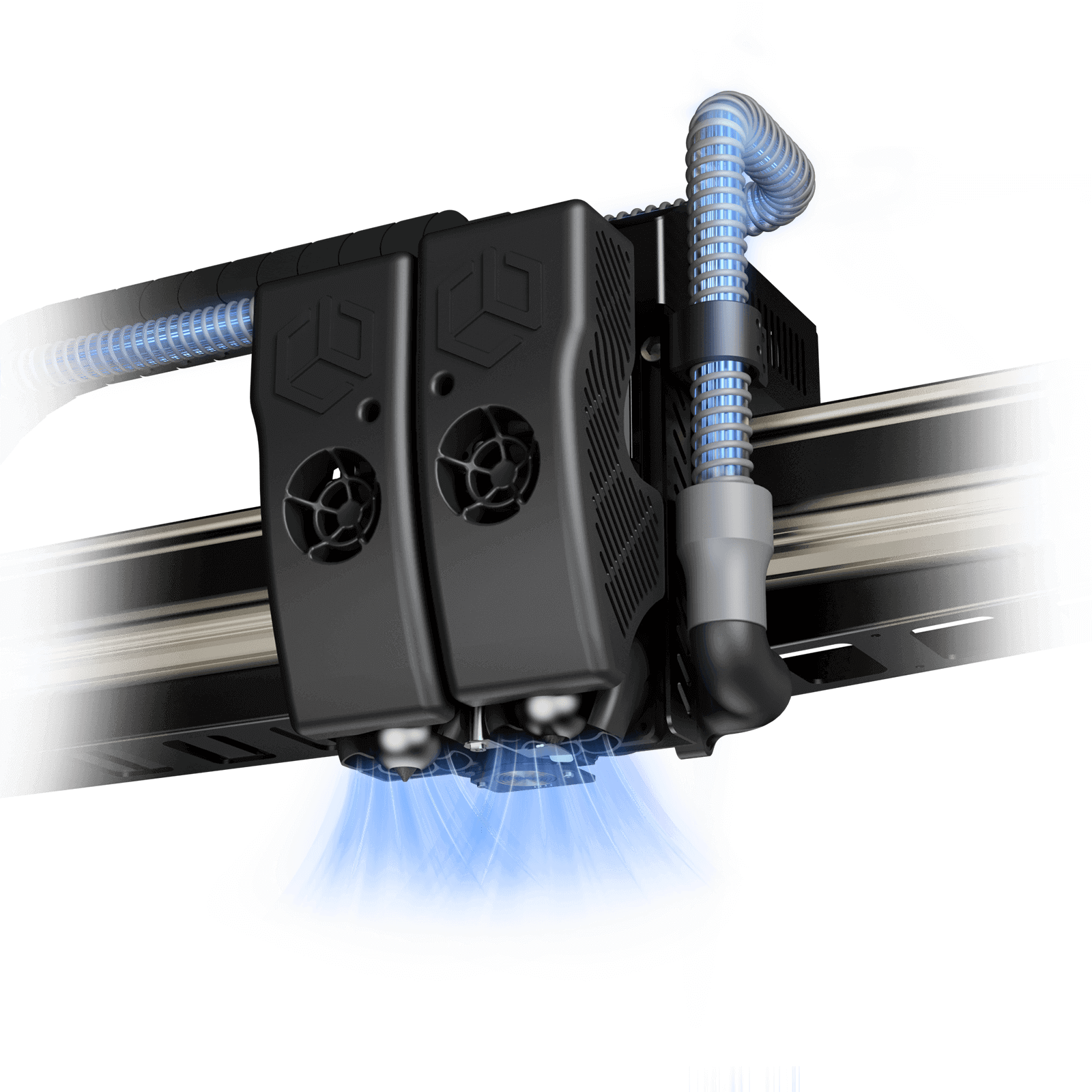

Auto-rising Dual Extruders 420 ℃
D1000 is embedded with new smart auto-rising dual-extruder kit with hotend temperature up to 420 ℃. The hotend can be replaced to different size one fastly. It is able to print not only huge PLA + water solubility materials PVA for prototype with fastest speed, but also ABS, PC, Nylon, Carbon Fiber and more high performance material for direct application. The dual-hotend is easy to maintain and affordable to replace.
Outage Restore & Filament Detection
The printer will automatically memorize the current position and save print data, lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power on. No trace!
The printer will avoid invalid printing by stopping print and warning when filament runs out.

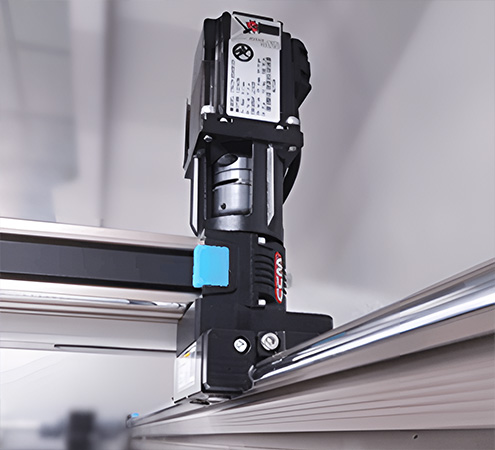

Linear rail and Servo motors
When it reaches to 1000mm+ length, small rail have big deflection. The D1000 accurate linear rail structure is very thick and strong. It won’t deform or lose precision after print head million times shock.

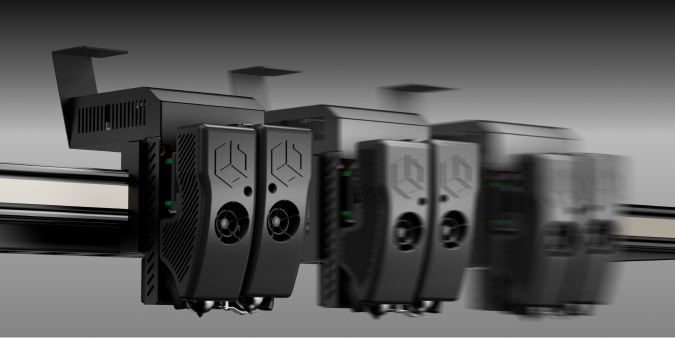

With servo motors, with timeliness, fast response, no inertia, and no delay. closed-loop control of position overcome the problem of losing step. heat and noise are significantly reduced. It gives print model ultra high performance with high speed.

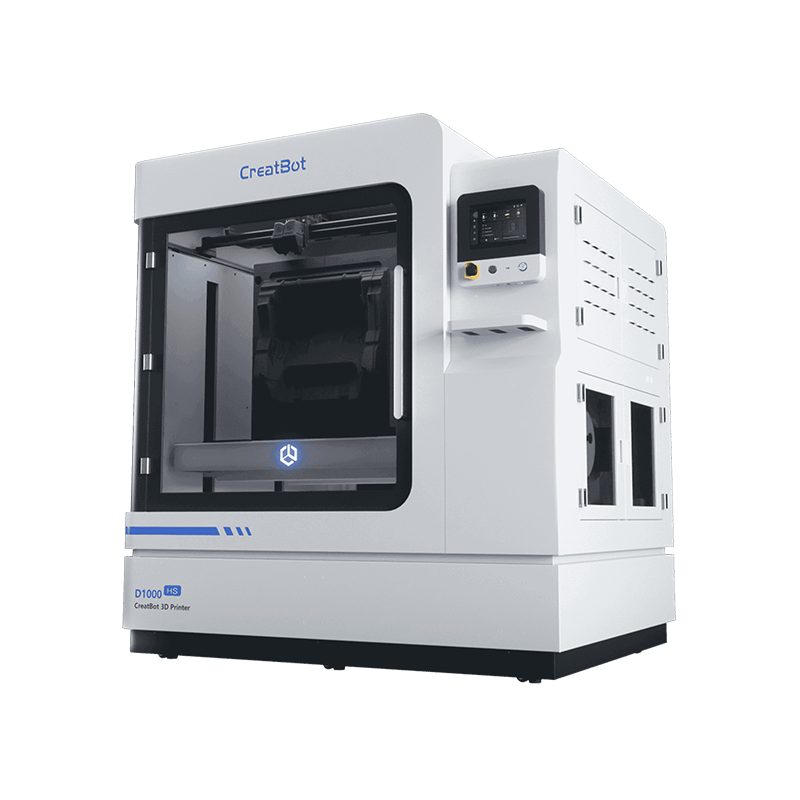

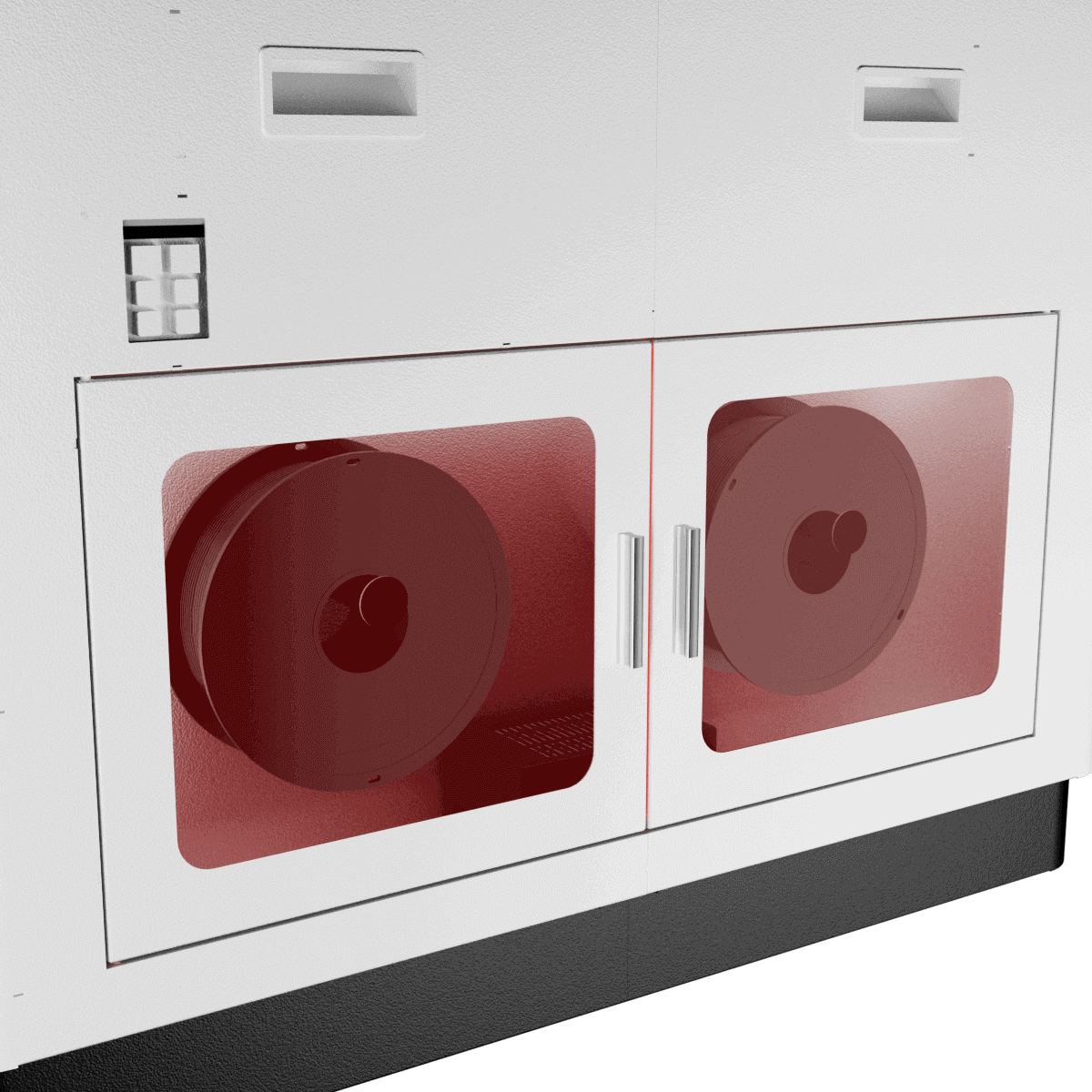

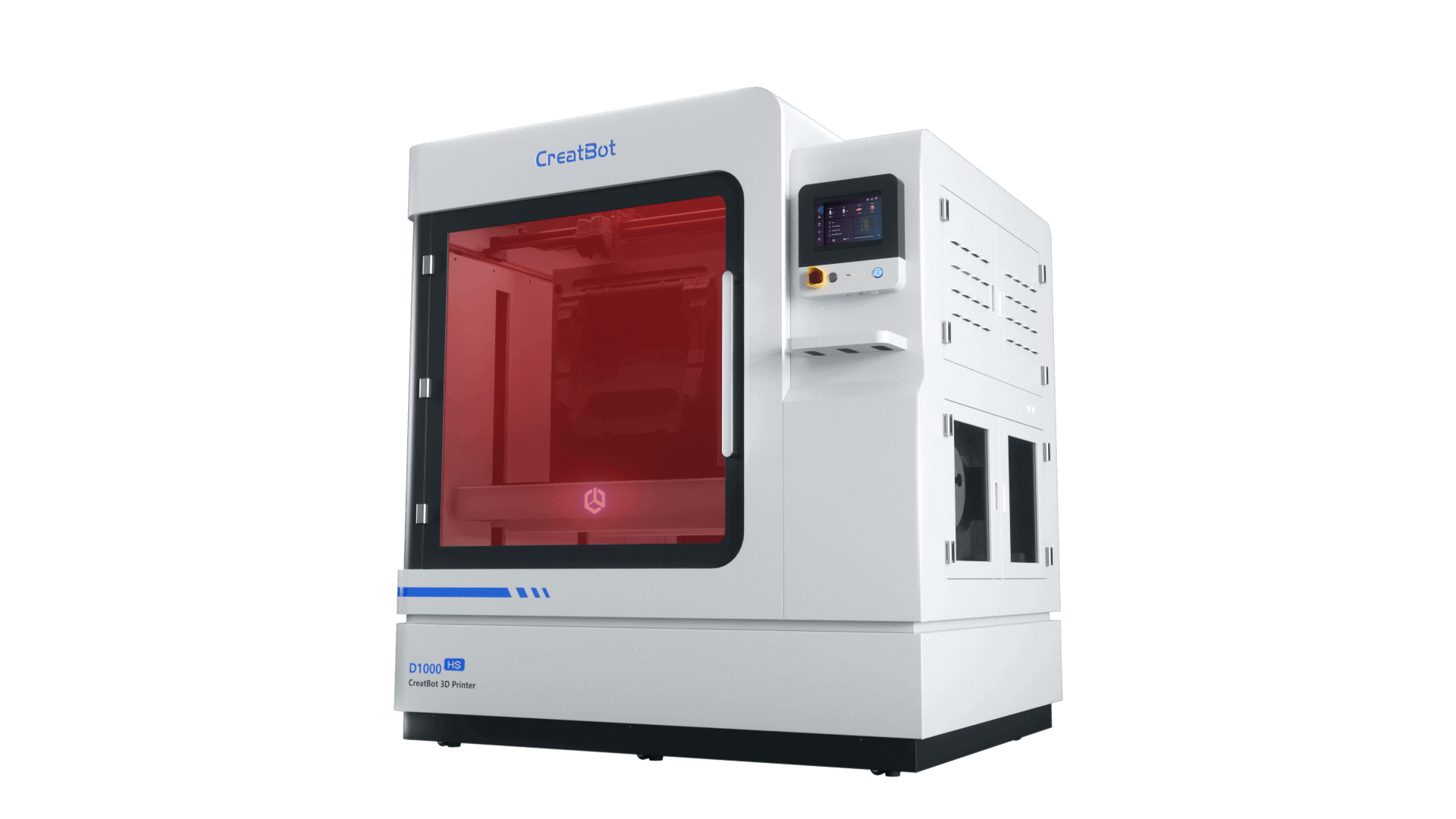

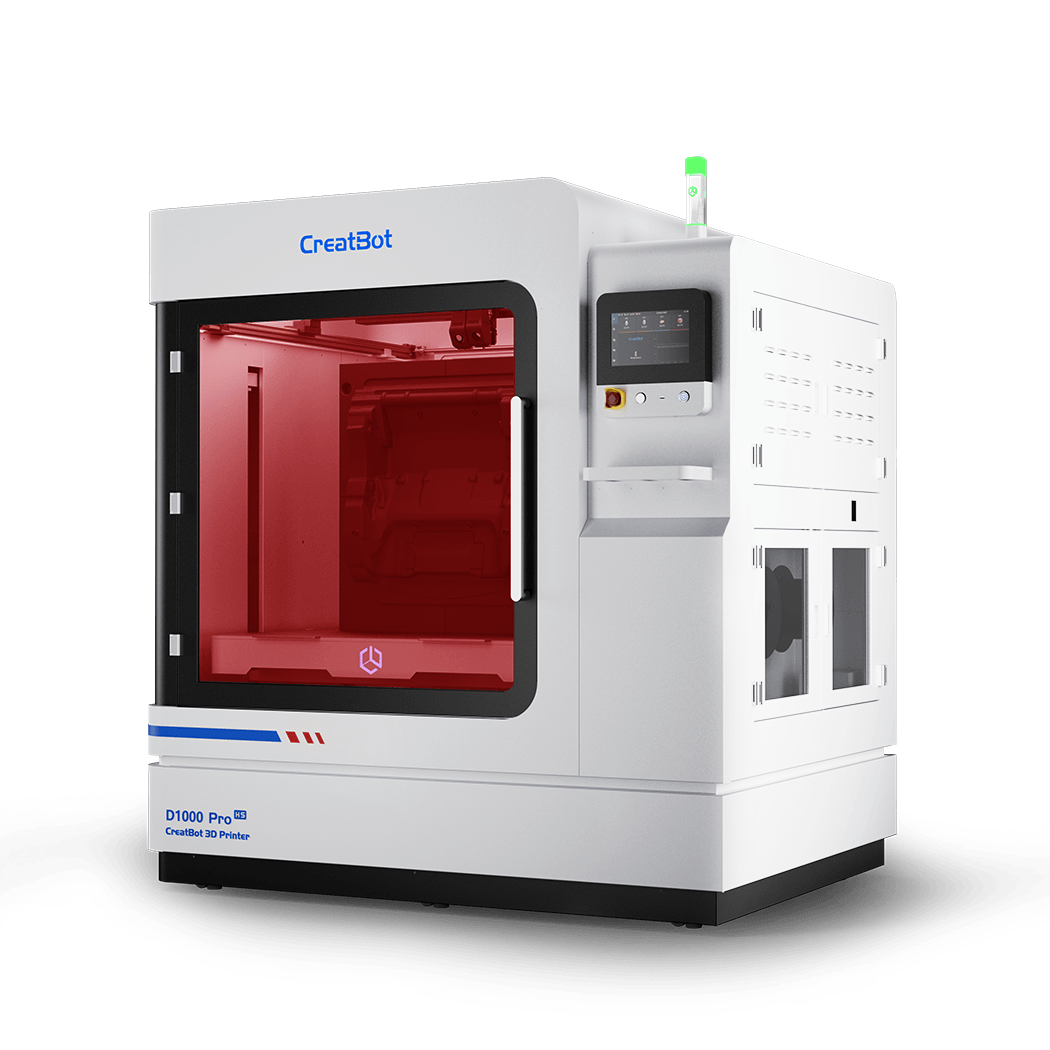

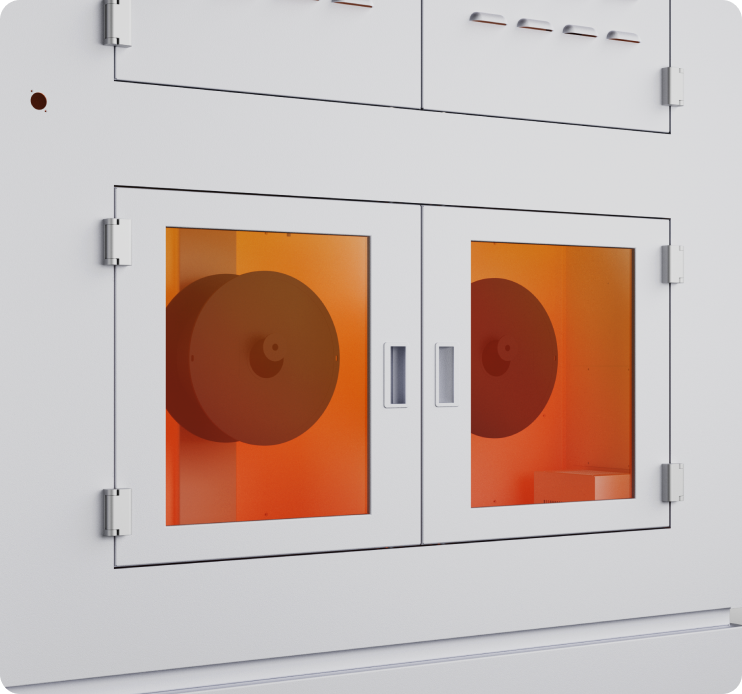

Hot Chamber + Filament Dry Room
content04_part03_des01
The filament dry room provides chamber temperatures of 45°C and 65°C to dry 2*5kg/roll filament like PLA, nylon, PC, ABS and other materials with water absorption.

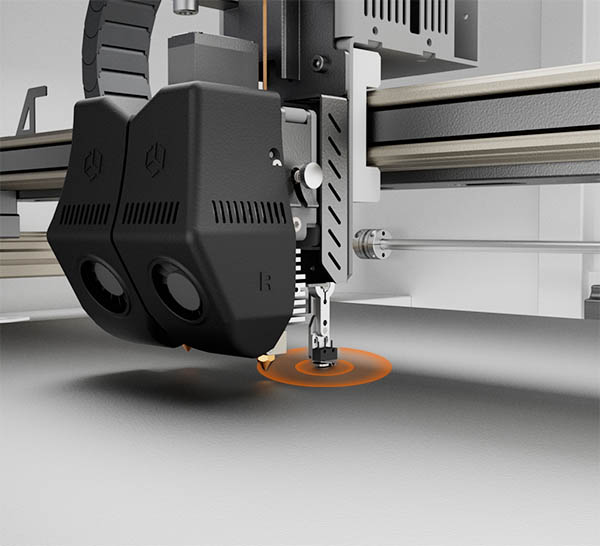

Auto Leveling Platform

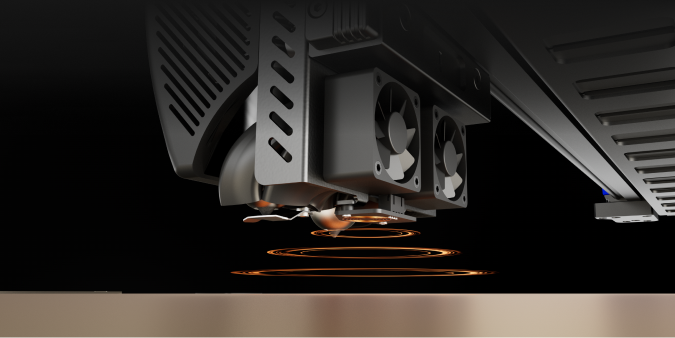

Use of 100 points through the high precision servo probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

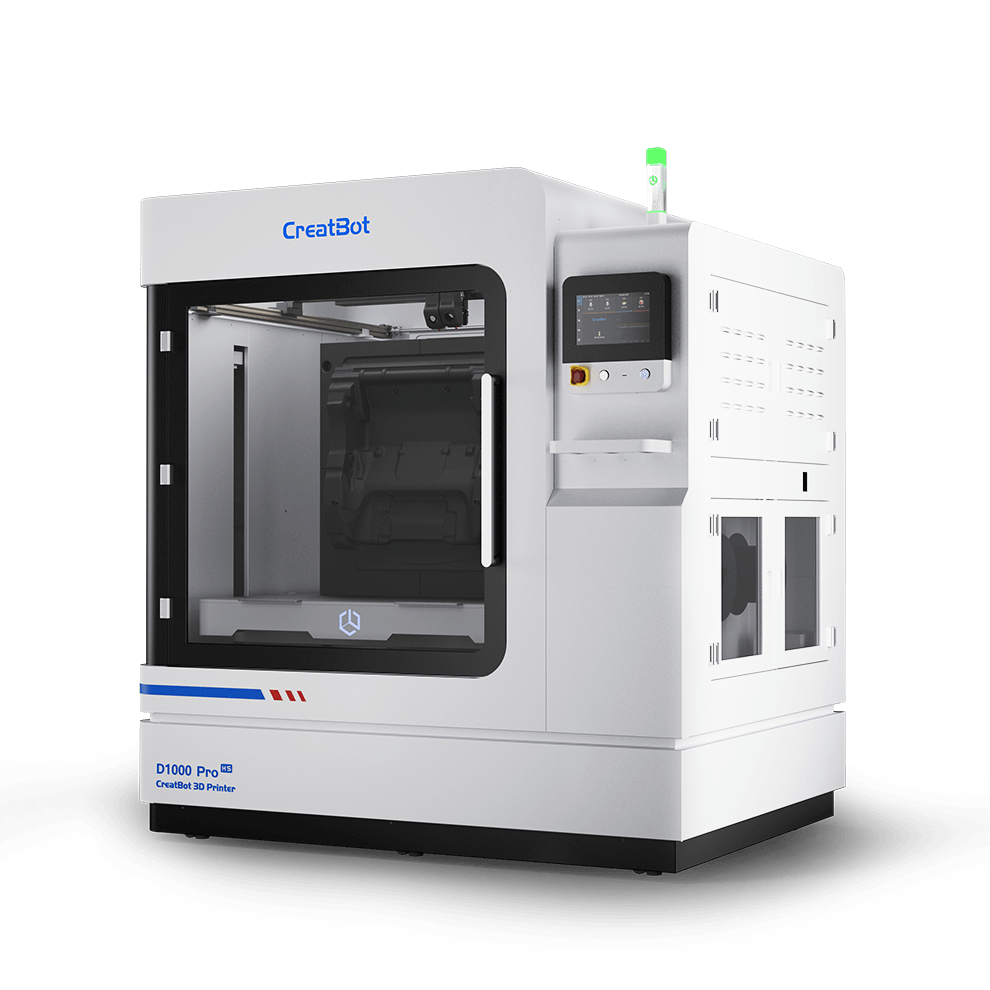

CREATBOT D1000
- 1000*1000*1000mm
- High resolution & speed

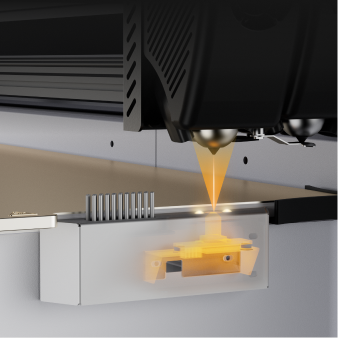

- Camera control technology
- Reliable 24/7

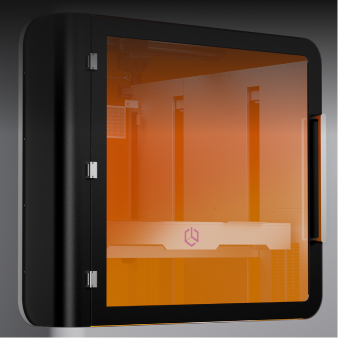

- Fully enclosed

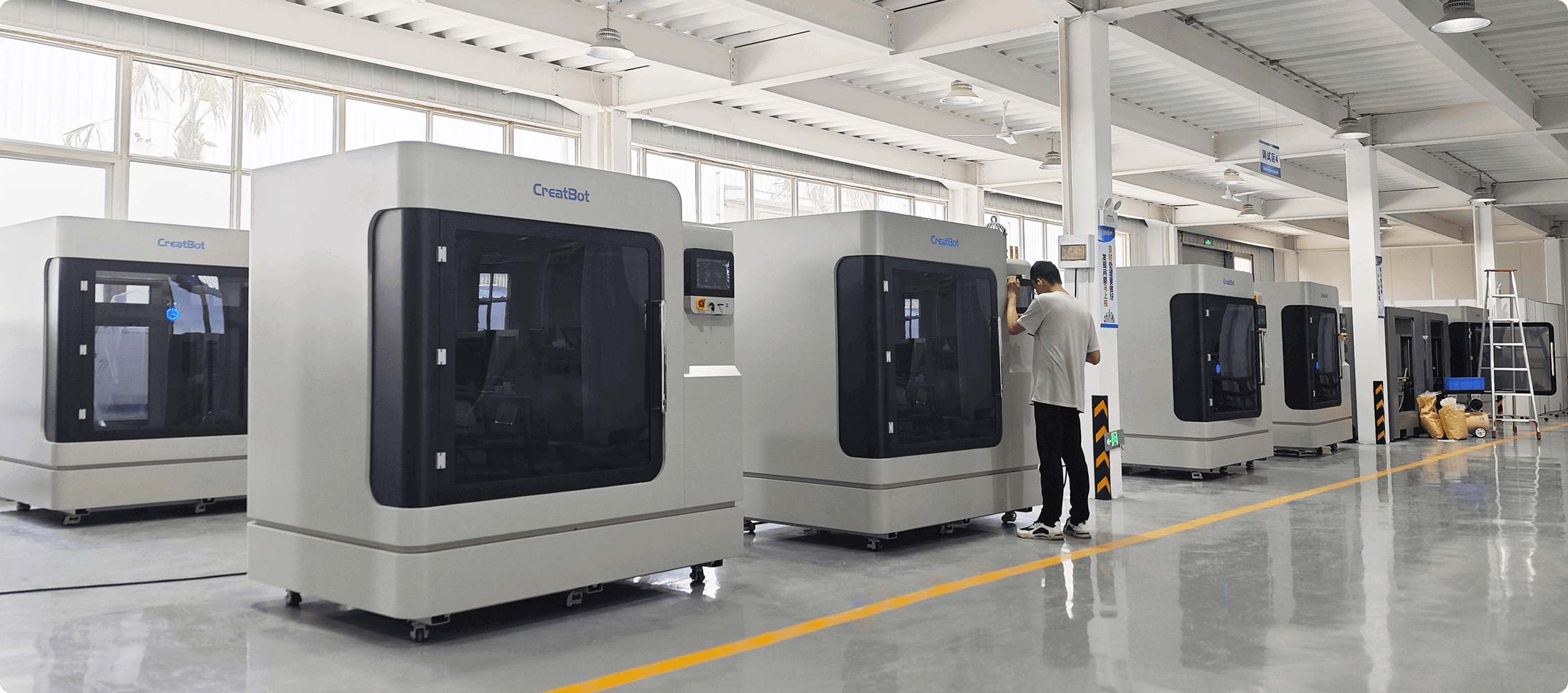

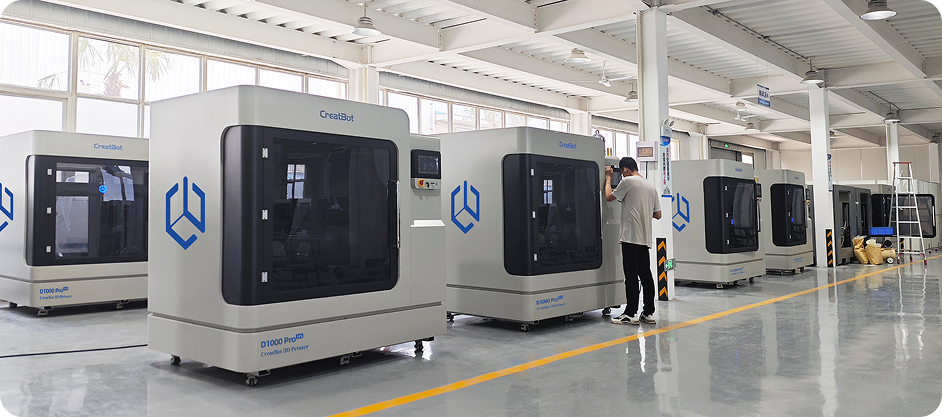

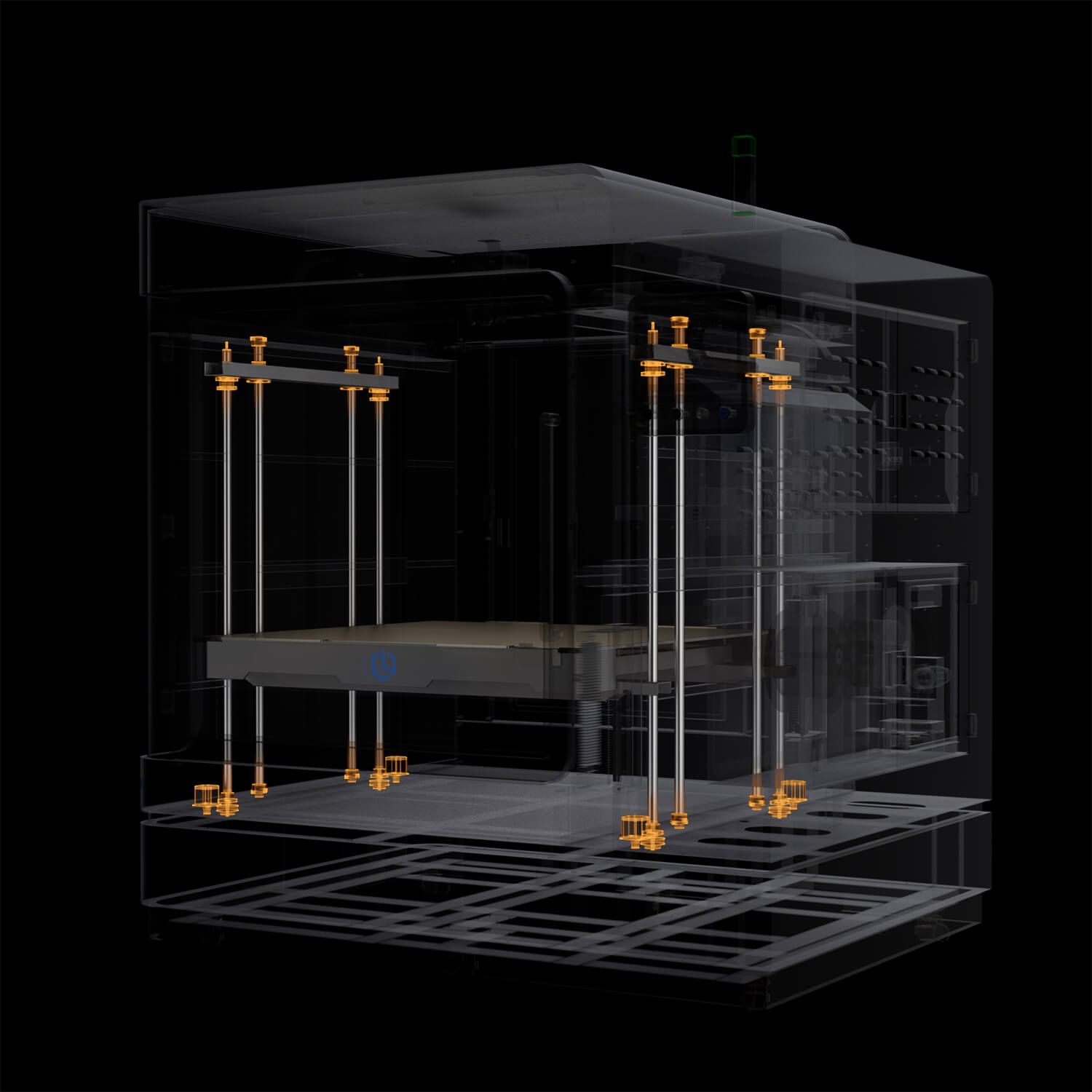

Stability
The whole-steel body not only ensures stability during printing but also greatly extends working life. The optimization and cooperation of overall structure ensure sustainable and efficient operation. The first batch of CreatBot 3D printers with whole-steel body have been working for 9 years and more than 30,000 hours.
Affordable And Reliable Large 3D printer
CreatBot D1000 was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is an industrial 3D printer that responds to market demand and is embedded with a new smart dual extruder kit, an enclosed heated chamber, automatic leveling system, and camera control for big, impressive prints.

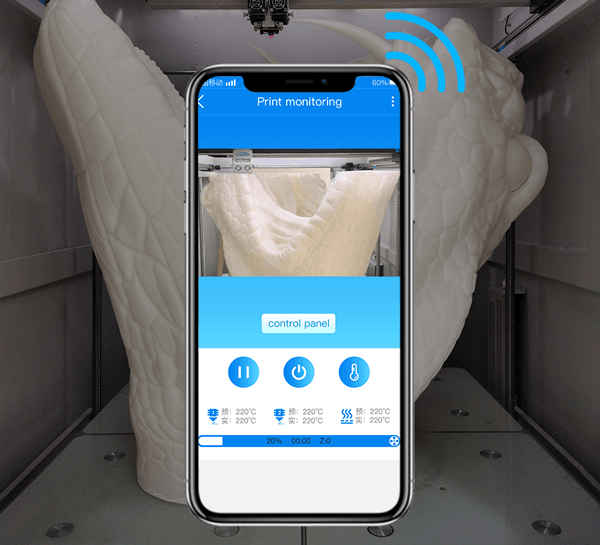

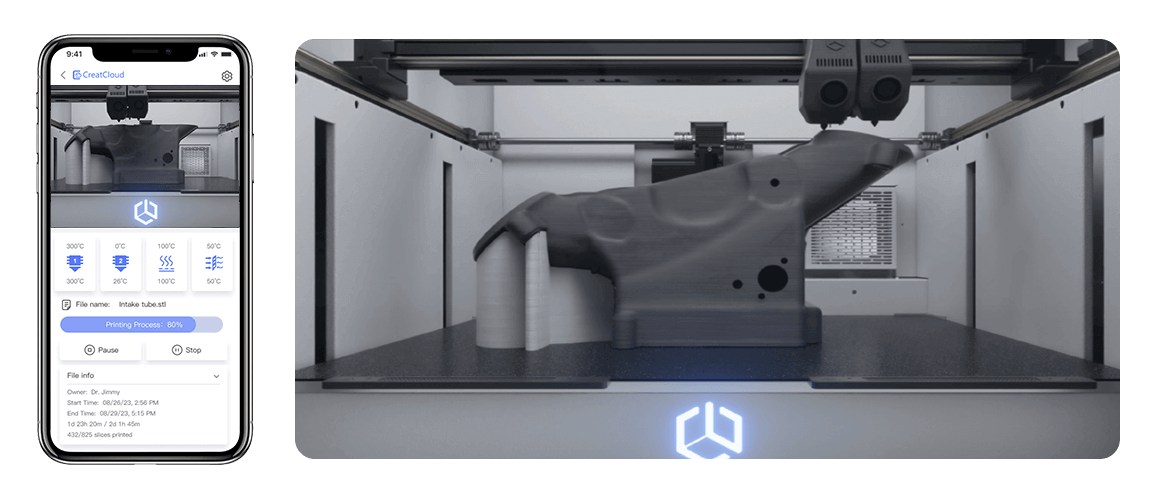

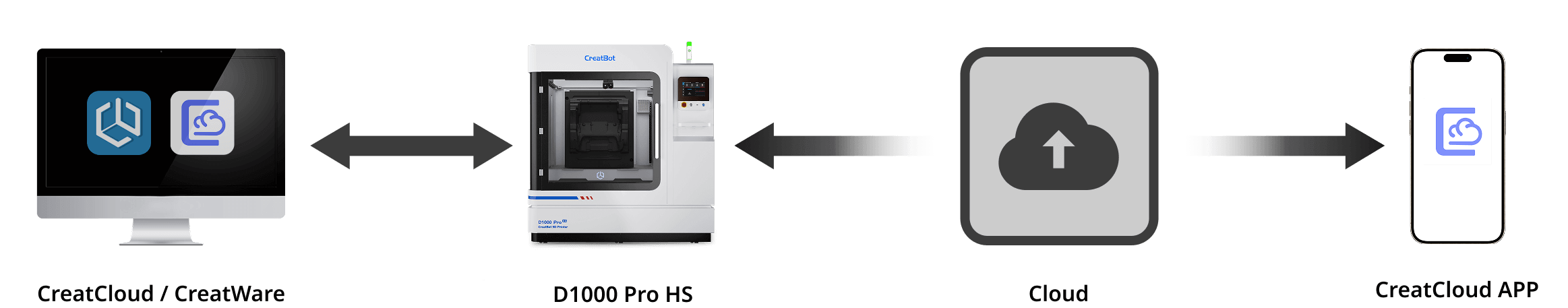

Camera control technology allows customers to control the printing process with an APP, which can achieve the best printing quality in the shortest time without failure. With a fast-heating platform and hot chamber, this high-resolution large-print workhorse produces incredible results with high-quality materials.
CreatBot D1000 sets a new standard in additive manufacturing and extends the material capabilities of large-scale 3D printers, bringing the potential to greatly reduce costs and time for more companies.
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling |
| Build Volume | Single Extrusion: 1000*1000*1000 mm Dual Extrusion: 940*1000*1000 mm |
| Number of Nozzles | Auto-rising dual extruders |
| Layer Resolution | 0.05 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, ASA, PETG, PC, Nylon, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, etc. |
| Nozzle Diameter | 0.8mm (0.3-1.0mm optional) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Speed | |
| Print speed | 100-300mm/s |
| Travel speed | 300mm/s |
| Flow rate | 90 mm³/s |
| Software | |
| Software | CreatWare, Orca Slicer, Cura, Simplify3D,Prusa, etc |
| Supported File Types | STL,OBJ,Gcode,AMF,STP,STEP |
| Operating Systems | Windows, macOS |
| Special Function | |

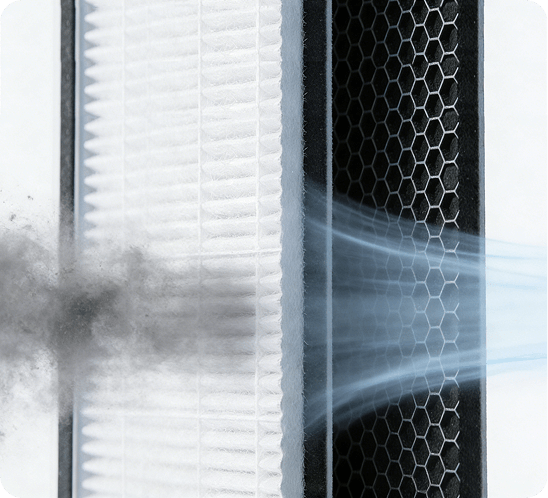

| Air filter | HEPA+Carbon |
| Filament Detection | Pause printing when filament run out |
| Firmware | Klipper - high speed |
| Camera control | Camera remote monitoring and real-time control of the printing process |
| Temperature | |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 100 ℃ |
| Hot Chamber Temperature | 60 ℃ |
| Filament Dry Room Temperature | 0 ℃/70 ℃ |
| Mechanical | |
| Build Plate | Aviation aluminum plates+removable magnetic platform |
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Auto raising extruders | Yes |
| X Y Positioning Precision | 0.011 mm |
| Z Positioning Precision | 0.0025 mm |
| Electrical | |
| Power Requirements | 220~240 V, 50~60 Hz |
| Screen | 10-inch full color touch screen independent operating system (multi-language) |
| Rated Power | Printer: 5500W, Chamber: 6000W |

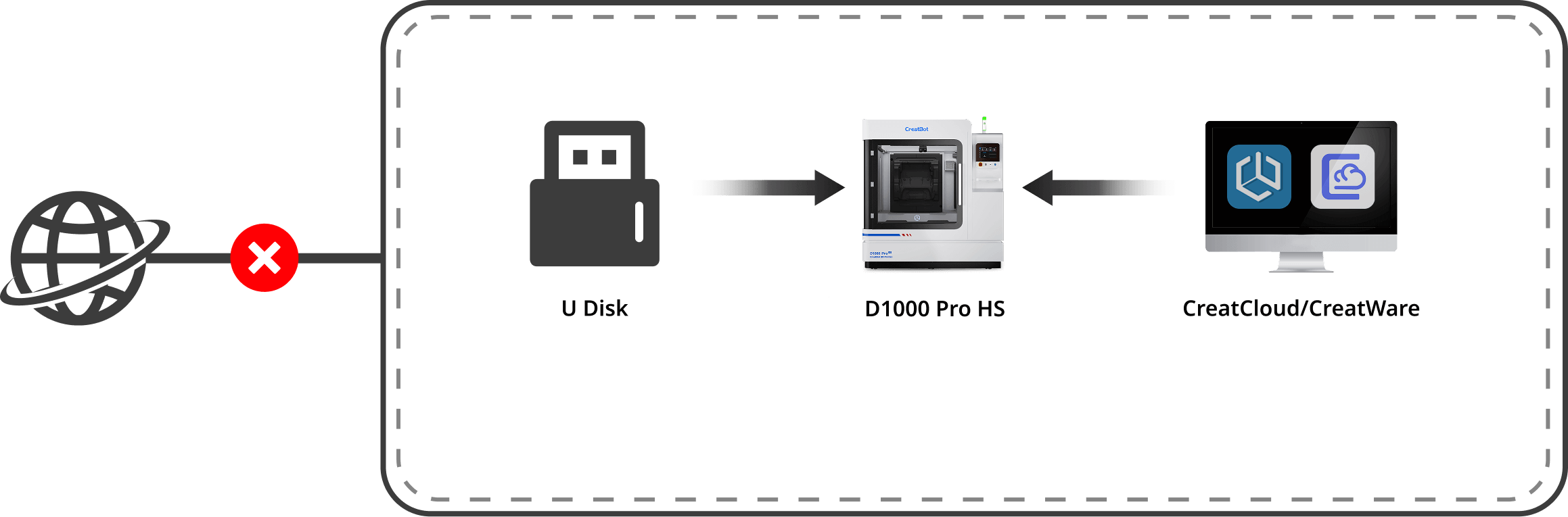

| Storage Media | U Disk/WIFI |
| Connectivity | USB |
| Size & Weight | |
| Product Dimensions & Weight | 1810*1350*1942mm 650kg |
| Packing Size & Weight | 1980×1520×2200mm 750kg |

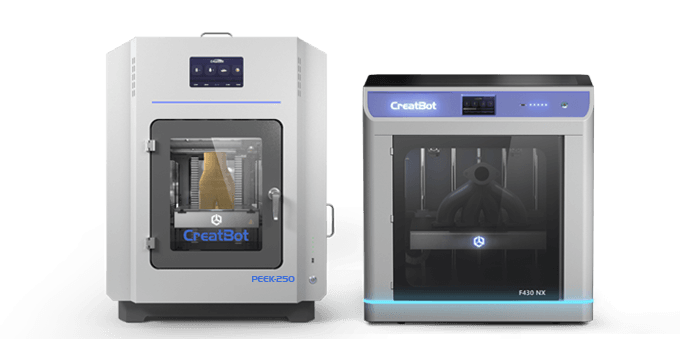

NEED HELP DECIDING?
