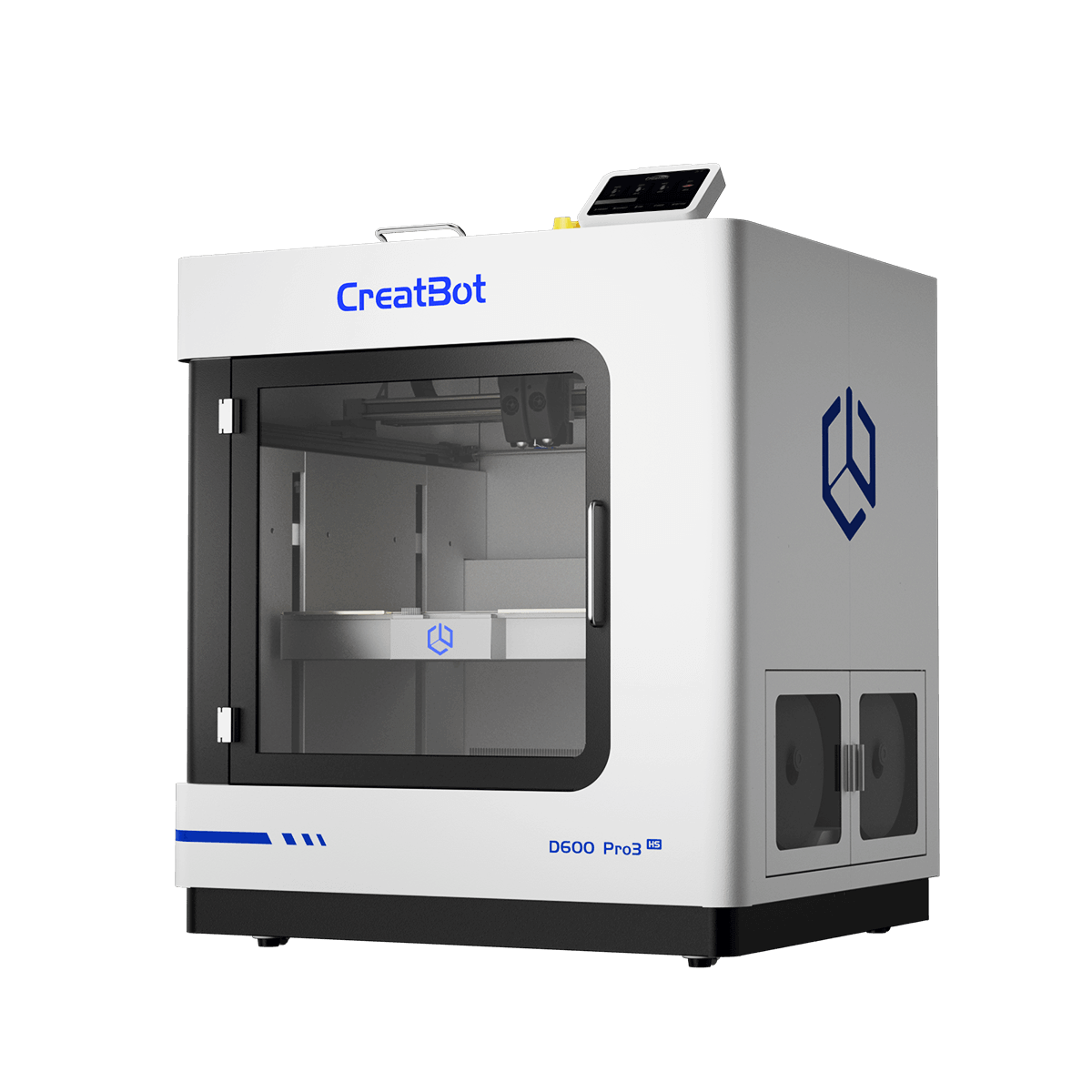

D600 Pro3 HS

The World's #1 Selling Professional Large-Format 3D Printer

*According to CONTEXT, the D600 Series is the global sales leader in industrial 600mm³ 3D printing

D600 Pro series has been proven to be the world's most popular professional large-size 3D printer. It has undergone 6 years of market accumulation and verification. Since its launch, we have continuously upgraded and improved the D600 Pro based on user needs and feedback. So far, we have made approximately 30 improvements in product details, incorporating new technologies, and fixing issues. Make it a very stable professional large-size 3D printer, deeply preferred by small and medium-sized enterprises.

The D600 Pro 2 HS is a fully upgraded high-speed printing version of the D600 Pro, featuring a deeply optimized Klipper firmware for revolutionary performance breakthroughs. Equipped with a newly designed high-performance hotend capable of ultra-fast extrusion up to 90mm³/s and an enhanced motion system, it achieves stable printing speeds of 300mm/s—five times faster than the standard D600 Pro. This industrial-grade machine, purpose-built for high-speed printing, combines cutting-edge engineering design with advanced technological capabilities, redefining the speed benchmark for professional 3D printing.

It has been professionally designed, has powerful performance, and features no shortcomings. Large print volume, faster speed, stronger material compatibility, simpler operating procedures, and more stable 7/24 operation. Undoubtedly, it will capture the needs of all professional 3D printer users with a size of 620mm*3 worldwide.

Get a quote Check Specs

D600 Pro3 HS

The World's #1 Selling Professional Large-Format 3D Printer

*According to CONTEXT, the D600 Series is the global sales leader in industrial 600mm³ 3D printing

Get a quote Check Specs

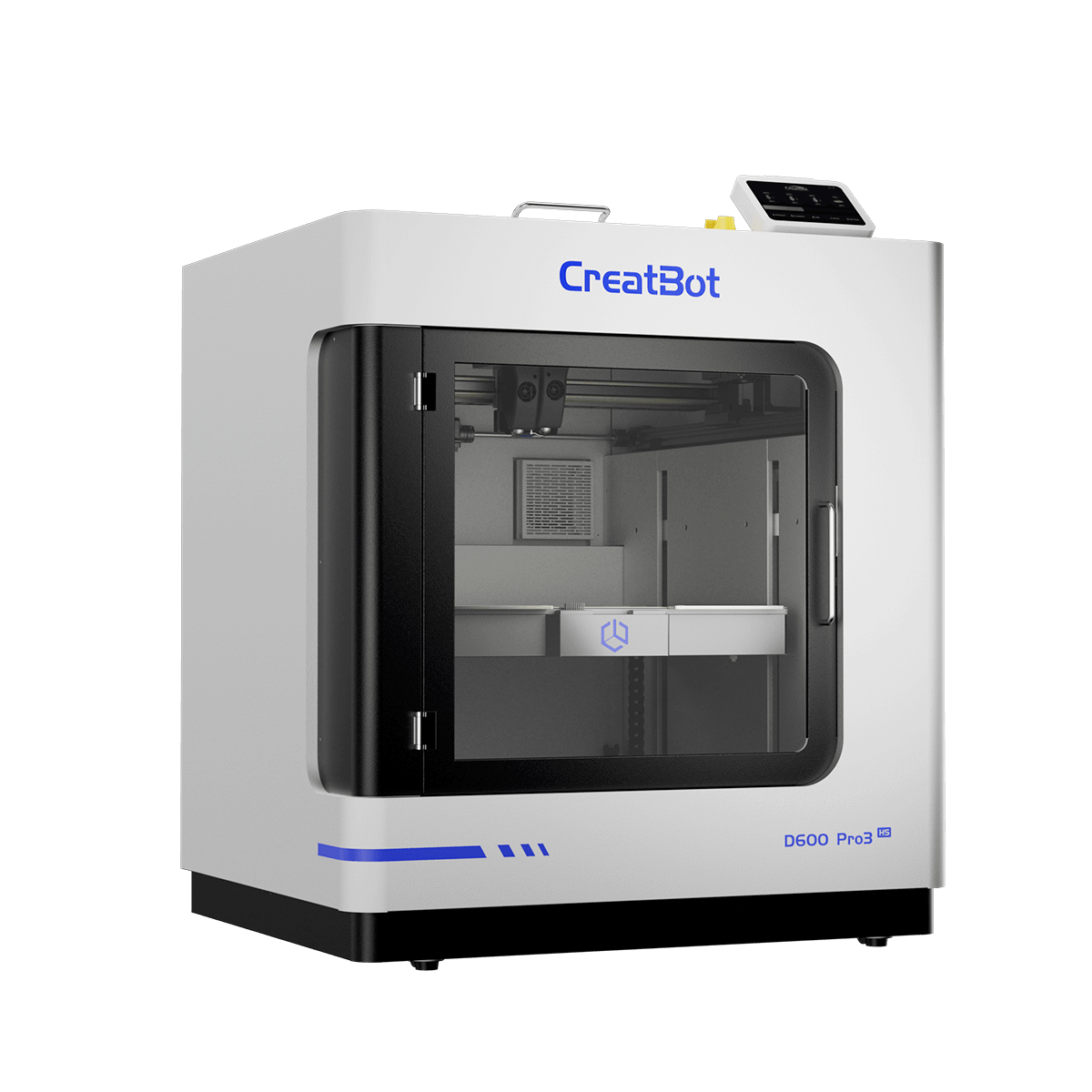

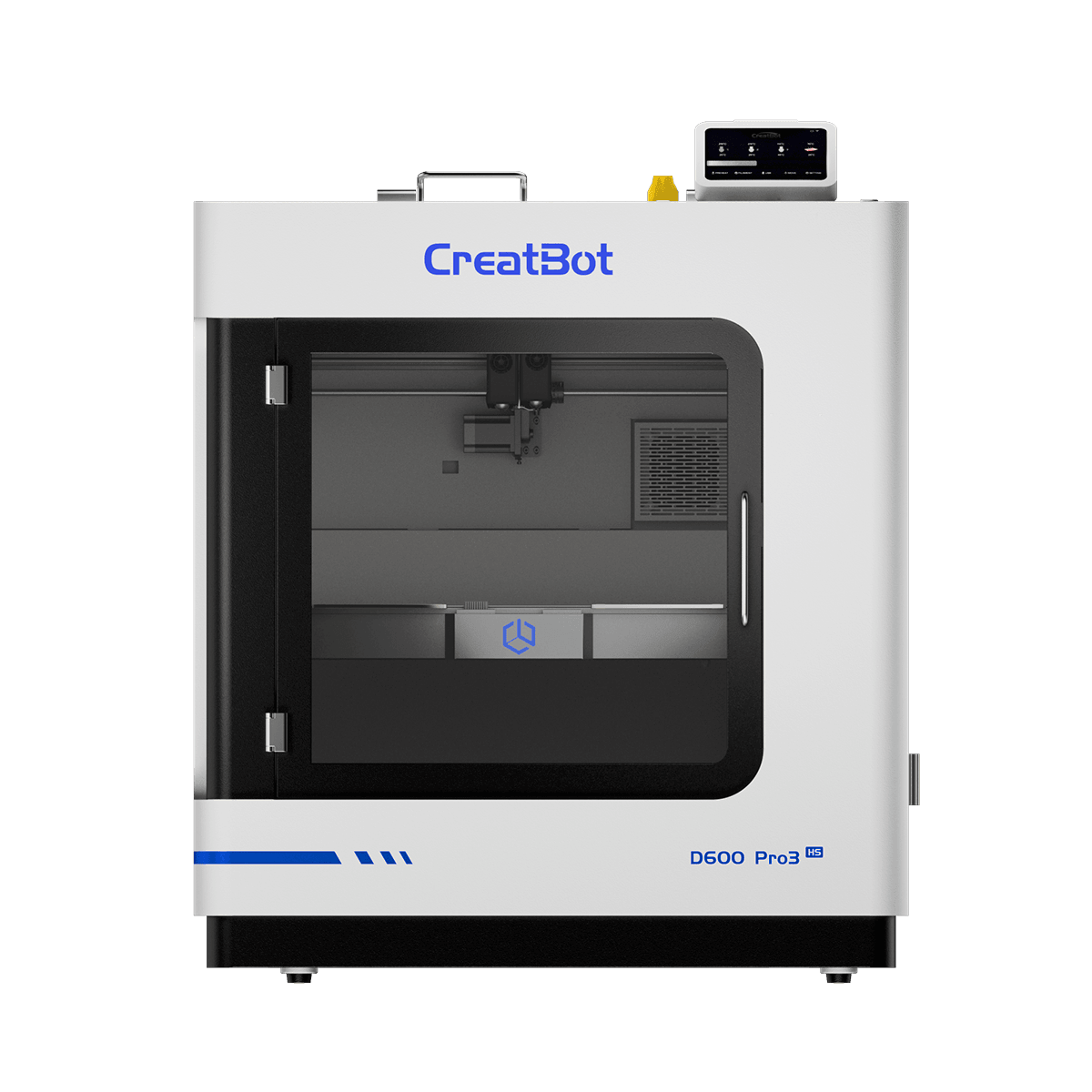

CREATBOT D600 Pro3 HS

620*620*620mm
420°C+120°C+80°C
High speed up to 300mm/s
Removable Magnetic Platform
Reliable 24/7
Fully enclosed

CreatBot D600 Pro Series 3D Printer Air Intake With High Tep.Nylon Alloy

Bruce Warren apparently wasn't happy with setting a world record once, so he beat his own record today in his Cadillac CTS-V. His blistering 192.2 mph（309.3km/h) marks the new world record for a stock blower CTS-V & CTS-V Sedan. The CTS-V equiped with a 3D printed intake made by justin Taylor, a top engineer for modified custom car parts. He can do everything with his CreatBot D600 Pro Series 3D printers.

'My 3D printed intake just broke a world record for the fastest CTS-V half mile. Also in September we will be headed to Texas to break the mile record for the CTS-V as well. Which is great because my intake will be on the car. I also have one that will be going out next week to a car that should break the 1/4 mile record. All with a 3D printed air intake made on your machines!! Going to be taking over this industry as I am already working on a ZL1 camaro version. All of these cars have your intake and have been holding up great! People love the quality of the 3D printing!'

----Justin Taylor

Full-Auto Dual-Nozzle XYZ Offset Calibration

XY via HD Macro Camera

Fully-Auto AI Visual Recognition

0.02mm Accuracy

Z via Dual Photoelectric Sensor

Full-Auto Multiple Positioning

0.005mm Accuracy

Eddy Current Bed Leveling 0.001mm Precision

Revolutionizing Large-Scale Print Platform Calibration

The eddy current leveling system solves critical challenges in calibrating large build plates. Utilizing high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001mm—improving precision by 99% compared to traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.

Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds—reducing leveling time by 80% and significantly improving printing efficiency.

Auto-Raising Dual Extruders | 420℃

Flow Rate:90 mm³/s

Heating to 400°C:2 Mins

Thermostat Accuracy:±0.15 °C

The D600 Pro3 HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hotend temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.

Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.

Dual Nozzle Auto-Resume Printing

Auto-switch to backup nozzle on filament runout.

Left Nozzle

Right Nozzle

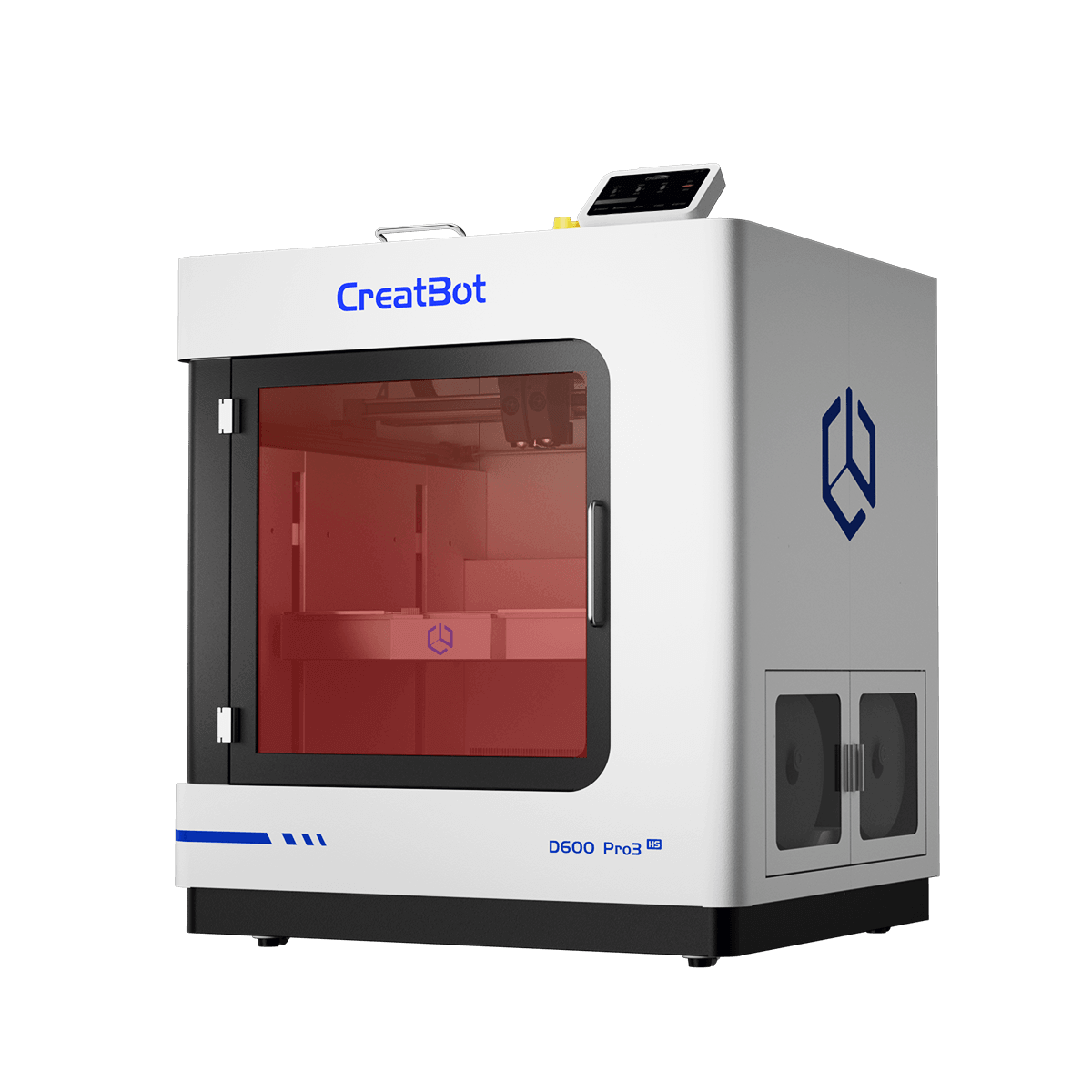

Active Heated Chamber | 80℃

The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 80°C. This is crucial for preventing the shrinkage and deformation of large engineering materials.

Reduces Thermal Stress & Warping

Improves Interlayer Bonding

Minimizes Moisture Impact

Ensures Process Consistency

When printing large or high-strength engineering materials (e.g., ABS), uneven cooling causes internal thermal stress, leading to warping, delamination, or cracking.

Did You Know a Heated Chamber Can Warp Your Printer?

Ln large-format FFF 3D printing, when chamber temperature rises, the printer frame and structural components also undergo thermal deformation—metal expansion, axis misalignment, and mechanical part displacement. These micro-distortions accumulate layer by layer, ultimately leading to:

- Layer Misalignment and Surface Roughness
- Loss of Dimensional Accuracy
- Structural Defects in Large Parts

This is why treating chamber temperature as an optional add-on, or claiming it can be retrofitted later, proves these manufacturers just don't get it. They have no compensation for machine deformation—some aren’t even aware of the issue. They simply add it as a feature to drive sales, with total disregard for actual print quality.

With 8+ Years of R&D on the Chamber Temperature of FFF Industrial Printers

Our Solution: The Synergy of Two Patented Technologies—Intelligent Chamber Heating Algorithm & Z-Axis Magic Box Technology:

Intelligent Heating Algorithm: Predicts and counteracts irregular deformations caused by chamber temperature variations
Z Axis Magic Box: Maintains flawless surface finish via real-time thermal compensation for frame and build-plate expansion.
Ultimate Result: Flawless prints produced even when slight machine deformation has already occurred!
Machine Weight Matters: Our robust construction significantly minimizes deformation. The heavier the machine, the less distortion occurs!

With 8+ Years of R&D on the Chamber Temperature of FFF Industrial Printers

Our Solution: The Synergy of Two Patented Technologies—Intelligent Chamber Heating Algorithm & Z-Axis Magic Box Technology:

Intelligent Heating Algorithm: Predicts and counteracts irregular deformations caused by chamber temperature variations
Z Axis Magic Box: Maintains flawless surface finish via real-time thermal compensation for frame and build-plate expansion.
Ultimate Result: Flawless prints produced even when slight machine deformation has already occurred!
Machine Weight Matters: Our robust construction significantly minimizes deformation. The heavier the machine, the less distortion occurs!

Safety Door Protection System

Enterprise-Compliant Secure Printing Solution

This safety-certified door monitoring system automatically halts printing operations immediately upon door access detection, ensuring full compliance with enterprise safety protocols. The industrial-grade interlock mechanism prevents unauthorized operation exposure, eliminates mechanical hazards, and maintains full process accountability with encrypted operation logs.

Outage Restore & Filament Detection & Backup Mode

The printer automatically memorizes the current position and saves print data when power is interrupted. Upon restart, it resumes printing from the exact point of interruption, eliminating the need to restart entire prints and saving valuable time and material costs.

The printer also prevents failed prints by pausing and alerting you when the filament runs out, allowing you to replace the spool and continue printing without losing progress.

Backup Mode: If the filament in the main nozzle (No. 1) is exhausted, the printer automatically switches to the secondary nozzle (No. 2) to continue printing, ensuring uninterrupted production even during filament changes.

Magnetic Suction Platform

Proprietary magnetic platform, large, easily removable, and heat-resistant over 100°C, and won’t demagnetize over time.

For oversized models, it is easy to detach them quickly and the bottom of the model is flat. Convenient to all operators.

Linear Rail and Servo Motors

When it reaches to 1000mm+ length, small rail have big deflection. The D600 Pro3 HS uses heavy-duty linear rails and servo motors to ensure smooth and precise movement even at high speeds without compromising the precision and reliability required for massive prints.

True External Air Cooling

Medical-Grade Cooling Pump

Eddy Current Sensor Protection

True Air Model Cooling

Ultra-Quiet & Reliable: Equipped with a medical-grade pump, it delivers powerful, constant air pressure with minimal noise. Engineered for 24/7 operation, it ensures a quiet and stable workflow for professional environments.

Filament Dry Room

Our 3D printer features an integrated filament drying compartment, which maintains a controllable temperature environment of 0-70°C. Designed to prevent moisture absorption in hygroscopic materials such as nylon, PC, PA-CF, PET-CF, It eliminates printing defects like bubbling and stringing, ensuring consistent, high-quality output throughout the printing process.

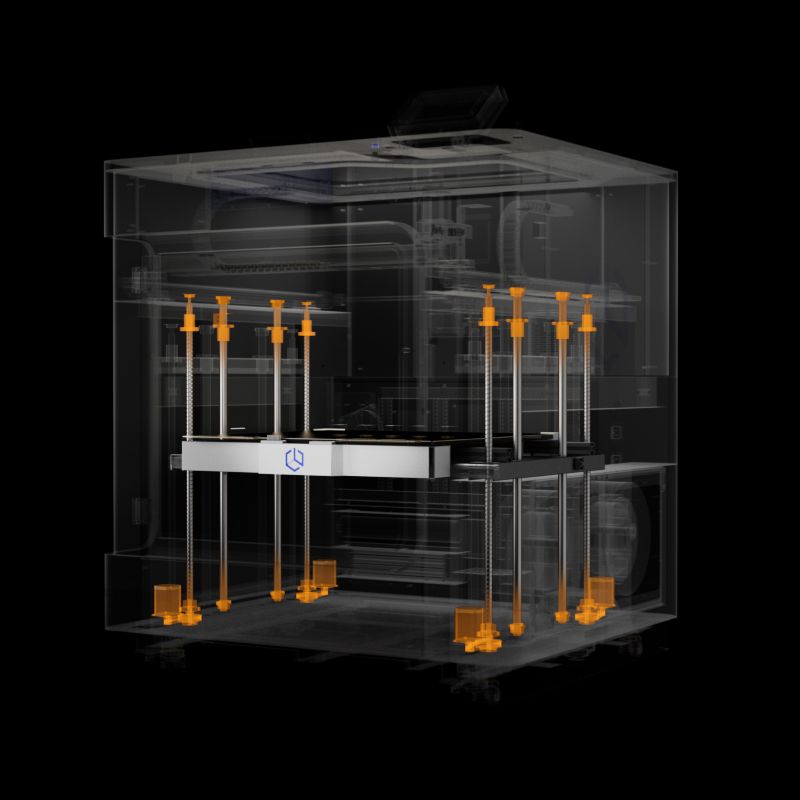

Independent Quad-Z Axis

Quad-Z Auto-Leveling

Superior Load Capacity & Stability

Anti-Tilt & Torque Correction

Superior Layer Consistency

Eliminate Manual Leveling for Absolute Flatness: The independent four-motor drive allows for individual height compensation at each corner of the platform. The system automatically detects and fine-tunes the vertical height of every corner to ensure extreme parallelism between the build plate and the gantry, completely solving first-layer adhesion issues for large-scale prints.

Ultra Air Filter System / 99.995% Adsorption

Our advanced air purification system employs a dual-filter design: an initial HEPA filter captures fine particles, while an activated carbon filter absorbs volatile organic compounds (VOCs) and odors. This ensures a clean and safe printing environment, protecting both the operator and the printed parts from harmful emissions.

WIFI, LAN, Internet, APP Control

In addition to cloud connectivity, CreatBot also supports local area network mode and physical connection operation. You can control the printer, send sliced files, and update firmware without an internet connection.

Completely Offline

Printer Control

File Sending

Firmware Update

Completely Offline

Printer Control

File Sending

Firmware Update

Z magic box: Perfect Z surface

For tall Z distance 3D printing devices, the texture of the Z-axis surface texture will deteriorate as the model height increases. Our Z-axis magic box technology can greatly reduce or even eliminate the Z-surface texture of tall models, ensuring that the surface quality of the model remains smooth and consistent.

Camera Control Technology

Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.

Technical Specs

* Note: Red text highlights upgraded features for the HS model.

Printing
Print Technology	FDM
Build Volume	Single extrusion:620 x 620 x 620mm Dual extrusion:565 x 620 x 620mm
Number of Nozzles	Double
Auto rising extruders	Yes
Min layer height	0.05mm
Filament Diameter	1.75mm
Filament Compatibility:	PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, etc
Nozzle Diameter	0.6mm (0.3, 0.4, 0.6, 0.8,1.0mm)
Print File Type	GCODE

Temperature
Max. Nozzle Temperature	420°C
Max. Bed Temperature	120°C
Max. Chamber Temperature	80°C
Filaments Drying Temperature	0-70°C (Timed)

Speed
Max Print speed	300mm/s
Flow Rate	90 mm³/s

Electrical
Power Requirements	240V, 50-60Hz
Rated Power	Printer: 2500W, Chamber: 3000W
Screen	7 inch touch screen
Connectivity	USB/U disk/WiFi/LAN

Software
Software Bundle	CreatWare, OrcaSlicer, Cura,Slice 3r
Supported File Types	STL, OBJ, AMF
Operating Systems	Windows ALL / Mac OS

Special Function
Air filter	HEPA+Carbon
Filament Detection	Pause Printing
Firmware	Klipper - High Speed
Camera Control	Camera Remote Monitoring
Dual Nozzle Auto-Resume Printing	Yes
Bed Leveling Technology	Eddy Current Leveling
XY Offset Technology	HD Camera Dual Nozzle Offset
Z Offset Technology	Dual Photoelectric Sensor
Nozzle Shutter Technology	Dual Nozzle Shutter
Door Opening Detection	Safety Door Lock
Chamber Insulation	Internal Insulation Cotton
External Air Cooling	Yes

Mechanical
Build Plate	Aviation Aluminum Plates
Build Plate Leveling	Automatic
Extruder	Smart Dual Extruders
Auto-Raising Extruders	Yes
X/Y Positioning Precision	0.011 mm
Z Positioning Precision	0.0025 mm
Z-Axis Structure	Independent Quad-Z Axis

Size & Weight
Product Dimensions & Weight	1150 x 950 x 1250mm 250kg
Packing Size & Weight	1175 x 1015 x 1405mm 290kg
